Search › Compare › CV10 × CV11
CV10
Toyota CAMRY-VISTA-AURION — 46 of 5,724 shared
CV11
Toyota CAMRY-VISTA-AURION — 46 of 5,643 shared

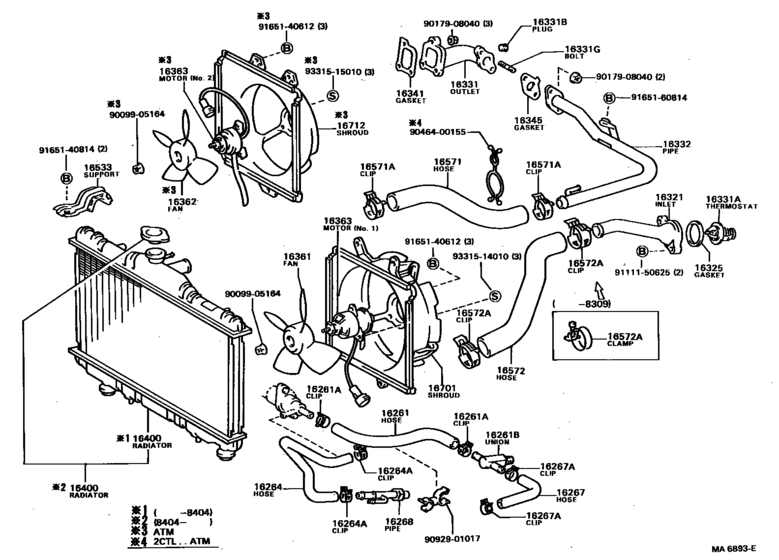

Radiator & Water Outlet ([08.1983 - ] (8308- )1CTL,2CTL) 46 / 54
| # | OEM | CV10 | CV11 |
|---|---|---|---|
| 16261 | 90467-15004 | Clip(For Ventilation Hose No.2) | Clip(For Ventilation Hose No.2) |
| 16261 | 90404-53050 | Union(For Water By-Pass Hose) | Union(For Water By-Pass Hose) |
| 16267 | 16267-64010 | Hose, Water By-Pass, No.3 | Hose, Water By-Pass, No.3 |
| 16267 | 90467-11009 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 16267 | 96135-51100 | Clamp Or Clip(For Turbo Oil Outlet Hose) | Clamp Or Clip(For Turbo Oil Outlet Hose) |
| 16321 | 16321-64020 | Inlet, Water | Inlet, Water |
| 16325 | 16325-63010 | Gasket, Water Inlet Housing, No.1 | Gasket, Water Inlet Housing, No.1 |
| 16325 | 16325-63011 | Gasket, Water Inlet Housing, No.1 | Gasket, Water Inlet Housing, No.1 |
| 16331 | 16331-64030 | Outlet, Water | Outlet, Water |
| 16331 | 90916-03046 | Thermostat | Thermostat |
| 16331 | 90344-53011 | Plug, W/head Taper Screw, No.1 | Plug, W/head Taper Screw, No.1 |
| 16331 | 92122-60816 | Bolt, Stud(For Water Pump Set) | Bolt, Stud(For Water Pump Set) |
| 16332 | 16332-64010 | Pipe, Water Outlet, No.1 | Pipe, Water Outlet, No.1 |
| 16341 | 16341-64010 | Gasket, Water Outlet | Gasket, Water Outlet |
| 16341 | 16341-64021 | Gasket, Water Outlet | Gasket, Water Outlet |
| 16345 | 16345-64020 | Gasket, Water Outlet Pipe | Gasket, Water Outlet Pipe |
| 16345 | 16345-64041 | Gasket, Water Outlet Pipe | Gasket, Water Outlet Pipe |
| 16361 | 16361-64020 | Fan | Fan |
| 16362 | 88453-32010 | Fan, No.2 | Fan, No.2 |
| 16363 | 16363-64030 | Motor, Cooling Fan | Motor, Cooling Fan |
| 16363 | 16363-64020 | Motor, Cooling Fan | Motor, Cooling Fan |
| 16400 | 16400-64120 | Radiator Assy | Radiator Assy |
| 16400 | 16400-64110 | Radiator Assy | Radiator Assy |
| 16533 | 16533-64021 | Support, Radiator, Upper | Support, Radiator, Upper |
| 16571 | 16571-64070 | Hose, Radiator, Inlet | Hose, Radiator, Inlet |
| 16571 | 90467-33002 | Clamp Or Clip, Hose(For Radiator Inlet) | Clamp Or Clip, Hose(For Radiator Inlet) |
| 16571 | 90467-34004 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 16572 | 16572-64060 | Hose, Radiator, Outlet | Hose, Radiator, Outlet |
| 16572 | 90467-37001 | Clip(For Water Inlet Hose) | Clip(For Water Inlet Hose) |
| 16572 | 90467-37003 | Clamp Or Clip, Hose(For Radiator Inlet) | Clamp Or Clip, Hose(For Radiator Inlet) |
| 16701 | 16711-64070 | Shroud Sub-Assy, Fan | Shroud Sub-Assy, Fan |
| 16712 | 16712-64040 | Shroud, Fan, No.2 | Shroud, Fan, No.2 |
| 9009905164 | 90099-05164 | Nut | Nut |
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 9046400155 | 90464-00155 | New Genuine Part | New Genuine Part |
| 9092901017 | 90929-01017 | New Genuine Part | New Genuine Part |
| 9111150625 | 91111-50625 | Bolt, Hexagon | Bolt, Hexagon |
| 9111150625 | 91611-60628 | Bolt, Hexagon | Bolt, Hexagon |
| 9165140612 | 91651-40612 | BOLT | BOLT |
| 9165140612 | 90080-11225 | New Genuine Part | New Genuine Part |
| 9165140814 | 91651-40814 | BOLT | BOLT |
| 9165140814 | 90080-11228 | New Genuine Part | New Genuine Part |
| 9165160814 | 91651-60814 | Clamp Or Clip, Hose(for Radiator Outlet No.1) | Clamp Or Clip, Hose(for Radiator Outlet No.1) |
| 9165160814 | 91651-B0814 | Bolt with washer | Bolt with washer |
| 9331514010 | 93315-14010 | SCREW | SCREW |
| 9331515010 | 93315-15010 | New Genuine Part | New Genuine Part |
| # | OEM | CV10 | CV11 |
|---|---|---|---|
| 16267 | 16267-64010 | Hose, Water By-Pass, No.3 | Hose, Water By-Pass, No.3 |
| 16321 | 16321-64020 | Inlet, Water | Inlet, Water |
| 16325 | 16325-63010 | Gasket, Water Inlet Housing, No.1 | Gasket, Water Inlet Housing, No.1 |
| 16325 | 16325-63011 | Gasket, Water Inlet Housing, No.1 | Gasket, Water Inlet Housing, No.1 |
| 16331 | 16331-64030 | Outlet, Water | Outlet, Water |
| 16332 | 16332-64010 | Pipe, Water Outlet, No.1 | Pipe, Water Outlet, No.1 |
| 16341 | 16341-64010 | Gasket, Water Outlet | Gasket, Water Outlet |
| 16341 | 16341-64021 | Gasket, Water Outlet | Gasket, Water Outlet |
| 16345 | 16345-64020 | Gasket, Water Outlet Pipe | Gasket, Water Outlet Pipe |
| 16345 | 16345-64041 | Gasket, Water Outlet Pipe | Gasket, Water Outlet Pipe |
| 16361 | 16361-64020 | Fan | Fan |
| 16363 | 16363-64020 | Motor, Cooling Fan | Motor, Cooling Fan |
| 16363 | 16363-64030 | Motor, Cooling Fan | Motor, Cooling Fan |
| 16400 | 16400-64110 | Radiator Assy | Radiator Assy |
| 16400 | 16400-64120 | Radiator Assy | Radiator Assy |
| 16533 | 16533-64021 | Support, Radiator, Upper | Support, Radiator, Upper |
| 16571 | 16571-64070 | Hose, Radiator, Inlet | Hose, Radiator, Inlet |
| 16572 | 16572-64060 | Hose, Radiator, Outlet | Hose, Radiator, Outlet |
| 16701 | 16711-64070 | Shroud Sub-Assy, Fan | Shroud Sub-Assy, Fan |
| 16712 | 16712-64040 | Shroud, Fan, No.2 | Shroud, Fan, No.2 |
| 16362 | 88453-32010 | Fan, No.2 | Fan, No.2 |
| 9165140612 | 90080-11225 | New Genuine Part | New Genuine Part |
| 9165140814 | 90080-11228 | New Genuine Part | New Genuine Part |
| 9009905164 | 90099-05164 | Nut | Nut |
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 16331 | 90344-53011 | Plug, W/head Taper Screw, No.1 | Plug, W/head Taper Screw, No.1 |
| 16261 | 90404-53050 | Union(For Water By-Pass Hose) | Union(For Water By-Pass Hose) |
| 9046400155 | 90464-00155 | New Genuine Part | New Genuine Part |
| 16267 | 90467-11009 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 16261 | 90467-15004 | Clip(For Ventilation Hose No.2) | Clip(For Ventilation Hose No.2) |
| 16571 | 90467-33002 | Clamp Or Clip, Hose(For Radiator Inlet) | Clamp Or Clip, Hose(For Radiator Inlet) |
| 16571 | 90467-34004 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 16572 | 90467-37001 | Clip(For Water Inlet Hose) | Clip(For Water Inlet Hose) |
| 16572 | 90467-37003 | Clamp Or Clip, Hose(For Radiator Inlet) | Clamp Or Clip, Hose(For Radiator Inlet) |
| 16331 | 90916-03046 | Thermostat | Thermostat |
| 9092901017 | 90929-01017 | New Genuine Part | New Genuine Part |
| 9111150625 | 91111-50625 | Bolt, Hexagon | Bolt, Hexagon |
| 9111150625 | 91611-60628 | Bolt, Hexagon | Bolt, Hexagon |
| 9165140612 | 91651-40612 | BOLT | BOLT |
| 9165140814 | 91651-40814 | BOLT | BOLT |
| 9165160814 | 91651-60814 | Clamp Or Clip, Hose(for Radiator Outlet No.1) | Clamp Or Clip, Hose(for Radiator Outlet No.1) |
| 9165640818 | 91651-B0814 | Bolt with washer | Bolt with washer |
| 16331 | 92122-60816 | Bolt, Stud(For Water Pump Set) | Bolt, Stud(For Water Pump Set) |
| 9331514010 | 93315-14010 | SCREW | SCREW |
| 9015950022 | 93315-15010 | New Genuine Part | New Genuine Part |
| 16267 | 96135-51100 | Clamp Or Clip(For Turbo Oil Outlet Hose) | Clamp Or Clip(For Turbo Oil Outlet Hose) |
