Search › Compare › CV10 × CV11
CV10
Toyota CAMRY-VISTA-AURION — 43 of 5,724 shared
CV11
Toyota CAMRY-VISTA-AURION — 43 of 5,643 shared

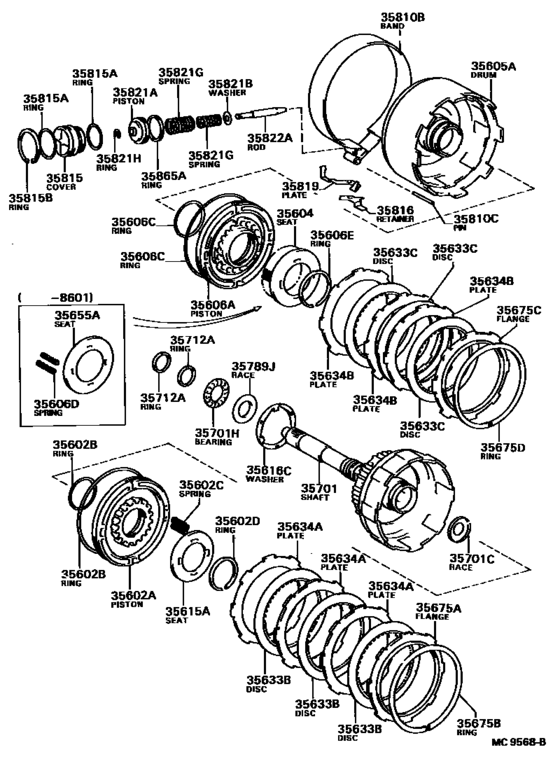

Brake Band & Multiple Disc Clutch (Atm) ([10.1982 - ] (8210- )4FC) 43 / 50
| # | OEM | CV10 | CV11 |
|---|---|---|---|
| 35602 | 35602-32020 | Piston Sub-Assy, Forward Clutch | Piston Sub-Assy, Forward Clutch |
| 35602 | 35602-32021 | Piston Sub-Assy, Forward Clutch | Piston Sub-Assy, Forward Clutch |
| 35602 | 90301-46002 | Ring, O (For Forward Clutch Piston) | Ring, O (For Forward Clutch Piston) |
| 35602 | 90301-99016 | Ring, O (For Overdrive Direct Clutch Piston) | Ring, O (For Overdrive Direct Clutch Piston) |
| 35602 | 90520-44001 | Ring, Shaft Snap(For Forward Clutch Piston Return Spring) | Ring, Shaft Snap(For Forward Clutch Piston Return Spring) |
| 35605 | 35370-20H00 | Shaft Assy, Stator | Shaft Assy, Stator |
| 35606 | 35606-32020 | Piston Sub-Assy, Direct Clutch | Piston Sub-Assy, Direct Clutch |
| 35606 | 35606-20010 | Piston Sub-Assy, Direct Clutch | Piston Sub-Assy, Direct Clutch |
| 35606 | 90301-57188 | Ring, O (For Underdrive Clutch Piston) | Ring, O (For Underdrive Clutch Piston) |
| 35606 | 90301-56007 | Ring, O (For Underdrive Clutch Piston) | Ring, O (For Underdrive Clutch Piston) |
| 35606 | 90501-12051 | Spring, Compression (For Direct Clutch Piston Return) | Spring, Compression (For Direct Clutch Piston Return) |
| 35606 | 90520-52002 | Ring, Shaft Snap (For Direct Clutch Piston Return Spring) | Ring, Shaft Snap (For Direct Clutch Piston Return Spring) |
| 35615 | 35615-32010 | Seat, Forward Clutch Piston Return Spring | Seat, Forward Clutch Piston Return Spring |
| 35616 | 35616-32021 | Washer, Clutch Drum Thrust (For Direct Clutch Drum) | Washer, Clutch Drum Thrust (For Direct Clutch Drum) |
| 35633 | 35633-32020 | Disc, Clutch (For Forward Multiple Disc Clutch) | Disc, Clutch (For Forward Multiple Disc Clutch) |
| 35633 | 35633-32021 | Disc, Clutch (For Direct Multiple Disc Clutch) | Disc, Clutch (For Direct Multiple Disc Clutch) |
| 35634 | 35634-32010 | Plate, Clutch (For Forward Multiple Disc Clutch) | Plate, Clutch (For Forward Multiple Disc Clutch) |
| 35655 | 35655-32010 | Seat, Direct Clutch Piston Return Spring | Seat, Direct Clutch Piston Return Spring |
| 35675 | 35675-32010 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35675 | 35675-12050 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35675 | 35675-32020 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35675 | 35675-32061 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35675 | 90521-99001 | Ring, Hole Snap, No.2 (For Overdrive) | Ring, Hole Snap, No.2 (For Overdrive) |
| 35701 | 35789-32040 | Race, Thrust Bearing (For Input Shaft Rear) | Race, Thrust Bearing (For Input Shaft Rear) |
| 35701 | 90374-28005 | Bearing, Thrust Needle Roller (For Input Shaft) | Bearing, Thrust Needle Roller (For Input Shaft) |
| 35712 | 35712-32010 | Ring, Input Shaft Oil Seal | Ring, Input Shaft Oil Seal |
| 35789 | 35789-32010 | Race, Thrust Bearing (For Input Shaft Front) | Race, Thrust Bearing (For Input Shaft Front) |
| 35810 | 35810-32020 | Band Assy, 2Nd Coast Brake | Band Assy, 2Nd Coast Brake |
| 35810 | 90250-07001 | Pin (For 2Nd Coast Brake Band) | Pin (For 2Nd Coast Brake Band) |
| 35815 | 35815-32010 | Cover, 2Nd Coast Brake | Cover, 2Nd Coast Brake |
| 35815 | 90301-41002 | Ring, O (For 2Nd Coast Brake Cover) | Ring, O (For 2Nd Coast Brake Cover) |
| 35815 | 90521-53001 | Ring, Hole Snap (For 2Nd Coast Brake Cover) | Ring, Hole Snap (For 2Nd Coast Brake Cover) |
| 35819 | 35819-32010 | Plate, 2Nd Coast Brake Band Guide | Plate, 2Nd Coast Brake Band Guide |
| 35819 | 35816-12010 | Retainer, Brake Band Guide Plate | Retainer, Brake Band Guide Plate |
| 35819 | 35819-12010 | Plate, 2Nd Coast Brake Band Guide | Plate, 2Nd Coast Brake Band Guide |
| 35821 | 35821-32010 | Piston, 2Nd Coast Brake | Piston, 2Nd Coast Brake |
| 35821 | 90201-06557 | Washer, Plate (For 2Nd Coast Brake Piston) | Washer, Plate (For 2Nd Coast Brake Piston) |
| 35821 | 90501-20051 | Spring, Compression (For 2Nd Coast Brake Piston) | Spring, Compression (For 2Nd Coast Brake Piston) |
| 35821 | 90501-26024 | Spring, Compression (For 2Nd Coast Brake Piston) | Spring, Compression (For 2Nd Coast Brake Piston) |
| 35821 | 96160-00500 | Ring, E(For Over Center Lever) | Ring, E(For Over Center Lever) |
| 35822 | 35822-32010 | Rod, 2Nd Coast Brake Piston | Rod, 2Nd Coast Brake Piston |
| 35822 | 35822-32020 | Rod, 2Nd Coast Brake Piston | Rod, 2Nd Coast Brake Piston |
| 35865 | 35865-32010 | Ring, 2Nd Coast Brake Piston Oil Seal | Ring, 2Nd Coast Brake Piston Oil Seal |
| # | OEM | CV10 | CV11 |
|---|---|---|---|
| 35605 | 35370-20H00 | Shaft Assy, Stator | Shaft Assy, Stator |
| 35602 | 35602-32020 | Piston Sub-Assy, Forward Clutch | Piston Sub-Assy, Forward Clutch |
| 35602 | 35602-32021 | Piston Sub-Assy, Forward Clutch | Piston Sub-Assy, Forward Clutch |
| 35606 | 35606-20010 | Piston Sub-Assy, Direct Clutch | Piston Sub-Assy, Direct Clutch |
| 35606 | 35606-32020 | Piston Sub-Assy, Direct Clutch | Piston Sub-Assy, Direct Clutch |
| 35615 | 35615-32010 | Seat, Forward Clutch Piston Return Spring | Seat, Forward Clutch Piston Return Spring |
| 35616 | 35616-32021 | Washer, Clutch Drum Thrust (For Direct Clutch Drum) | Washer, Clutch Drum Thrust (For Direct Clutch Drum) |
| 35633 | 35633-32020 | Disc, Clutch (For Forward Multiple Disc Clutch) | Disc, Clutch (For Forward Multiple Disc Clutch) |
| 35633 | 35633-32021 | Disc, Clutch (For Direct Multiple Disc Clutch) | Disc, Clutch (For Direct Multiple Disc Clutch) |
| 35634 | 35634-32010 | Plate, Clutch (For Forward Multiple Disc Clutch) | Plate, Clutch (For Forward Multiple Disc Clutch) |
| 35655 | 35655-32010 | Seat, Direct Clutch Piston Return Spring | Seat, Direct Clutch Piston Return Spring |
| 35675 | 35675-12050 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35675 | 35675-32010 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35675 | 35675-32020 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35675 | 35675-32061 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35712 | 35712-32010 | Ring, Input Shaft Oil Seal | Ring, Input Shaft Oil Seal |
| 35789 | 35789-32010 | Race, Thrust Bearing (For Input Shaft Front) | Race, Thrust Bearing (For Input Shaft Front) |
| 35701 | 35789-32040 | Race, Thrust Bearing (For Input Shaft Rear) | Race, Thrust Bearing (For Input Shaft Rear) |
| 35810 | 35810-32020 | Band Assy, 2Nd Coast Brake | Band Assy, 2Nd Coast Brake |
| 35815 | 35815-32010 | Cover, 2Nd Coast Brake | Cover, 2Nd Coast Brake |
| 35819 | 35816-12010 | Retainer, Brake Band Guide Plate | Retainer, Brake Band Guide Plate |
| 35819 | 35819-12010 | Plate, 2Nd Coast Brake Band Guide | Plate, 2Nd Coast Brake Band Guide |
| 35819 | 35819-32010 | Plate, 2Nd Coast Brake Band Guide | Plate, 2Nd Coast Brake Band Guide |
| 35821 | 35821-32010 | Piston, 2Nd Coast Brake | Piston, 2Nd Coast Brake |
| 35822 | 35822-32010 | Rod, 2Nd Coast Brake Piston | Rod, 2Nd Coast Brake Piston |
| 35822 | 35822-32020 | Rod, 2Nd Coast Brake Piston | Rod, 2Nd Coast Brake Piston |
| 35865 | 35865-32010 | Ring, 2Nd Coast Brake Piston Oil Seal | Ring, 2Nd Coast Brake Piston Oil Seal |
| 35821 | 90201-06557 | Washer, Plate (For 2Nd Coast Brake Piston) | Washer, Plate (For 2Nd Coast Brake Piston) |
| 35810 | 90250-07001 | Pin (For 2Nd Coast Brake Band) | Pin (For 2Nd Coast Brake Band) |
| 35815 | 90301-41002 | Ring, O (For 2Nd Coast Brake Cover) | Ring, O (For 2Nd Coast Brake Cover) |
| 35602 | 90301-46002 | Ring, O (For Forward Clutch Piston) | Ring, O (For Forward Clutch Piston) |
| 35606 | 90301-56007 | Ring, O (For Underdrive Clutch Piston) | Ring, O (For Underdrive Clutch Piston) |
| 35606 | 90301-57188 | Ring, O (For Underdrive Clutch Piston) | Ring, O (For Underdrive Clutch Piston) |
| 35602 | 90301-99016 | Ring, O (For Overdrive Direct Clutch Piston) | Ring, O (For Overdrive Direct Clutch Piston) |
| 35701 | 90374-28005 | Bearing, Thrust Needle Roller (For Input Shaft) | Bearing, Thrust Needle Roller (For Input Shaft) |
| 35606 | 90501-12051 | Spring, Compression (For Direct Clutch Piston Return) | Spring, Compression (For Direct Clutch Piston Return) |
| 35821 | 90501-20051 | Spring, Compression (For 2Nd Coast Brake Piston) | Spring, Compression (For 2Nd Coast Brake Piston) |
| 35821 | 90501-26024 | Spring, Compression (For 2Nd Coast Brake Piston) | Spring, Compression (For 2Nd Coast Brake Piston) |
| 35602 | 90520-44001 | Ring, Shaft Snap(For Forward Clutch Piston Return Spring) | Ring, Shaft Snap(For Forward Clutch Piston Return Spring) |
| 35606 | 90520-52002 | Ring, Shaft Snap (For Direct Clutch Piston Return Spring) | Ring, Shaft Snap (For Direct Clutch Piston Return Spring) |
| 35815 | 90521-53001 | Ring, Hole Snap (For 2Nd Coast Brake Cover) | Ring, Hole Snap (For 2Nd Coast Brake Cover) |
| 35675 | 90521-99001 | Ring, Hole Snap, No.2 (For Overdrive) | Ring, Hole Snap, No.2 (For Overdrive) |
| 35821 | 96160-00500 | Ring, E(For Over Center Lever) | Ring, E(For Over Center Lever) |
