Search › Compare › CT51S × HA21S
CT51S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 11 of 2,113 shared
HA21S
Suzuki ALTO-A-STAR-CELERIO — 11 of 2,068 shared

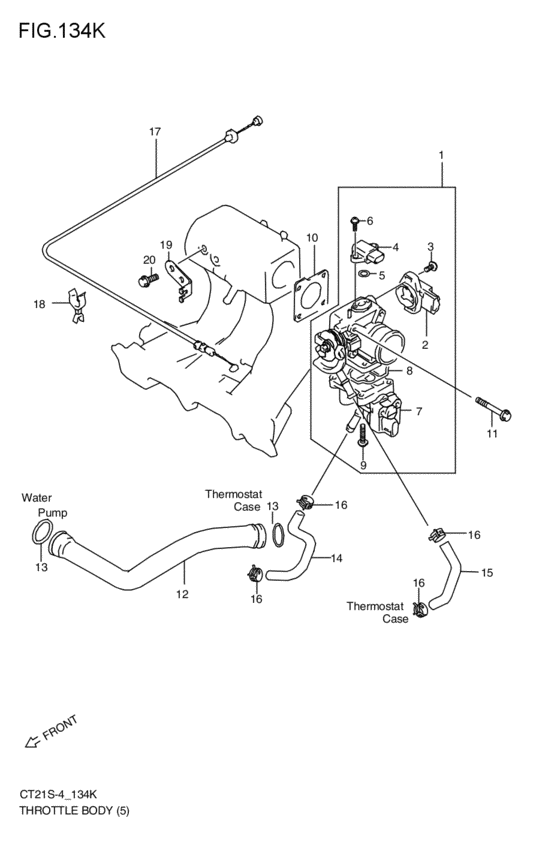

throttle body (199711カラ; K6A:4V:MT; 1997-11-01~1998-10-01) 11 / 28
| # | OEM | CT51S | HA21S |
|---|---|---|---|
| 10 | 13421-75F00-000 | GASKET,THROTTLE BODY | GASKET,THROTTLE BODY |
| 12 | 17830-73GVV-000 | パイプウォータ,インレット | パイプウォータ,インレット |
| 13 | 17849-53E00-000 | O-RING,WATER INLET PIPE - O ring, water inlet pipe | O-RING,WATER INLET PIPE - O ring, water inlet pipe |
| 14 | 09401-12410-000 | CLIP - Clip, filter outlet | CLIP - Clip, filter outlet |
| 15 | 09356-75141-600 | HOSE(7.5X14.5X600) | HOSE(7.5X14.5X600) |
| 16 | 09401-11415-000 | CLIP | CLIP |
| 18 | 09408-00079-000 | CLAMP | CLAMP |
| 19 | 15919-73B51-000 | GUIDE,ACCEL CABLE | GUIDE,ACCEL CABLE |
| 20 | 01550-06163-000 | Bolt | Bolt |
| 20 | 01550-0616B-000 | Bolt | Bolt |
| 20 | 01550-0616A-000 | Bolt | Bolt |
| # | OEM | CT51S | HA21S |
|---|---|---|---|
| 2 | 01550-06163-000 | Bolt | Bolt |
| 2 | 01550-0616A-000 | Bolt | Bolt |
| 2 | 01550-0616B-000 | Bolt | Bolt |
| 13 | 09356-75141-600 | HOSE(7.5X14.5X600) | HOSE(7.5X14.5X600) |
| 29 | 09401-11415-000 | CLIP | CLIP |
| 13 | 09401-12410-000 | CLIP - Clip, filter outlet | CLIP - Clip, filter outlet |
| 17 | 09408-00079-000 | CLAMP | CLAMP |
| 9 | 13421-75F00-000 | GASKET,THROTTLE BODY | GASKET,THROTTLE BODY |
| 18 | 15919-73B51-000 | GUIDE,ACCEL CABLE | GUIDE,ACCEL CABLE |
| 11 | 17830-73GVV-000 | パイプウォータ,インレット | パイプウォータ,インレット |
| 8 | 17849-53E00-000 | O-RING,WATER INLET PIPE - O ring, water inlet pipe | O-RING,WATER INLET PIPE - O ring, water inlet pipe |
