Search › Compare › CT51S × HA21S
CT51S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 28 of 2,113 shared
HA21S
Suzuki ALTO-A-STAR-CELERIO — 28 of 2,068 shared

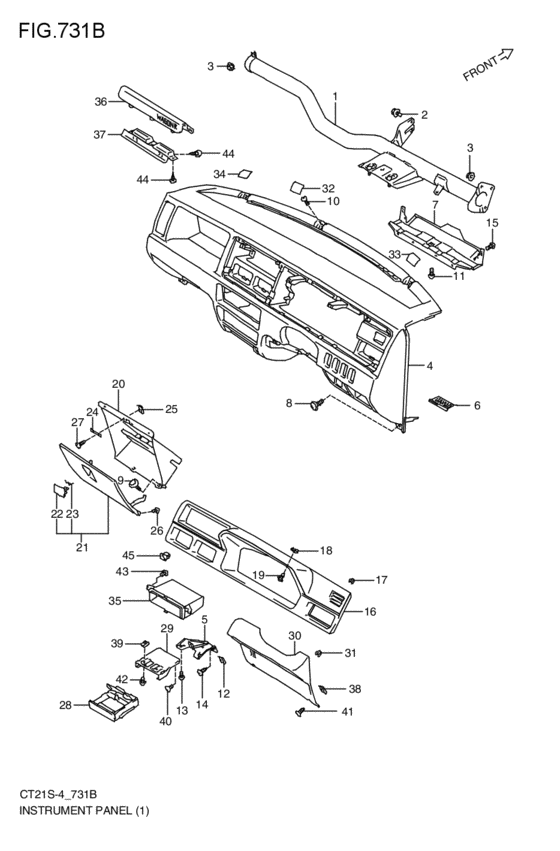

installment panel (RC,RG,RGS,FM,RX,RXL,FX,SL,FT,RV,RR,FR,RS; 1997-04-01~1998-10-01) 28 / 48
| # | OEM | CT51S | HA21S |
|---|---|---|---|
| 2 | 01550-08163-000 | Bolt, holder | Bolt, holder |
| 2 | 01550-0816B-000 | Bolt | Bolt |
| 2 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 3 | 08316-10083-000 | Nut | Nut |
| 3 | 08316-1008B-000 | NUT | NUT |
| 8 | 09136-06061-000 | SCREW(6X16) | SCREW(6X16) |
| 9 | 09136-06114-000 | SCREW(6X16) | SCREW(6X16) |
| 10 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 10 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 12 | 09148-05020-000 | NUT | NUT |
| 13 | 02142-05103-000 | Screw 5x10 | Screw 5x10 |
| 13 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 14 | 03142-05123-000 | Screw - Screw, belt cooling duct | Screw - Screw, belt cooling duct |
| 14 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 15 | 03541-05123-000 | Screw | Screw |
| 15 | 03541-0512B-000 | SCREW | SCREW |
| 17 | 09409-08325-000 | CLIP | CLIP |
| 18 | 09148-05004-000 | NUT | NUT |
| 18 | 09148-05013-000 | NUT | NUT |
| 22 | 73422-62D00-5ES | KNOB,GLOVE BOX LID | KNOB,GLOVE BOX LID |
| 23 | 73423-62D00-000 | SPRING,GLOVE BOX LID | SPRING,GLOVE BOX LID |
| 25 | 09148-04024-000 | NUT | NUT |
| 26 | 03142-04123-000 | スクリュ | スクリュ |
| 26 | 03142-0412B-000 | SCREW | SCREW |
| 27 | 03142-04163-000 | Screw - Screw, oil filler lid bracket | Screw - Screw, oil filler lid bracket |
| 27 | 03141-0416A-000 | SCREW | SCREW |
| 41 | 03142-05163-000 | Screw | Screw |
| 41 | 03141-0516A-000 | SCREW | SCREW |
| # | OEM | CT51S | HA21S |
|---|---|---|---|
| 2 | 01550-08163-000 | Bolt, holder | Bolt, holder |
| 2 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 2 | 01550-0816B-000 | Bolt | Bolt |
| 13 | 02142-05103-000 | Screw 5x10 | Screw 5x10 |
| 13 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 29 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 29 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 27 | 03141-0416A-000 | SCREW | SCREW |
| 43 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 6 | 03141-0516A-000 | SCREW | SCREW |
| 26 | 03142-04123-000 | スクリュ | スクリュ |
| 26 | 03142-0412B-000 | SCREW | SCREW |
| 27 | 03142-04163-000 | Screw - Screw, oil filler lid bracket | Screw - Screw, oil filler lid bracket |
| 43 | 03142-05123-000 | Screw - Screw, belt cooling duct | Screw - Screw, belt cooling duct |
| 41 | 03142-05163-000 | Screw | Screw |
| 42 | 03541-05123-000 | Screw | Screw |
| 42 | 03541-0512B-000 | SCREW | SCREW |
| 11 | 08316-10083-000 | Nut | Nut |
| 11 | 08316-1008B-000 | NUT | NUT |
| 8 | 09136-06061-000 | SCREW(6X16) | SCREW(6X16) |
| 9 | 09136-06114-000 | SCREW(6X16) | SCREW(6X16) |
| 25 | 09148-04024-000 | NUT | NUT |
| 18 | 09148-05004-000 | NUT | NUT |
| 18 | 09148-05013-000 | NUT | NUT |
| 12 | 09148-05020-000 | NUT | NUT |
| 17 | 09409-08325-000 | CLIP | CLIP |
| 22 | 73422-62D00-5ES | KNOB,GLOVE BOX LID | KNOB,GLOVE BOX LID |
| 23 | 73423-62D00-000 | SPRING,GLOVE BOX LID | SPRING,GLOVE BOX LID |
