Search › Compare › CT21S × CV21S
CT21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 26 of 2,056 shared
CV21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 26 of 2,298 shared

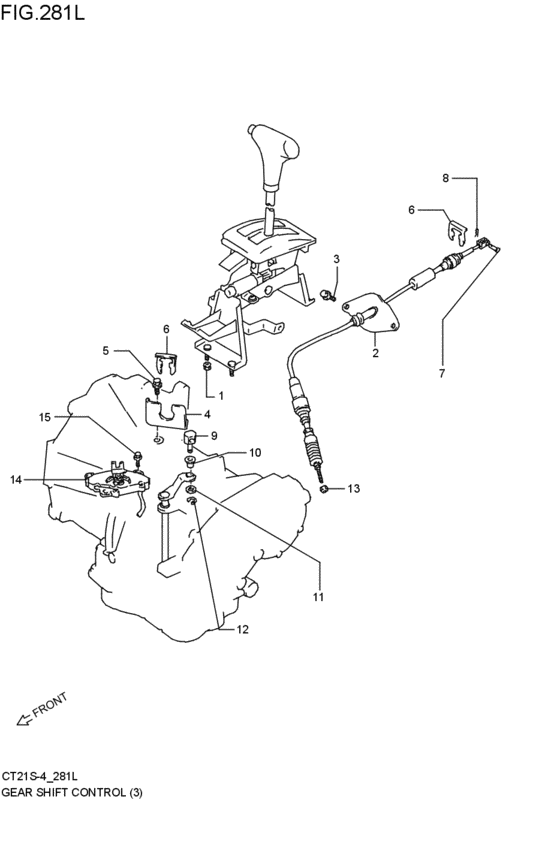

gearlever control (JATCO; 3AT:TURBO:2WD:(SC,MC,FTC); 1998-01-01~1998-10-01) 26 / 26
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 1 | 08316-10083-000 | Nut | Nut |
| 1 | 08316-1008B-000 | NUT | NUT |
| 2 | 28210-61D01-000 | CABLE ASSY,SELECT | CABLE ASSY,SELECT |
| 3 | 01550-06163-000 | Bolt | Bolt |
| 3 | 01550-0616B-000 | Bolt | Bolt |
| 3 | 01550-0616A-000 | Bolt | Bolt |
| 4 | 28221-61D00-000 | ブラケット,セレクトケーブル | ブラケット,セレクトケーブル |
| 5 | 28223-61D00-000 | Bolt - Bolt, selector cable bracket | Bolt - Bolt, selector cable bracket |
| 6 | 09383-19001-000 | E RING - Clip | E RING - Clip |
| 7 | 09200-06046-000 | PIN | PIN |
| 8 | 09385-06004-000 | スナップピン | スナップピン |
| 8 | 09385-06001-000 | CLIP | CLIP |
| 9 | 28291-78233-000 | JOINT,CABLE | JOINT,CABLE |
| 10 | 09305-08012-000 | BUSH | BUSH |
| 11 | 08322-01083-000 | WASHER | WASHER |
| 11 | 08322-0108B-000 | WASHER | WASHER |
| 11 | 08322-0108A-000 | WASHER | WASHER |
| 12 | 08332-11063-000 | E ring | E ring |
| 12 | 08332-1106B-000 | E RING - Circlip | E RING - Circlip |
| 12 | 08332-1106A-000 | E RING - E ring, pinion | E RING - E ring, pinion |
| 13 | 08310-00063-000 | Nut | Nut |
| 13 | 08310-0006B-000 | NUT - Nut gear shift link rod | NUT - Nut gear shift link rod |
| 13 | 08310-0006A-000 | NUT | NUT |
| 14 | 37720-71B20-000 | SWITCH ASSY,SHIFT | SWITCH ASSY,SHIFT |
| 15 | 01550-05123-000 | Screw - Bolt | Screw - Bolt |
| 15 | 01550-0512B-000 | Bolt | Bolt |
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 4 | 01550-05123-000 | Screw - Bolt | Screw - Bolt |
| 4 | 01550-0512B-000 | Bolt | Bolt |
| 3 | 01550-06163-000 | Bolt | Bolt |
| 3 | 01550-0616A-000 | Bolt | Bolt |
| 3 | 01550-0616B-000 | Bolt | Bolt |
| 13 | 08310-00063-000 | Nut | Nut |
| 13 | 08310-0006A-000 | NUT | NUT |
| 13 | 08310-0006B-000 | NUT - Nut gear shift link rod | NUT - Nut gear shift link rod |
| 2 | 08316-10083-000 | Nut | Nut |
| 2 | 08316-1008B-000 | NUT | NUT |
| 11 | 08322-01083-000 | WASHER | WASHER |
| 11 | 08322-0108A-000 | WASHER | WASHER |
| 11 | 08322-0108B-000 | WASHER | WASHER |
| 12 | 08332-11063-000 | E ring | E ring |
| 12 | 08332-1106A-000 | E RING - E ring, pinion | E RING - E ring, pinion |
| 12 | 08332-1106B-000 | E RING - Circlip | E RING - Circlip |
| 7 | 09200-06046-000 | PIN | PIN |
| 10 | 09305-08012-000 | BUSH | BUSH |
| 6 | 09383-19001-000 | E RING - Clip | E RING - Clip |
| 8 | 09385-06001-000 | CLIP | CLIP |
| 8 | 09385-06004-000 | スナップピン | スナップピン |
| 2 | 28210-61D01-000 | CABLE ASSY,SELECT | CABLE ASSY,SELECT |
| 4 | 28221-61D00-000 | ブラケット,セレクトケーブル | ブラケット,セレクトケーブル |
| 5 | 28223-61D00-000 | Bolt - Bolt, selector cable bracket | Bolt - Bolt, selector cable bracket |
| 9 | 28291-78233-000 | JOINT,CABLE | JOINT,CABLE |
| 14 | 37720-71B20-000 | SWITCH ASSY,SHIFT | SWITCH ASSY,SHIFT |
