Search › Compare › CT21S × CV21S
CT21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 10 of 2,056 shared
CV21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 10 of 2,298 shared

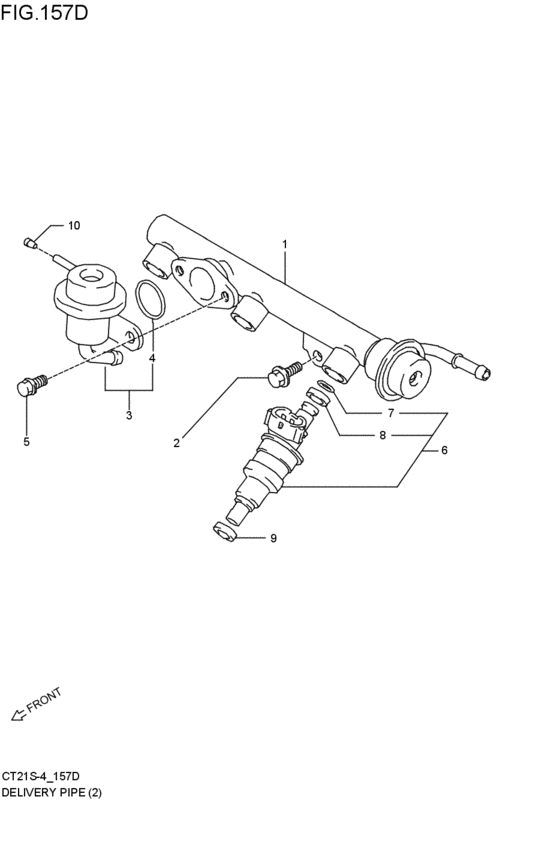

delivery pipe / fuel injector (F6A:TURBO; 1997-04-01~1998-10-01) 10 / 10
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 1 | 15730-52E02-000 | パイプ,デリバリ | パイプ,デリバリ |
| 2 | 01550-06123-000 | Bolt | Bolt |
| 2 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 2 | 01550-0612A-000 | Bolt | Bolt |
| 3 | 15610-72G00-000 | REGULATOR ASSY,FUEL PRESSURE | REGULATOR ASSY,FUEL PRESSURE |
| 4 | 15710-09300-000 | O-RING | O-RING |
| 6 | 15710-83C11-000 | インジェクタアッシ,フューエル | インジェクタアッシ,フューエル |
| 8 | 15720-09300-000 | GROMMET | GROMMET |
| 9 | 09320-08062-000 | CUSHION | CUSHION |
| 10 | 15616-64D00-000 | JET | JET |
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 2 | 01550-06123-000 | Bolt | Bolt |
| 8 | 01550-0612A-000 | Bolt | Bolt |
| 8 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 9 | 09320-08062-000 | CUSHION | CUSHION |
| 3 | 15610-72G00-000 | REGULATOR ASSY,FUEL PRESSURE | REGULATOR ASSY,FUEL PRESSURE |
| 10 | 15616-64D00-000 | JET | JET |
| 4 | 15710-09300-000 | O-RING | O-RING |
| 6 | 15710-83C11-000 | インジェクタアッシ,フューエル | インジェクタアッシ,フューエル |
| 8 | 15720-09300-000 | GROMMET | GROMMET |
| 1 | 15730-52E02-000 | パイプ,デリバリ | パイプ,デリバリ |
