Search › Compare › CT21S × CV21S
CT21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 21 of 2,056 shared
CV21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 21 of 2,298 shared

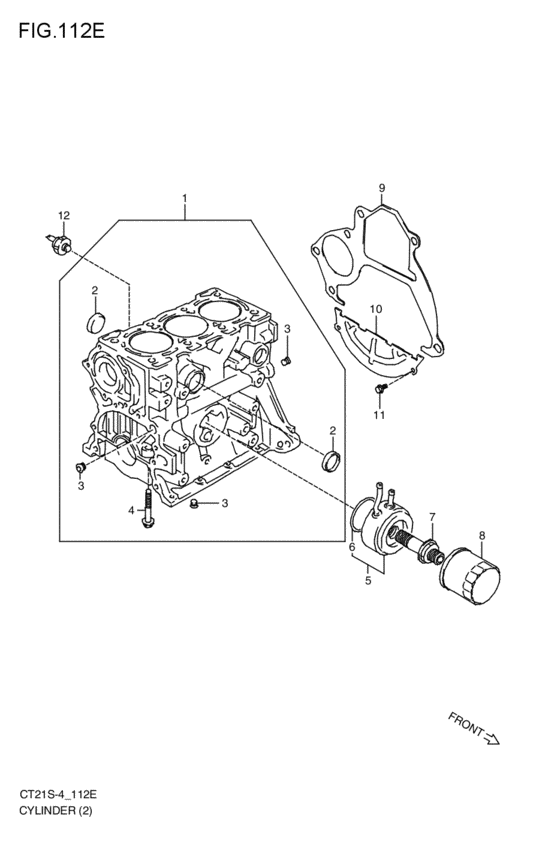

Cylinder (F6A:TURBO; 1997-04-01~1998-10-01) 21 / 21
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 1 | 11200-76G50-000 | ブロックアッシ,シリンダ | ブロックアッシ,シリンダ |
| 1 | 11200-76GV1-000 | BLOCK ASSY,CYLINDER | BLOCK ASSY,CYLINDER |
| 2 | 09241-30009-000 | Plug - Plug (od:30) | Plug - Plug (od:30) |
| 2 | 09241-30010-000 | PLUG | PLUG |
| 3 | 09246-06002-000 | PLUG | PLUG |
| 3 | 09246-08007-000 | PLUG | PLUG |
| 4 | 09103-10022-000 | BOLT(10X54) | BOLT(10X54) |
| 5 | 16600-73B00-000 | Cooler Assy,Oil | Cooler Assy,Oil |
| 6 | 16609-73B00-000 | ガスケット,オイルクーラ | ガスケット,オイルクーラ |
| 7 | 11241-54E00-000 | STAND,OIL COOLER | STAND,OIL COOLER |
| 8 | 16510-81403-000 | Oil Filter | Oil Filter |
| 8 | 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil | FILTER ASSY,OIL TOKYO ROKI - Filter, oil |
| 8 | 16510-81404-000 | Oil Filter | Oil Filter |
| 9 | 11311-60D13-000 | Plate, clutch housing upper | Plate, clutch housing upper |
| 9 | 11311-60D14-000 | PLATE,CLUTCH HSG UPPER | PLATE,CLUTCH HSG UPPER |
| 10 | 11321-70B04-000 | Plate, clutch housing lower | Plate, clutch housing lower |
| 10 | 11320-78G00-000 | PLATE,CLUTCH HSG LOWER | PLATE,CLUTCH HSG LOWER |
| 11 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 11 | 02162-0610A-000 | SCREW | SCREW |
| 12 | 37820-82001-000 | Switch assy, oil pressure | Switch assy, oil pressure |
| 12 | 37820-820P0-000 | SWITCH ASSY,OIL PRESSURE | SWITCH ASSY,OIL PRESSURE |
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 11 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 11 | 02162-0610A-000 | SCREW | SCREW |
| 4 | 09103-10022-000 | BOLT(10X54) | BOLT(10X54) |
| 2 | 09241-30009-000 | Plug - Plug (od:30) | Plug - Plug (od:30) |
| 2 | 09241-30010-000 | PLUG | PLUG |
| 3 | 09246-06002-000 | PLUG | PLUG |
| 3 | 09246-08007-000 | PLUG | PLUG |
| 1 | 11200-76G50-000 | ブロックアッシ,シリンダ | ブロックアッシ,シリンダ |
| 1 | 11200-76GV1-000 | BLOCK ASSY,CYLINDER | BLOCK ASSY,CYLINDER |
| 7 | 11241-54E00-000 | STAND,OIL COOLER | STAND,OIL COOLER |
| 9 | 11311-60D13-000 | Plate, clutch housing upper | Plate, clutch housing upper |
| 9 | 11311-60D14-000 | PLATE,CLUTCH HSG UPPER | PLATE,CLUTCH HSG UPPER |
| 10 | 11320-78G00-000 | PLATE,CLUTCH HSG LOWER | PLATE,CLUTCH HSG LOWER |
| 10 | 11321-70B04-000 | Plate, clutch housing lower | Plate, clutch housing lower |
| 8 | 16510-81403-000 | Oil Filter | Oil Filter |
| 8 | 16510-81404-000 | Oil Filter | Oil Filter |
| 8 | 16510-82703-000 | FILTER ASSY,OIL TOKYO ROKI - Filter, oil | FILTER ASSY,OIL TOKYO ROKI - Filter, oil |
| 5 | 16600-73B00-000 | Cooler Assy,Oil | Cooler Assy,Oil |
| 6 | 16609-73B00-000 | ガスケット,オイルクーラ | ガスケット,オイルクーラ |
| 12 | 37820-82001-000 | Switch assy, oil pressure | Switch assy, oil pressure |
| 12 | 37820-820P0-000 | SWITCH ASSY,OIL PRESSURE | SWITCH ASSY,OIL PRESSURE |
