Search › Compare › CT21S × CV21S
CT21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 15 of 2,056 shared
CV21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 15 of 2,298 shared

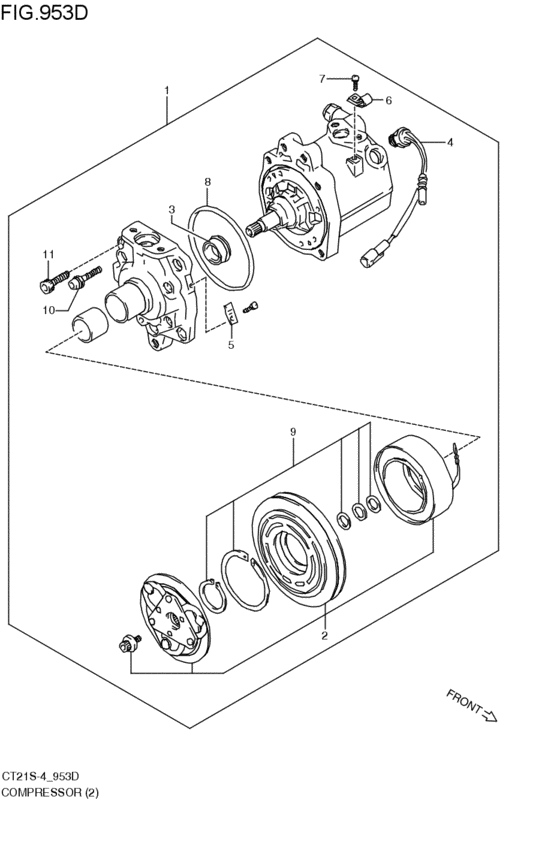

compressor (RCノゾク,SEIKO; SL,SC,MC,FT,FTC,RV,RR,FR,RS; 1997-04-01~1998-10-01) 15 / 15
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 1 | 95200-77G10-000 | COMPRESSOR ASSY | COMPRESSOR ASSY |
| 2 | 95210-70B04-000 | Clutch assy,magnet | Clutch assy,magnet |
| 2 | 95210-70B05-000 | CLUTCH,MAGNET | CLUTCH,MAGNET |
| 3 | 95261-70B00-000 | Seal, lip | Seal, lip |
| 4 | 95527-72B00-000 | SWITCH,THERMAL | SWITCH,THERMAL |
| 4 | 95527-72B01-000 | SWITCH,THERMAL | SWITCH,THERMAL |
| 5 | 95291-70B00-000 | FIXING PLATE | FIXING PLATE |
| 6 | 95293-60D00-000 | Clamp, Cable | Clamp, Cable |
| 7 | 02112-34083-000 | Screw | Screw |
| 7 | 02112-3408A-000 | SCREW | SCREW |
| 8 | 95262-70B00-000 | O ring | O ring |
| 9 | 95298-72B20-000 | Clip kit | Clip kit |
| 9 | 95298-72B21-000 | CLIP KIT | CLIP KIT |
| 10 | 95296-72B20-000 | BOLT,COMPRESSOR CASE | BOLT,COMPRESSOR CASE |
| 11 | 95297-72B20-000 | Bolt | Bolt |
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 7 | 02112-34083-000 | Screw | Screw |
| 7 | 02112-3408A-000 | SCREW | SCREW |
| 1 | 95200-77G10-000 | COMPRESSOR ASSY | COMPRESSOR ASSY |
| 2 | 95210-70B04-000 | Clutch assy,magnet | Clutch assy,magnet |
| 2 | 95210-70B05-000 | CLUTCH,MAGNET | CLUTCH,MAGNET |
| 3 | 95261-70B00-000 | Seal, lip | Seal, lip |
| 8 | 95262-70B00-000 | O ring | O ring |
| 5 | 95291-70B00-000 | FIXING PLATE | FIXING PLATE |
| 6 | 95293-60D00-000 | Clamp, Cable | Clamp, Cable |
| 10 | 95296-72B20-000 | BOLT,COMPRESSOR CASE | BOLT,COMPRESSOR CASE |
| 11 | 95297-72B20-000 | Bolt | Bolt |
| 9 | 95298-72B20-000 | Clip kit | Clip kit |
| 9 | 95298-72B21-000 | CLIP KIT | CLIP KIT |
| 4 | 95527-72B00-000 | SWITCH,THERMAL | SWITCH,THERMAL |
| 4 | 95527-72B01-000 | SWITCH,THERMAL | SWITCH,THERMAL |
