Search › Compare › CT21S × CV21S
CT21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 29 of 2,056 shared
CV21S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 29 of 2,298 shared

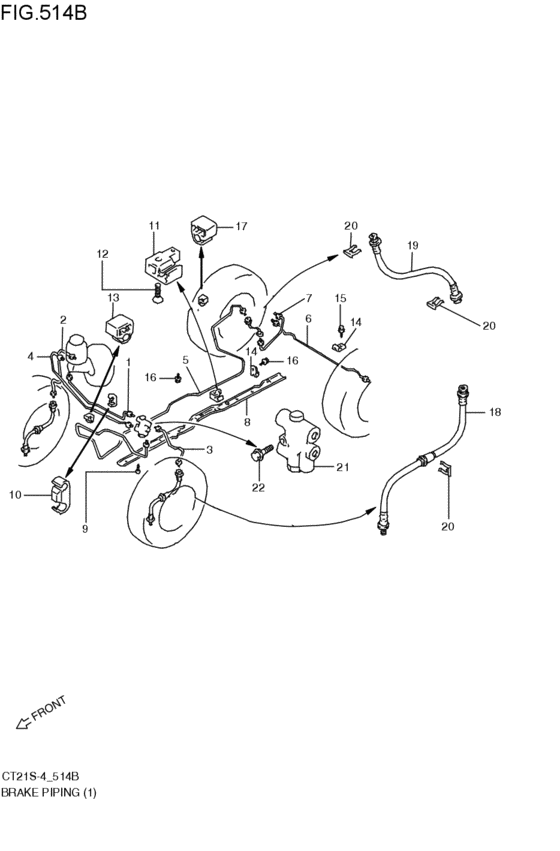

brakes piping (ABSナシ; F6A:NABS; 1997-04-01~1998-10-01) 29 / 31
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 1 | 51410-74FB1-000 | パイプ,マスタプライマリツーバルブ | パイプ,マスタプライマリツーバルブ |
| 2 | 51420-74F10-000 | パイプ,マスタプライマリツーフロントホース,ライト | パイプ,マスタプライマリツーフロントホース,ライト |
| 3 | 51430-74FA0-000 | PIPE,VALVE TO FR BK HOSE L | PIPE,VALVE TO FR BK HOSE L |
| 4 | 51440-74FB1-000 | パイプ,マスタセカンダリツーバルブ | パイプ,マスタセカンダリツーバルブ |
| 5 | 51460-74FA0-000 | PIPE,VALVE TO RR BK HOSE | PIPE,VALVE TO RR BK HOSE |
| 8 | 51711-70BA0-000 | COVER,BRAKE PIPE | COVER,BRAKE PIPE |
| 9 | 03541-05103-000 | Screw5 x 10 | Screw5 x 10 |
| 9 | 03541-0510B-000 | SCREW | SCREW |
| 9 | 03541-0510A-000 | SCREW - Screw, rr cover | SCREW - Screw, rr cover |
| 10 | 51751-60B00-000 | CLAMP,BRAKE PIPE | CLAMP,BRAKE PIPE |
| 11 | 51751-70B00-000 | CLAMP,BK PIPE UNDER FL | CLAMP,BK PIPE UNDER FL |
| 12 | 02122-06203-000 | Screw | Screw |
| 12 | 02122-0620B-000 | SCREW | SCREW |
| 12 | 02122-0620A-000 | SCREW | SCREW |
| 13 | 51752-70B00-000 | CLAMP,BK PIPE | CLAMP,BK PIPE |
| 14 | 09403-06409-000 | Clamp | Clamp |
| 15 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 16 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 16 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 16 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 17 | 51771-60B00-000 | CLAMP,BRAKE PIPE | CLAMP,BRAKE PIPE |
| 18 | 51550-70BA0-000 | HOSE,FR DISC FLEXIBLE | HOSE,FR DISC FLEXIBLE |
| 19 | 51570-50A50-000 | HOSE,RR BRAKE FLEXIBLE | HOSE,RR BRAKE FLEXIBLE |
| 20 | 09383-13001-000 | E RING | E RING |
| 20 | 09383-13003-000 | E-RING | E-RING |
| 21 | 51920-70G00-000 | VALVE ASSY,PROPORTIONING | VALVE ASSY,PROPORTIONING |
| 22 | 01550-06353-000 | Bolt | Bolt |
| 22 | 01550-0635B-000 | Bolt | Bolt |
| 22 | 01550-0635A-000 | Bolt | Bolt |
| # | OEM | CT21S | CV21S |
|---|---|---|---|
| 9 | 01550-06353-000 | Bolt | Bolt |
| 9 | 01550-0635A-000 | Bolt | Bolt |
| 9 | 01550-0635B-000 | Bolt | Bolt |
| 17 | 02122-06203-000 | Screw | Screw |
| 17 | 02122-0620A-000 | SCREW | SCREW |
| 17 | 02122-0620B-000 | SCREW | SCREW |
| 7 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 7 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 7 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 19 | 03541-05103-000 | Screw5 x 10 | Screw5 x 10 |
| 19 | 03541-0510A-000 | SCREW - Screw, rr cover | SCREW - Screw, rr cover |
| 19 | 03541-0510B-000 | SCREW | SCREW |
| 15 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 20 | 09383-13001-000 | E RING | E RING |
| 20 | 09383-13003-000 | E-RING | E-RING |
| 14 | 09403-06409-000 | Clamp | Clamp |
| 1 | 51410-74FB1-000 | パイプ,マスタプライマリツーバルブ | パイプ,マスタプライマリツーバルブ |
| 2 | 51420-74F10-000 | パイプ,マスタプライマリツーフロントホース,ライト | パイプ,マスタプライマリツーフロントホース,ライト |
| 3 | 51430-74FA0-000 | PIPE,VALVE TO FR BK HOSE L | PIPE,VALVE TO FR BK HOSE L |
| 4 | 51440-74FB1-000 | パイプ,マスタセカンダリツーバルブ | パイプ,マスタセカンダリツーバルブ |
| 5 | 51460-74FA0-000 | PIPE,VALVE TO RR BK HOSE | PIPE,VALVE TO RR BK HOSE |
| 18 | 51550-70BA0-000 | HOSE,FR DISC FLEXIBLE | HOSE,FR DISC FLEXIBLE |
| 19 | 51570-50A50-000 | HOSE,RR BRAKE FLEXIBLE | HOSE,RR BRAKE FLEXIBLE |
| 8 | 51711-70BA0-000 | COVER,BRAKE PIPE | COVER,BRAKE PIPE |
| 10 | 51751-60B00-000 | CLAMP,BRAKE PIPE | CLAMP,BRAKE PIPE |
| 11 | 51751-70B00-000 | CLAMP,BK PIPE UNDER FL | CLAMP,BK PIPE UNDER FL |
| 13 | 51752-70B00-000 | CLAMP,BK PIPE | CLAMP,BK PIPE |
| 17 | 51771-60B00-000 | CLAMP,BRAKE PIPE | CLAMP,BRAKE PIPE |
| 21 | 51920-70G00-000 | VALVE ASSY,PROPORTIONING | VALVE ASSY,PROPORTIONING |
