Search › Compare › CR30 × CXR21
CR30
Toyota LITE-TOWNACE — 47 of 5,989 shared
CXR21
Toyota ESTIMA-EMINA-LUCIDA — 47 of 6,427 shared

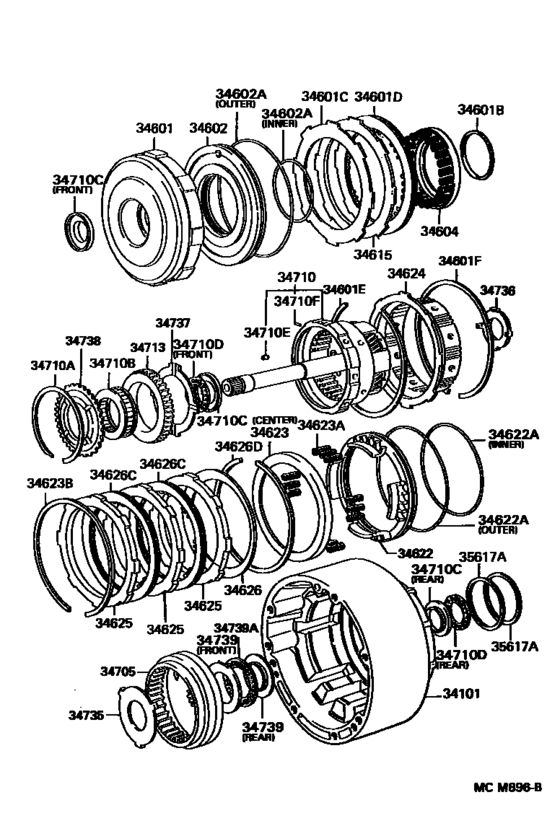

Overdrive Gear (Atm) ([01.1992 - ] A44DL,A45DF (9201- )CR21,22,28,29,3#..ATM) 47 / 49
| # | OEM | CR30 | CXR21 |
|---|---|---|---|
| 34101 | 34101-30062 | Case Sub-Assy, Overdrive | Case Sub-Assy, Overdrive |
| 34101 | 34101-22020 | Case Sub-Assy, Overdrive | Case Sub-Assy, Overdrive |
| 34101 | 35617-43010 | Ring, Clutch Drum Oil Seal (For Overdrive) | Ring, Clutch Drum Oil Seal (For Overdrive) |
| 34601 | 34601-28010 | Drum Sub-Assy, Overdrive Direct Clutch | Drum Sub-Assy, Overdrive Direct Clutch |
| 34601 | 90520-52262 | Ring, Shaft Snap (For Underdrive Return Spring) | Ring, Shaft Snap (For Underdrive Return Spring) |
| 34601 | 34618-30010 | Plate, Clutch (For Overdrive) | Plate, Clutch (For Overdrive) |
| 34601 | 35677-30030 | Disc, Clutch (For Overdrive) | Disc, Clutch (For Overdrive) |
| 34601 | 35677-30160 | Disc, Clutch (For Overdrive) | Disc, Clutch (For Overdrive) |
| 34601 | 90521-99146 | Ring, Hole Snap, No.1 (For Overdrive) | Ring, Hole Snap, No.1 (For Overdrive) |
| 34601 | 90521-99001 | Ring, Hole Snap, No.2 (For Overdrive) | Ring, Hole Snap, No.2 (For Overdrive) |
| 34602 | 34602-30030 | Piston Sub-Assy, Overdrive Direct Clutch | Piston Sub-Assy, Overdrive Direct Clutch |
| 34602 | 90301-57188 | Ring, O (For Underdrive Clutch Piston) | Ring, O (For Underdrive Clutch Piston) |
| 34602 | 90301-56007 | Ring, O (For Underdrive Clutch Piston) | Ring, O (For Underdrive Clutch Piston) |
| 34602 | 90301-99016 | Ring, O (For Overdrive Direct Clutch Piston) | Ring, O (For Overdrive Direct Clutch Piston) |
| 34604 | 34604-22010 | Spring Sub-Assy, Overdrive Clutch Return | Spring Sub-Assy, Overdrive Clutch Return |
| 34615 | 35675-22010 | Flange, Overdrive Clutch | Flange, Overdrive Clutch |
| 34615 | 35675-22140 | Flange, Overdrive Clutch | Flange, Overdrive Clutch |
| 34622 | 34622-30040 | Piston, Overdrive Brake | Piston, Overdrive Brake |
| 34622 | 90301-99008 | Ring, O (For Overdrive Brake Piston) | Ring, O (For Overdrive Brake Piston) |
| 34622 | 90301-99103 | Ring, O (For Overdrive Brake Piston) | Ring, O (For Overdrive Brake Piston) |
| 34622 | 90301-99009 | Ring, O (For Overdrive Brake Piston) | Ring, O (For Overdrive Brake Piston) |
| 34622 | 90301-99111 | Ring, O (For Overdrive Brake Piston) | Ring, O (For Overdrive Brake Piston) |
| 34623 | 34623-30020 | Seat, Overdrive Brake Return Spring | Seat, Overdrive Brake Return Spring |
| 34623 | 90521-99004 | Ring, Hole Snap (For Overdrive Brake Return Spring Seat) | Ring, Hole Snap (For Overdrive Brake Return Spring Seat) |
| 34624 | 34624-26010 | Hub, Overdrive Brake | Hub, Overdrive Brake |
| 34625 | 34625-26010 | Flange, Overdrive Brake, No.1 | Flange, Overdrive Brake, No.1 |
| 34625 | 34625-22020 | Flange, Overdrive Brake, No.1 | Flange, Overdrive Brake, No.1 |
| 34626 | 34626-30050 | Plate, Overdrive Brake Cushion | Plate, Overdrive Brake Cushion |
| 34626 | 35677-30040 | Disc, Clutch (For Overdrive) | Disc, Clutch (For Overdrive) |
| 34626 | 35677-43010 | Disc, Clutch (For Overdrive) | Disc, Clutch (For Overdrive) |
| 34705 | 34705-30021 | Gear Sub-Assy, Overdrive Planetary Ring | Gear Sub-Assy, Overdrive Planetary Ring |
| 34710 | 90521-99003 | Ring, Hole Snap(For Overdrive Planetary Gear) | Ring, Hole Snap(For Overdrive Planetary Gear) |
| 34710 | 35791-28010 | Clutch, 1Way, No.1(For Overdrive) | Clutch, 1Way, No.1(For Overdrive) |
| 34710 | 34739-30041 | Race, Thrust Bearing(For Overdrive Planetary Gear) | Race, Thrust Bearing(For Overdrive Planetary Gear) |
| 34710 | 35789-22010 | Race, Thrust Bearing(For Overdrive Planetary Gear) | Race, Thrust Bearing(For Overdrive Planetary Gear) |
| 34710 | 90374-23012 | Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) | Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) |
| 34710 | 90374-37003 | Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) | Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) |
| 34710 | 90250-03024 | Pin, Straight(For Overdrive Planetary Gear) | Pin, Straight(For Overdrive Planetary Gear) |
| 34713 | 34713-28010 | Race, 1 Way Clutch Outer (For Overdrive) | Race, 1 Way Clutch Outer (For Overdrive) |
| 34735 | 34735-30020 | Washer, Overdrive Planetary Gear Thrust, No.1 | Washer, Overdrive Planetary Gear Thrust, No.1 |
| 34736 | 34736-30010 | Washer, Overdrive Planetary Gear Thrust, No.2 | Washer, Overdrive Planetary Gear Thrust, No.2 |
| 34737 | 34737-28010 | Washer, Overdrive Planetary Gear Thrust, No.3 | Washer, Overdrive Planetary Gear Thrust, No.3 |
| 34738 | 34738-28010 | Washer, Overdrive Planetary Gear Thrust, No.4 | Washer, Overdrive Planetary Gear Thrust, No.4 |
| 34739 | 34739-30020 | Race, Thrust Bearing(For Overdrive) | Race, Thrust Bearing(For Overdrive) |
| 34739 | 35789-22030 | Race, Thrust Bearing(For Overdrive) | Race, Thrust Bearing(For Overdrive) |
| 34739 | 90374-28014 | Bearing, Thrust Needle Roller(For Overdrive) | Bearing, Thrust Needle Roller(For Overdrive) |
| 35617 | 35617-16010 | Ring, Oil Seal (For Overdrive Case) | Ring, Oil Seal (For Overdrive Case) |
| # | OEM | CR30 | CXR21 |
|---|---|---|---|
| 34101 | 34101-22020 | Case Sub-Assy, Overdrive | Case Sub-Assy, Overdrive |
| 34101 | 34101-30062 | Case Sub-Assy, Overdrive | Case Sub-Assy, Overdrive |
| 34601 | 34601-28010 | Drum Sub-Assy, Overdrive Direct Clutch | Drum Sub-Assy, Overdrive Direct Clutch |
| 34602 | 34602-30030 | Piston Sub-Assy, Overdrive Direct Clutch | Piston Sub-Assy, Overdrive Direct Clutch |
| 34604 | 34604-22010 | Spring Sub-Assy, Overdrive Clutch Return | Spring Sub-Assy, Overdrive Clutch Return |
| 34601 | 34618-30010 | Plate, Clutch (For Overdrive) | Plate, Clutch (For Overdrive) |
| 34622 | 34622-30040 | Piston, Overdrive Brake | Piston, Overdrive Brake |
| 34623 | 34623-30020 | Seat, Overdrive Brake Return Spring | Seat, Overdrive Brake Return Spring |
| 34624 | 34624-26010 | Hub, Overdrive Brake | Hub, Overdrive Brake |
| 34625 | 34625-22020 | Flange, Overdrive Brake, No.1 | Flange, Overdrive Brake, No.1 |
| 34625 | 34625-26010 | Flange, Overdrive Brake, No.1 | Flange, Overdrive Brake, No.1 |
| 34626 | 34626-30050 | Plate, Overdrive Brake Cushion | Plate, Overdrive Brake Cushion |
| 34705 | 34705-30021 | Gear Sub-Assy, Overdrive Planetary Ring | Gear Sub-Assy, Overdrive Planetary Ring |
| 34713 | 34713-28010 | Race, 1 Way Clutch Outer (For Overdrive) | Race, 1 Way Clutch Outer (For Overdrive) |
| 34735 | 34735-30020 | Washer, Overdrive Planetary Gear Thrust, No.1 | Washer, Overdrive Planetary Gear Thrust, No.1 |
| 34736 | 34736-30010 | Washer, Overdrive Planetary Gear Thrust, No.2 | Washer, Overdrive Planetary Gear Thrust, No.2 |
| 34737 | 34737-28010 | Washer, Overdrive Planetary Gear Thrust, No.3 | Washer, Overdrive Planetary Gear Thrust, No.3 |
| 34738 | 34738-28010 | Washer, Overdrive Planetary Gear Thrust, No.4 | Washer, Overdrive Planetary Gear Thrust, No.4 |
| 34739 | 34739-30020 | Race, Thrust Bearing(For Overdrive) | Race, Thrust Bearing(For Overdrive) |
| 34710 | 34739-30041 | Race, Thrust Bearing(For Overdrive Planetary Gear) | Race, Thrust Bearing(For Overdrive Planetary Gear) |
| 35709 | 35617-16010 | Ring, Oil Seal (For Overdrive Case) | Ring, Oil Seal (For Overdrive Case) |
| 34101 | 35617-43010 | Ring, Clutch Drum Oil Seal (For Overdrive) | Ring, Clutch Drum Oil Seal (For Overdrive) |
| 35675 | 35675-22010 | Flange, Overdrive Clutch | Flange, Overdrive Clutch |
| 35675 | 35675-22140 | Flange, Overdrive Clutch | Flange, Overdrive Clutch |
| 35633 | 35677-30030 | Disc, Clutch (For Overdrive) | Disc, Clutch (For Overdrive) |
| 34626 | 35677-30040 | Disc, Clutch (For Overdrive) | Disc, Clutch (For Overdrive) |
| 35633 | 35677-30160 | Disc, Clutch (For Overdrive) | Disc, Clutch (For Overdrive) |
| 34626 | 35677-43010 | Disc, Clutch (For Overdrive) | Disc, Clutch (For Overdrive) |
| 35701 | 35789-22010 | Race, Thrust Bearing(For Overdrive Planetary Gear) | Race, Thrust Bearing(For Overdrive Planetary Gear) |
| 35706 | 35789-22030 | Race, Thrust Bearing(For Overdrive) | Race, Thrust Bearing(For Overdrive) |
| 34710 | 35791-28010 | Clutch, 1Way, No.1(For Overdrive) | Clutch, 1Way, No.1(For Overdrive) |
| 34710 | 90250-03024 | Pin, Straight(For Overdrive Planetary Gear) | Pin, Straight(For Overdrive Planetary Gear) |
| 35601 | 90301-56007 | Ring, O (For Underdrive Clutch Piston) | Ring, O (For Underdrive Clutch Piston) |
| 35601 | 90301-57188 | Ring, O (For Underdrive Clutch Piston) | Ring, O (For Underdrive Clutch Piston) |
| 34622 | 90301-99008 | Ring, O (For Overdrive Brake Piston) | Ring, O (For Overdrive Brake Piston) |
| 34622 | 90301-99009 | Ring, O (For Overdrive Brake Piston) | Ring, O (For Overdrive Brake Piston) |
| 35613 | 90301-99016 | Ring, O (For Overdrive Direct Clutch Piston) | Ring, O (For Overdrive Direct Clutch Piston) |
| 34622 | 90301-99103 | Ring, O (For Overdrive Brake Piston) | Ring, O (For Overdrive Brake Piston) |
| 34622 | 90301-99111 | Ring, O (For Overdrive Brake Piston) | Ring, O (For Overdrive Brake Piston) |
| 35701 | 90374-23012 | Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) | Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) |
| 35631 | 90374-28014 | Bearing, Thrust Needle Roller(For Overdrive) | Bearing, Thrust Needle Roller(For Overdrive) |
| 34710 | 90374-37003 | Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) | Bearing, Thrust Needle Roller(For Overdrive Planetary Gear) |
| 35623 | 90520-52262 | Ring, Shaft Snap (For Underdrive Return Spring) | Ring, Shaft Snap (For Underdrive Return Spring) |
| 34601 | 90521-99001 | Ring, Hole Snap, No.2 (For Overdrive) | Ring, Hole Snap, No.2 (For Overdrive) |
| 34710 | 90521-99003 | Ring, Hole Snap(For Overdrive Planetary Gear) | Ring, Hole Snap(For Overdrive Planetary Gear) |
| 34623 | 90521-99004 | Ring, Hole Snap (For Overdrive Brake Return Spring Seat) | Ring, Hole Snap (For Overdrive Brake Return Spring Seat) |
| 35654 | 90521-99146 | Ring, Hole Snap, No.1 (For Overdrive) | Ring, Hole Snap, No.1 (For Overdrive) |
