Search › Compare › CP32S × HB21S
CP32S
Suzuki CERVO-MODE — 24 of 2,180 shared
HB21S
Suzuki ALTO-A-STAR-CELERIO — 24 of 2,104 shared

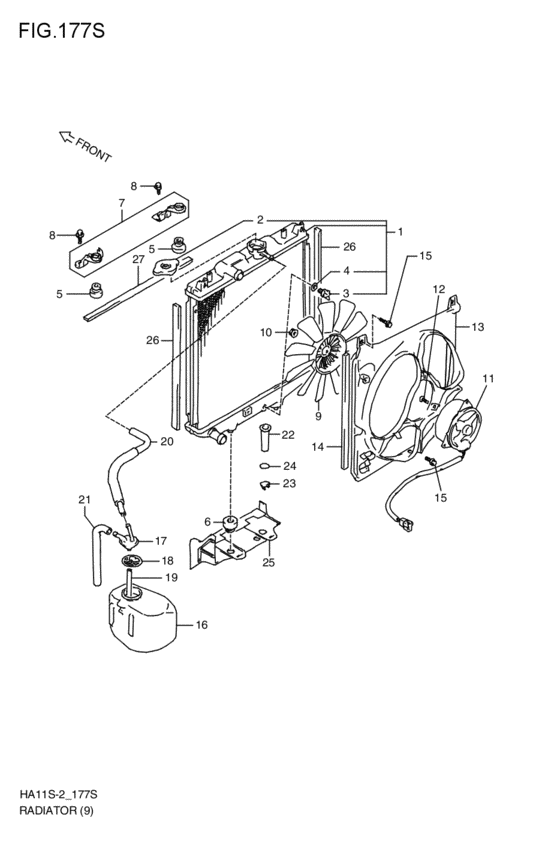

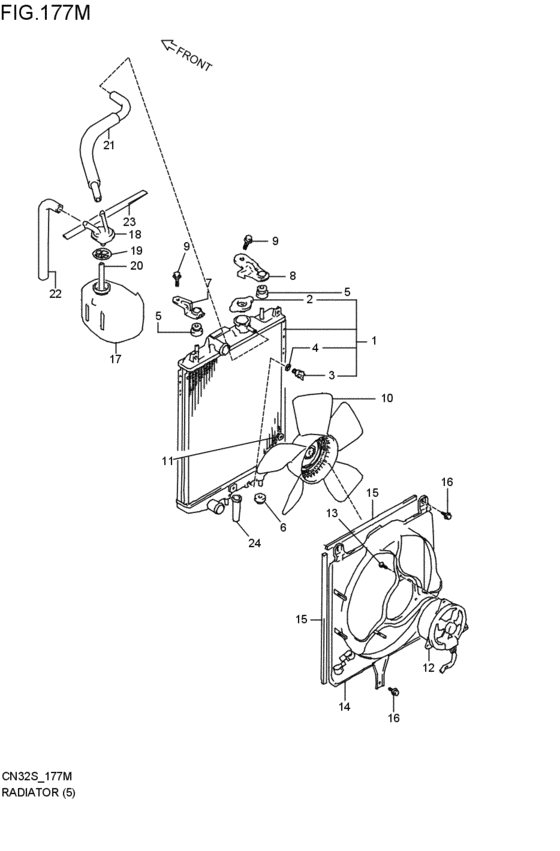

radiator (ツインカム:ターボ; DOHC:TURBO; 1995-10-01~) 24 / 33
| # | OEM | CP32S | HB21S |
|---|---|---|---|
| 2 | 17920-66F01-000 | CAP,RADIATOR 1.1 | CAP,RADIATOR 1.1 |
| 3 | 17751-61A00-000 | PLUG,DRAIN | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING | O-RING |
| 5 | 17879-70B01-000 | MOUNT,RDTR SUPPORT | MOUNT,RDTR SUPPORT |
| 6 | 17879-60D00-000 | MOUNT,RDTR SUPPORT LWR | MOUNT,RDTR SUPPORT LWR |
| 9 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 9 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 9 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 11 | 08316-20053-000 | Nut | Nut |
| 11 | 08316-2005A-000 | NUT | NUT |
| 13 | 02142-05103-000 | Screw 5x10 | Screw 5x10 |
| 13 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 15 | 17799-84010-000 | SEAL,FAN SHROUD | SEAL,FAN SHROUD |
| 16 | 01550-06123-000 | Bolt | Bolt |
| 16 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 16 | 01550-0612A-000 | Bolt | Bolt |
| 17 | 17931-70B10-000 | TANK,WATER RESERVE | TANK,WATER RESERVE |
| 18 | 17932-60D20-000 | CAP,WATER RSVR TANK | CAP,WATER RSVR TANK |
| 19 | 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap | RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
| 20 | 09352-70111-600 | HOSE(7X11X600) | HOSE(7X11X600) |
| 21 | 17938-70G20-000 | HOSE,RDTR TO RSVR TANK | HOSE,RDTR TO RSVR TANK |
| 22 | 17936-60D00-000 | ホース,リザーバタンクベント | ホース,リザーバタンクベント |
| 22 | 17939-65D00-000 | HOSE,RSVR TANK VENT | HOSE,RSVR TANK VENT |
| 24 | 17711-60F00-000 | GUIDE,WATER DRAIN | GUIDE,WATER DRAIN |
| # | OEM | CP32S | HB21S |
|---|---|---|---|
| 5 | 01550-06123-000 | Bolt | Bolt |
| 5 | 01550-0612A-000 | Bolt | Bolt |
| 5 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 13 | 02142-05103-000 | Screw 5x10 | Screw 5x10 |
| 13 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 6 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 6 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 6 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 11 | 08316-20053-000 | Nut | Nut |
| 11 | 08316-2005A-000 | NUT | NUT |
| 20 | 09352-70111-600 | HOSE(7X11X600) | HOSE(7X11X600) |
| 24 | 17711-60F00-000 | GUIDE,WATER DRAIN | GUIDE,WATER DRAIN |
| 3 | 17751-61A00-000 | PLUG,DRAIN | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING | O-RING |
| 15 | 17799-84010-000 | SEAL,FAN SHROUD | SEAL,FAN SHROUD |
| 6 | 17879-60D00-000 | MOUNT,RDTR SUPPORT LWR | MOUNT,RDTR SUPPORT LWR |
| 5 | 17879-70B01-000 | MOUNT,RDTR SUPPORT | MOUNT,RDTR SUPPORT |
| 2 | 17920-66F01-000 | CAP,RADIATOR 1.1 | CAP,RADIATOR 1.1 |
| 17 | 17931-70B10-000 | TANK,WATER RESERVE | TANK,WATER RESERVE |
| 18 | 17932-60D20-000 | CAP,WATER RSVR TANK | CAP,WATER RSVR TANK |
| 19 | 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap | RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
| 22 | 17936-60D00-000 | ホース,リザーバタンクベント | ホース,リザーバタンクベント |
| 21 | 17938-70G20-000 | HOSE,RDTR TO RSVR TANK | HOSE,RDTR TO RSVR TANK |
| 22 | 17939-65D00-000 | HOSE,RSVR TANK VENT | HOSE,RSVR TANK VENT |
