Search › Compare › CP32S × HB21S
CP32S
Suzuki CERVO-MODE — 32 of 2,180 shared
HB21S
Suzuki ALTO-A-STAR-CELERIO — 32 of 2,104 shared

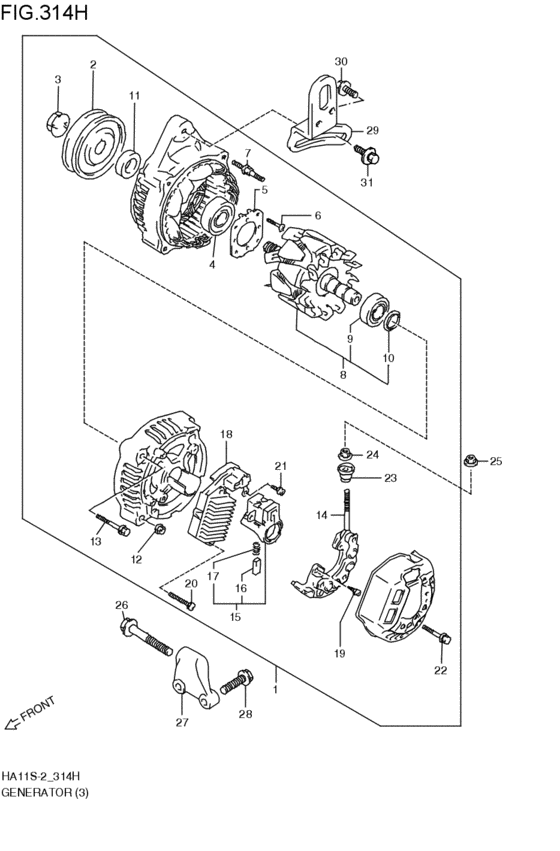

generator (SRF; 1995-10-01~) 32 / 44
| # | OEM | CP32S | HB21S |
|---|---|---|---|
| 3 | 31775-86510-000 | NUT | NUT |
| 5 | 31585-85251-000 | RETAINER,BEARING - Retainer, bearing | RETAINER,BEARING - Retainer, bearing |
| 7 | 31587-85250-000 | STUD BOLT | STUD BOLT |
| 9 | 31612-86510-000 | BEARING | BEARING |
| 10 | 31613-82610-000 | COVER,BEARING | COVER,BEARING |
| 12 | 08310-00053-000 | Nut | Nut |
| 12 | 08310-0005A-000 | NUT | NUT |
| 13 | 31651-85251-000 | Bolt | Bolt |
| 15 | 31656-82611-000 | Holder assy, brush | Holder assy, brush |
| 15 | 31656-60G10-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 16 | 31631-82610-000 | BRUSH | BRUSH |
| 17 | 31635-82610-000 | SPRING,BRUSH | SPRING,BRUSH |
| 18 | 32500-85251-000 | REGULATOR ASSY | REGULATOR ASSY |
| 19 | 02112-04063-000 | Screw | Screw |
| 19 | 02112-0406B-000 | SCREW | SCREW |
| 20 | 02112-34253-000 | No description - Screw | No description - Screw |
| 20 | 02112-3425B-000 | SCREW | SCREW |
| 21 | 02112-04083-000 | Screw | Screw |
| 21 | 02112-0408A-000 | SCREW | SCREW |
| 22 | 31691-85250-000 | Bolt | Bolt |
| 24 | 08310-00063-000 | Nut | Nut |
| 24 | 08310-0006B-000 | NUT - Nut gear shift link rod | NUT - Nut gear shift link rod |
| 24 | 08310-0006A-000 | NUT | NUT |
| 25 | 08316-10063-000 | Nut | Nut |
| 25 | 08316-1006B-000 | NUT | NUT |
| 26 | 01550-08353-000 | Bolt, rear | Bolt, rear |
| 26 | 01550-0835B-000 | Bolt | Bolt |
| 26 | 01550-0835A-000 | Bolt | Bolt |
| 29 | 09118-08107-000 | BOLT(8X25) | BOLT(8X25) |
| 30 | 01550-08203-000 | Bolt | Bolt |
| 30 | 01550-0820B-000 | Bolt | Bolt |
| 30 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| # | OEM | CP32S | HB21S |
|---|---|---|---|
| 6 | 01550-08203-000 | Bolt | Bolt |
| 6 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 6 | 01550-0820B-000 | Bolt | Bolt |
| 30 | 01550-08353-000 | Bolt, rear | Bolt, rear |
| 30 | 01550-0835A-000 | Bolt | Bolt |
| 30 | 01550-0835B-000 | Bolt | Bolt |
| 19 | 02112-04063-000 | Screw | Screw |
| 19 | 02112-0406B-000 | SCREW | SCREW |
| 21 | 02112-04083-000 | Screw | Screw |
| 21 | 02112-0408A-000 | SCREW | SCREW |
| 20 | 02112-34253-000 | No description - Screw | No description - Screw |
| 20 | 02112-3425B-000 | SCREW | SCREW |
| 12 | 08310-00053-000 | Nut | Nut |
| 12 | 08310-0005A-000 | NUT | NUT |
| 24 | 08310-00063-000 | Nut | Nut |
| 24 | 08310-0006A-000 | NUT | NUT |
| 24 | 08310-0006B-000 | NUT - Nut gear shift link rod | NUT - Nut gear shift link rod |
| 3 | 08316-10063-000 | Nut | Nut |
| 3 | 08316-1006B-000 | NUT | NUT |
| 29 | 09118-08107-000 | BOLT(8X25) | BOLT(8X25) |
| 5 | 31585-85251-000 | RETAINER,BEARING - Retainer, bearing | RETAINER,BEARING - Retainer, bearing |
| 7 | 31587-85250-000 | STUD BOLT | STUD BOLT |
| 9 | 31612-86510-000 | BEARING | BEARING |
| 10 | 31613-82610-000 | COVER,BEARING | COVER,BEARING |
| 16 | 31631-82610-000 | BRUSH | BRUSH |
| 17 | 31635-82610-000 | SPRING,BRUSH | SPRING,BRUSH |
| 13 | 31651-85251-000 | Bolt | Bolt |
| 15 | 31656-60G10-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 15 | 31656-82611-000 | Holder assy, brush | Holder assy, brush |
| 22 | 31691-85250-000 | Bolt | Bolt |
| 3 | 31775-86510-000 | NUT | NUT |
| 18 | 32500-85251-000 | REGULATOR ASSY | REGULATOR ASSY |
