Search › Compare › CP32S × HB21S
CP32S
Suzuki CERVO-MODE — 13 of 2,180 shared
HB21S
Suzuki ALTO-A-STAR-CELERIO — 13 of 2,104 shared

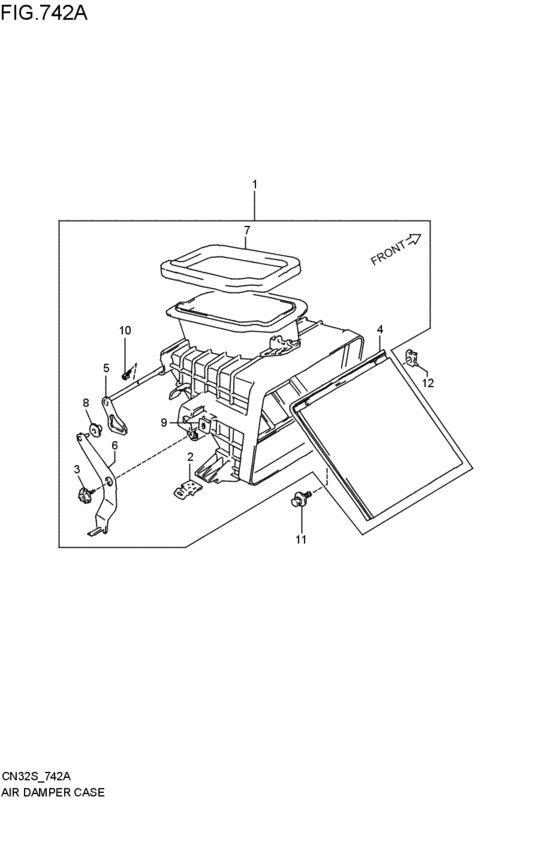

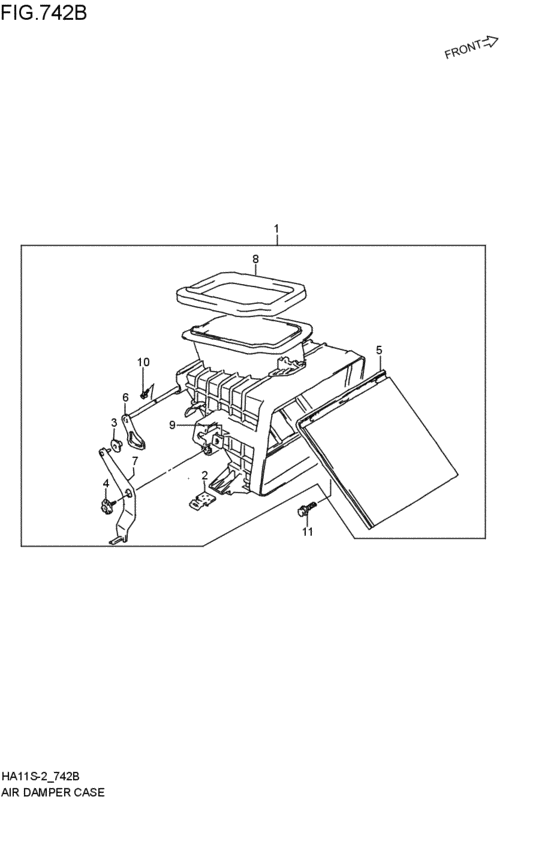

エアダンパケース (1995-10-01~1997-04-01) 13 / 15
| # | OEM | CP32S | HB21S |
|---|---|---|---|
| 2 | 74151-85000-000 | CLAMP,LOCK | CLAMP,LOCK |
| 3 | 74183-82005-000 | SCREW,LINK | SCREW,LINK |
| 4 | 74212-70B00-000 | DOOR,FRESH | DOOR,FRESH |
| 5 | 74213-70B00-000 | SHAFT,DOOR | SHAFT,DOOR |
| 6 | 74214-70B00-000 | LEVER,FRESH DR | LEVER,FRESH DR |
| 7 | 74163-84101-000 | PACKING | PACKING |
| 8 | 74146-70B00-000 | BUSH,AIR MIX LEVER | BUSH,AIR MIX LEVER |
| 9 | 74217-70B00-000 | NUT | NUT |
| 10 | 02112-33083-000 | Screw | Screw |
| 10 | 02112-3308A-000 | SCREW | SCREW |
| 11 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 11 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 12 | 74819-84000-000 | NUT | NUT |
| # | OEM | CP32S | HB21S |
|---|---|---|---|
| 10 | 02112-33083-000 | Screw | Screw |
| 10 | 02112-3308A-000 | SCREW | SCREW |
| 22 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 22 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 8 | 74146-70B00-000 | BUSH,AIR MIX LEVER | BUSH,AIR MIX LEVER |
| 2 | 74151-85000-000 | CLAMP,LOCK | CLAMP,LOCK |
| 7 | 74163-84101-000 | PACKING | PACKING |
| 15 | 74183-82005-000 | SCREW,LINK | SCREW,LINK |
| 4 | 74212-70B00-000 | DOOR,FRESH | DOOR,FRESH |
| 5 | 74213-70B00-000 | SHAFT,DOOR | SHAFT,DOOR |
| 6 | 74214-70B00-000 | LEVER,FRESH DR | LEVER,FRESH DR |
| 9 | 74217-70B00-000 | NUT | NUT |
| 12 | 74819-84000-000 | NUT | NUT |
