Search › Compare › CP22S × CV51S
CP22S
Suzuki CERVO-MODE — 16 of 2,173 shared
CV51S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 16 of 2,210 shared

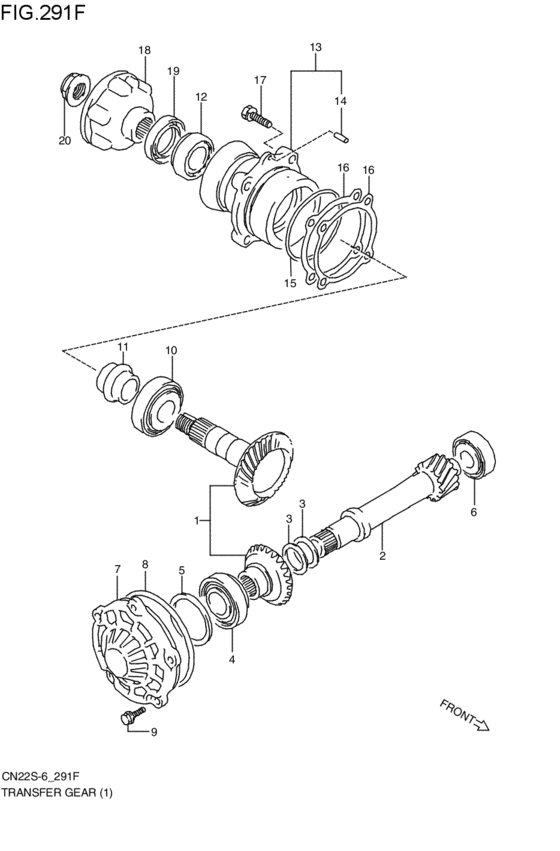

transfer gear (4WD:MT; 1997-05-01~1998-06-01) 16 / 45
| # | OEM | CP22S | CV51S |
|---|---|---|---|
| 10 | 09265-25027-000 | TAPER ROLLER BEARING | TAPER ROLLER BEARING |
| 10 | 09265-25039-000 | BEARING(25X62X18.25) | BEARING(25X62X18.25) |
| 11 | 27315-74B06-000 | スペーサ,ベベルピニオン | スペーサ,ベベルピニオン |
| 12 | 09265-25033-000 | BEARING(25X52X15) | BEARING(25X52X15) |
| 13 | 29270-64D21-000 | リテーナ,トランスファ,アウトプツト | リテーナ,トランスファ,アウトプツト |
| 14 | 09205-03020-000 | PIN,SPRING(3X22) | PIN,SPRING(3X22) |
| 15 | 09280-76008-000 | O RING(D:3.1,ID:74) - O ring, rr final housing | O RING(D:3.1,ID:74) - O ring, rr final housing |
| 16 | 29261-74B03-000 | SHIM,T/F RETAINER T:0.60 | SHIM,T/F RETAINER T:0.60 |
| 16 | 29261-74B23-000 | SHIM,T/F RETAINER T:0.66 | SHIM,T/F RETAINER T:0.66 |
| 16 | 29261-74B43-000 | SHIM,T/F RETAINER T:0.72 | SHIM,T/F RETAINER T:0.72 |
| 16 | 29261-74B61-000 | SHIM,T/F RETAINER T:0.78 | SHIM,T/F RETAINER T:0.78 |
| 16 | 29261-74B81-000 | SHIM,T/F RETAINER T:0.84 | SHIM,T/F RETAINER T:0.84 |
| 16 | 29261-75B02-000 | SHIM,T/F RETAINER T:0.30 | SHIM,T/F RETAINER T:0.30 |
| 19 | 27431-73B20-000 | OIL SEAL,DIFF SIDE - Seal, defferential side oil | OIL SEAL,DIFF SIDE - Seal, defferential side oil |
| 19 | 27431-73H30-000 | SEAL,OIL | SEAL,OIL |
| 20 | 09159-20012-000 | NUT | NUT |
| # | OEM | CP22S | CV51S |
|---|---|---|---|
| 20 | 09159-20012-000 | NUT | NUT |
| 34 | 09205-03020-000 | PIN,SPRING(3X22) | PIN,SPRING(3X22) |
| 10 | 09265-25027-000 | TAPER ROLLER BEARING | TAPER ROLLER BEARING |
| 12 | 09265-25033-000 | BEARING(25X52X15) | BEARING(25X52X15) |
| 10 | 09265-25039-000 | BEARING(25X62X18.25) | BEARING(25X62X18.25) |
| 15 | 09280-76008-000 | O RING(D:3.1,ID:74) - O ring, rr final housing | O RING(D:3.1,ID:74) - O ring, rr final housing |
| 11 | 27315-74B06-000 | スペーサ,ベベルピニオン | スペーサ,ベベルピニオン |
| 19 | 27431-73B20-000 | OIL SEAL,DIFF SIDE - Seal, defferential side oil | OIL SEAL,DIFF SIDE - Seal, defferential side oil |
| 19 | 27431-73H30-000 | SEAL,OIL | SEAL,OIL |
| 16 | 29261-74B03-000 | SHIM,T/F RETAINER T:0.60 | SHIM,T/F RETAINER T:0.60 |
| 16 | 29261-74B23-000 | SHIM,T/F RETAINER T:0.66 | SHIM,T/F RETAINER T:0.66 |
| 16 | 29261-74B43-000 | SHIM,T/F RETAINER T:0.72 | SHIM,T/F RETAINER T:0.72 |
| 16 | 29261-74B61-000 | SHIM,T/F RETAINER T:0.78 | SHIM,T/F RETAINER T:0.78 |
| 16 | 29261-74B81-000 | SHIM,T/F RETAINER T:0.84 | SHIM,T/F RETAINER T:0.84 |
| 16 | 29261-75B02-000 | SHIM,T/F RETAINER T:0.30 | SHIM,T/F RETAINER T:0.30 |
| 13 | 29270-64D21-000 | リテーナ,トランスファ,アウトプツト | リテーナ,トランスファ,アウトプツト |
