Search › Compare › CP22S × CV51S
CP22S
Suzuki CERVO-MODE — 20 of 2,173 shared
CV51S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 20 of 2,210 shared

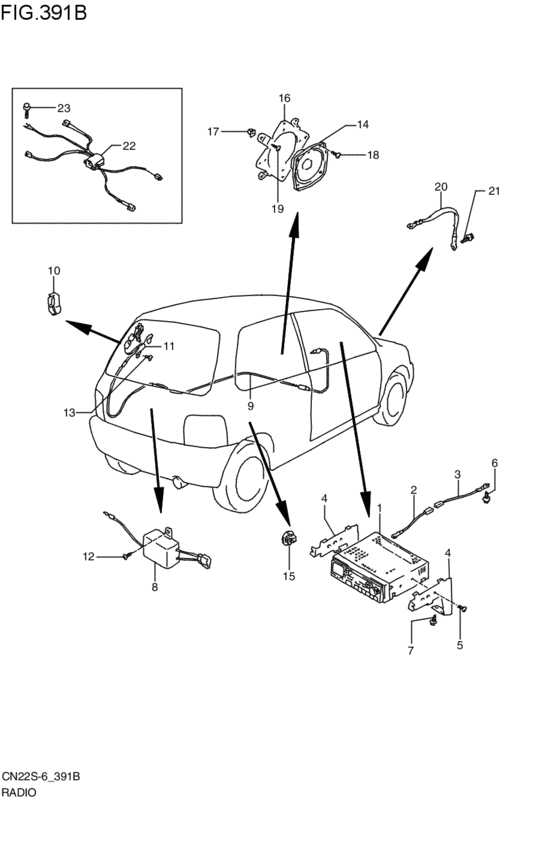

radio (1997-05-01~1998-06-01) 20 / 31
| # | OEM | CP22S | CV51S |
|---|---|---|---|
| 1 | 39101-70G80-000 | チューナアッシ(AM/FM,カセット) | チューナアッシ(AM/FM,カセット) |
| 2 | 39191-50F00-000 | WIRE,TUNER GND | WIRE,TUNER GND |
| 3 | 39192-70G00-000 | WIRE,TUNER GND NO.2 | WIRE,TUNER GND NO.2 |
| 5 | 02142-05083-000 | Screw | Screw |
| 5 | 02142-0508A-000 | SCREW - Screw, cap | SCREW - Screw, cap |
| 6 | 03241-06123-000 | Screw | Screw |
| 6 | 03241-0612A-000 | SCREW | SCREW |
| 7 | 03541-05203-000 | Screw | Screw |
| 7 | 03541-0520A-000 | SCREW | SCREW |
| 12 | 03142-05123-000 | Screw - Screw, belt cooling duct | Screw - Screw, belt cooling duct |
| 12 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 14 | 39102-50E10-000 | SPEAKER ASSY,FR | SPEAKER ASSY,FR |
| 17 | 09148-05018-000 | NUT | NUT |
| 19 | 03541-05123-000 | Screw | Screw |
| 19 | 03541-0512B-000 | SCREW | SCREW |
| 20 | 39312-82012-000 | WIRE,NOISE SUPPR | WIRE,NOISE SUPPR |
| 21 | 09115-06001-000 | Bolt, lh - Bolt (6x16) | Bolt, lh - Bolt (6x16) |
| 21 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 23 | 01550-06303-000 | Bolt (6x30) - Bolt, head cover l:30 | Bolt (6x30) - Bolt, head cover l:30 |
| 23 | 01550-0630A-000 | Bolt | Bolt |
| # | OEM | CP22S | CV51S |
|---|---|---|---|
| 7 | 01550-06303-000 | Bolt (6x30) - Bolt, head cover l:30 | Bolt (6x30) - Bolt, head cover l:30 |
| 7 | 01550-0630A-000 | Bolt | Bolt |
| 5 | 02142-05083-000 | Screw | Screw |
| 5 | 02142-0508A-000 | SCREW - Screw, cap | SCREW - Screw, cap |
| 9 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 9 | 03142-05123-000 | Screw - Screw, belt cooling duct | Screw - Screw, belt cooling duct |
| 19 | 03241-06123-000 | Screw | Screw |
| 19 | 03241-0612A-000 | SCREW | SCREW |
| 34 | 03541-05123-000 | Screw | Screw |
| 34 | 03541-0512B-000 | SCREW | SCREW |
| 7 | 03541-05203-000 | Screw | Screw |
| 7 | 03541-0520A-000 | SCREW | SCREW |
| 4 | 09115-06001-000 | Bolt, lh - Bolt (6x16) | Bolt, lh - Bolt (6x16) |
| 4 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 15 | 09148-05018-000 | NUT | NUT |
| 1 | 39101-70G80-000 | チューナアッシ(AM/FM,カセット) | チューナアッシ(AM/FM,カセット) |
| 14 | 39102-50E10-000 | SPEAKER ASSY,FR | SPEAKER ASSY,FR |
| 2 | 39191-50F00-000 | WIRE,TUNER GND | WIRE,TUNER GND |
| 3 | 39192-70G00-000 | WIRE,TUNER GND NO.2 | WIRE,TUNER GND NO.2 |
| 22 | 39312-82012-000 | WIRE,NOISE SUPPR | WIRE,NOISE SUPPR |
