Search › Compare › CP22S × CV51S
CP22S
Suzuki CERVO-MODE — 9 of 2,173 shared
CV51S
Suzuki WAGON-R-PLUS-SOLIO-WIDE — 9 of 2,210 shared

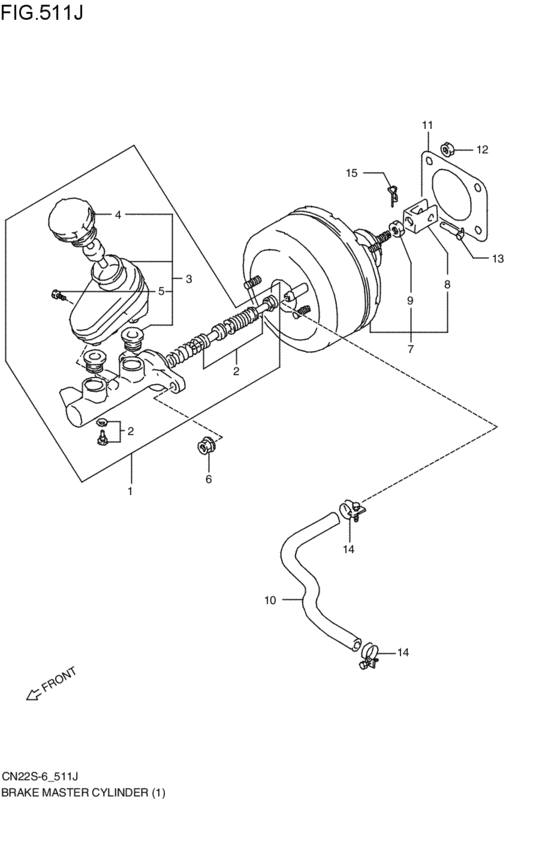

brakes master cylinder (CARB; 1997-05-01~1998-06-01) 9 / 21
| # | OEM | CP22S | CV51S |
|---|---|---|---|
| 9 | 08310-00083-000 | Nut | Nut |
| 9 | 08310-0008B-000 | NUT | NUT |
| 9 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 11 | 51132-82003-000 | PACKING,BRAKE MASTER CYLINDER | PACKING,BRAKE MASTER CYLINDER |
| 12 | 09159-08069-000 | Nut | Nut |
| 12 | 09159-08135-000 | NUT | NUT |
| 13 | 09200-08069-000 | PIN | PIN |
| 14 | 09401-15404-000 | CLIP | CLIP |
| 15 | 09385-08007-000 | PIN,SNAP - Clip | PIN,SNAP - Clip |
| # | OEM | CP22S | CV51S |
|---|---|---|---|
| 9 | 08310-00083-000 | Nut | Nut |
| 9 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 9 | 08310-0008B-000 | NUT | NUT |
| 12 | 09159-08069-000 | Nut | Nut |
| 12 | 09159-08135-000 | NUT | NUT |
| 13 | 09200-08069-000 | PIN | PIN |
| 15 | 09385-08007-000 | PIN,SNAP - Clip | PIN,SNAP - Clip |
| 14 | 09401-15404-000 | CLIP | CLIP |
| 11 | 51132-82003-000 | PACKING,BRAKE MASTER CYLINDER | PACKING,BRAKE MASTER CYLINDER |
