CN31S × CP31S

Shared 52 / Total 2,828 · Jaccard 79.9%
CN31S Suzuki CERVO-MODE — 52 of 2,507 shared
CP31S Suzuki CERVO-MODE — 52 of 2,581 shared

← Back to categories

52 items

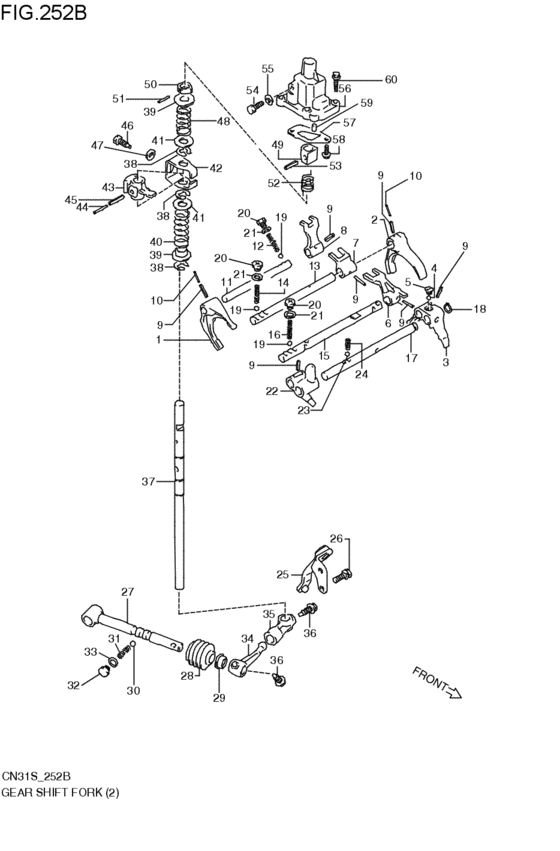

mt - gearlever fork (TURBO:5MT:2WD; 1990-06-01~1994-08-01) 52 / 78
CN31S mt - gearlever fork (TURBO:5MT:2WD; 1990-06-01~1994-08-01)
CP31S mt - gearlever fork (5MT:4WD; 1990-06-01~1994-08-01)
# OEM CN31S CP31S
1 25211-63D00-000 Fork,low speed gear shift Fork,low speed gear shift
1 25211-63D20-000 FORK,LOW SPEED GEAR SHIFT FORK,LOW SPEED GEAR SHIFT
3 25231-70B51-000 フォーク,フィフスギヤシフト フォーク,フィフスギヤシフト
3 25231-70B52-000 FORK,5TH GEAR SHIFT FORK,5TH GEAR SHIFT
4 06111-10003-000 BALL BALL
5 09248-10006-000 PLUG PLUG
9 09205-04015-000 PIN,SPRING(4.5X20) PIN,SPRING(4.5X20)
10 09205-02016-000 PIN,SPRING(2.7X20) PIN,SPRING(2.7X20)
17 25431-73B51-000 シャフト,フィフス/リバースギヤシフトガイド シャフト,フィフス/リバースギヤシフトガイド
17 25431-73B52-000 SHAFT,5TH&REV GEAR SHF GUIDE SHAFT,5TH&REV GEAR SHF GUIDE
18 08331-31126-000 Circlip Circlip
18 08331-3112A-000 CIRCLIP CIRCLIP
20 09128-10002-000 BOLT(10X9) BOLT(10X9)
21 08322-01103-000 Washer Washer
21 08322-0110B-000 WASHER - Washer, knuckle end WASHER - Washer, knuckle end
21 08322-0110A-000 WASHER - Washer, knuckle end WASHER - Washer, knuckle end
22 25251-73B50-000 ARM,REVERSE GEAR SHIFT ARM,REVERSE GEAR SHIFT
24 25255-60B01-000 SPRING,REVERSE GEAR SHF ARM SPRING,REVERSE GEAR SHF ARM
25 25460-73B00-000 LEVER,REV GEAR SHF LEVER,REV GEAR SHF
26 01570-08203-000 Bolt Bolt
26 01570-0820B-000 Bolt Bolt
26 01570-0820A-000 Bolt Bolt
33 09168-10007-000 GASKET(10.1X16X1) - Gasket, parking pawl GASKET(10.1X16X1) - Gasket, parking pawl
37 25581-51K01-000 CAM,5TH&REV GRAR SHIFT CAM,5TH&REV GRAR SHIFT
37 09205-04009-000 PIN,SPRING(4.5X20) PIN,SPRING(4.5X20)
38 08332-11126-000 E ring E ring
38 08332-1112A-000 E RING E RING
39 25587-74B00-000 GUIDE,LOW SELECT SPRING GUIDE,LOW SELECT SPRING
40 25576-70B00-000 SPRING,LOW SPEED SELECT SPRING,LOW SPEED SELECT
41 08212-14301-000 WASHER WASHER
42 25311-60B10-000 プレート,ギヤシフトインタロック プレート,ギヤシフトインタロック
42 25311-60B20-000 PLATE,GEAR SHF INTERLOCK PLATE,GEAR SHF INTERLOCK
43 25541-74B00-000 LEVER,GEAR SHF&SLT LEVER,GEAR SHF&SLT
44 09205-03016-000 PIN,SPRING(3.5X28) PIN,SPRING(3.5X28)
45 09205-06004-000 PIN,SPRING(6X28) PIN,SPRING(6X28)
46 25321-60B01-000 BOLT,GEAR SHF INTERLOCK BOLT,GEAR SHF INTERLOCK
47 09168-10031-000 GASKET(10.2X20X2.3) GASKET(10.2X20X2.3)
48 25577-70B00-000 SPRING,REVERSE SELECT SPRING,REVERSE SELECT
49 25581-50F00-000 Cam,5th & rev Cam,5th & rev
49 25581-60B50-000 CAM,5TH&REV GEAR SHIFT CAM,5TH&REV GEAR SHIFT
50 25582-60B51-000 GUIDE,5TH&REV GR SHF GUIDE,5TH&REV GR SHF
51 09205-03020-000 PIN,SPRING(3X22) PIN,SPRING(3X22)
52 25583-60B50-000 SPRING,CAM GUIDE RETURN SPRING,CAM GUIDE RETURN
53 09205-05013-000 PIN,SPRING(5X22) - Pin, spring (5x22) PIN,SPRING(5X22) - Pin, spring (5x22)
55 08322-01083-000 WASHER WASHER
55 08322-0108B-000 WASHER WASHER
55 08322-0108A-000 WASHER WASHER
58 09103-06083-000 Bolt (6x12) Bolt (6x12)
58 09103-06285-000 BOLT(6X12) - Bolt (6x12) BOLT(6X12) - Bolt (6x12)
60 01550-06253-000 Bolt (6x25) Bolt (6x25)
60 01550-0625B-000 Bolt - Bolt, head cover Bolt - Bolt, head cover
60 01550-0625A-000 Bolt Bolt
