Search › Compare › CN31S × CP31S
CN31S
Suzuki CERVO-MODE — 21 of 2,507 shared
CP31S
Suzuki CERVO-MODE — 21 of 2,581 shared

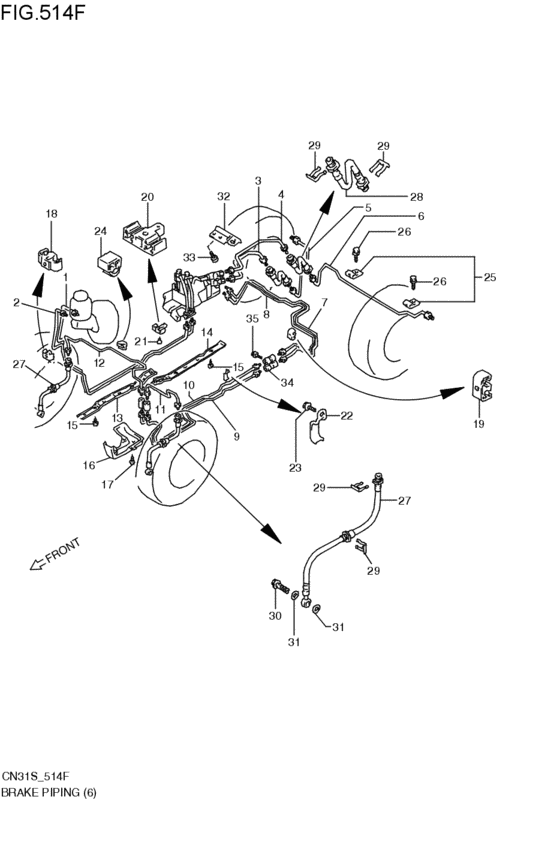

brakes piping (4ABSシヨウ; DOHC:T1:4ABS; 1990-06-01~1991-08-01) 21 / 45
| # | OEM | CN31S | CP31S |
|---|---|---|---|
| 15 | 03541-05103-000 | Screw5 x 10 | Screw5 x 10 |
| 15 | 03541-0510B-000 | SCREW | SCREW |
| 15 | 03541-0510A-000 | SCREW - Screw, rr cover | SCREW - Screw, rr cover |
| 21 | 02122-06203-000 | Screw | Screw |
| 21 | 02122-0620B-000 | SCREW | SCREW |
| 21 | 02122-0620A-000 | SCREW | SCREW |
| 23 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 24 | 51752-70B00-000 | CLAMP,BK PIPE | CLAMP,BK PIPE |
| 25 | 09403-06409-000 | Clamp | Clamp |
| 27 | 51550-70B00-000 | HOSE,FR DISC FLEXIBLE | HOSE,FR DISC FLEXIBLE |
| 28 | 51570-50A50-000 | HOSE,RR BRAKE FLEXIBLE | HOSE,RR BRAKE FLEXIBLE |
| 29 | 09383-13001-000 | E RING | E RING |
| 29 | 09383-13003-000 | E-RING | E-RING |
| 30 | 09360-10026-000 | Union bolt | Union bolt |
| 31 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 33 | 01570-06123-000 | Bolt | Bolt |
| 33 | 01570-0612B-000 | Bolt - Bolt, upper | Bolt - Bolt, upper |
| 33 | 01570-0612A-000 | Bolt | Bolt |
| 35 | 01550-06253-000 | Bolt (6x25) | Bolt (6x25) |
| 35 | 01550-0625B-000 | Bolt - Bolt, head cover | Bolt - Bolt, head cover |
| 35 | 01550-0625A-000 | Bolt | Bolt |
| # | OEM | CN31S | CP31S |
|---|---|---|---|
| 6 | 01550-06253-000 | Bolt (6x25) | Bolt (6x25) |
| 6 | 01550-0625A-000 | Bolt | Bolt |
| 6 | 01550-0625B-000 | Bolt - Bolt, head cover | Bolt - Bolt, head cover |
| 16 | 01570-06123-000 | Bolt | Bolt |
| 16 | 01570-0612A-000 | Bolt | Bolt |
| 16 | 01570-0612B-000 | Bolt - Bolt, upper | Bolt - Bolt, upper |
| 14 | 02122-06203-000 | Screw | Screw |
| 14 | 02122-0620A-000 | SCREW | SCREW |
| 14 | 02122-0620B-000 | SCREW | SCREW |
| 18 | 03541-05103-000 | Screw5 x 10 | Screw5 x 10 |
| 18 | 03541-0510A-000 | SCREW - Screw, rr cover | SCREW - Screw, rr cover |
| 18 | 03541-0510B-000 | SCREW | SCREW |
| 34 | 09132-06006-000 | SCREW(6X12) | SCREW(6X12) |
| 8 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 30 | 09360-10026-000 | Union bolt | Union bolt |
| 9 | 09383-13001-000 | E RING | E RING |
| 9 | 09383-13003-000 | E-RING | E-RING |
| 25 | 09403-06409-000 | Clamp | Clamp |
| 27 | 51550-70B00-000 | HOSE,FR DISC FLEXIBLE | HOSE,FR DISC FLEXIBLE |
| 28 | 51570-50A50-000 | HOSE,RR BRAKE FLEXIBLE | HOSE,RR BRAKE FLEXIBLE |
| 24 | 51752-70B00-000 | CLAMP,BK PIPE | CLAMP,BK PIPE |
