Search › Compare › CN31S × CP31S
CN31S
Suzuki CERVO-MODE — 29 of 2,507 shared
CP31S
Suzuki CERVO-MODE — 29 of 2,581 shared

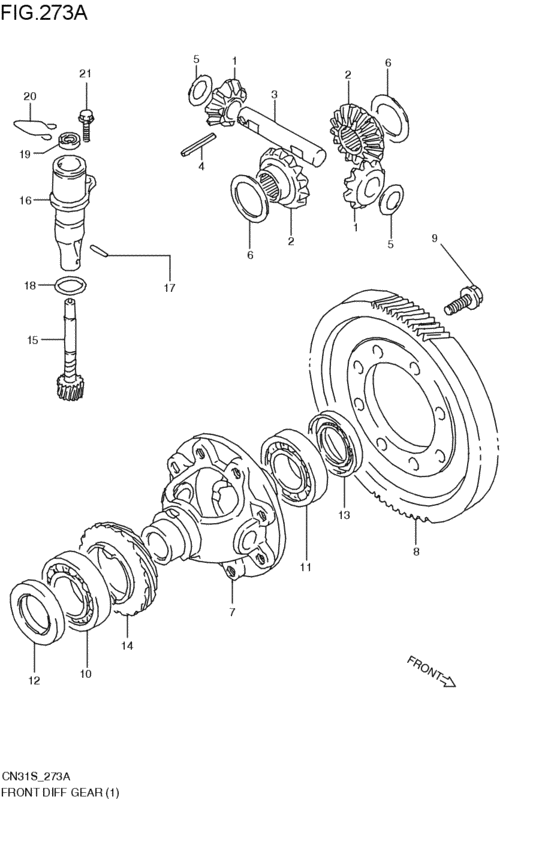

フロントデファレンシャルギヤ (2WD:5MT; 1990-06-01~1995-09-01) 29 / 36
| # | OEM | CN31S | CP31S |
|---|---|---|---|
| 1 | 27331-83020-000 | PINION,DIFFERENTIAL | PINION,DIFFERENTIAL |
| 1 | 27331-76A20-000 | PINION,DIFFERENTIAL | PINION,DIFFERENTIAL |
| 1 | 27331-76A21-000 | Pinion,differential | Pinion,differential |
| 2 | 27341-64B00-000 | GEAR DIFFOLD | GEAR DIFFOLD |
| 2 | 27341-76A21-000 | GEAR,DIFF | GEAR,DIFF |
| 2 | 27341-76A22-000 | Gear,diff | Gear,diff |
| 3 | 27351-64B20-000 | SHAFT,DIFF SIDE PINION | SHAFT,DIFF SIDE PINION |
| 4 | 09205-05007-000 | PIN,SPRING(5X36) | PIN,SPRING(5X36) |
| 5 | 09164-15006-000 | WASHER | WASHER |
| 6 | 09160-35002-000 | WASHER(35X46X1) | WASHER(35X46X1) |
| 6 | 09160-35003-000 | WASHER(35X46X1.1) | WASHER(35X46X1.1) |
| 6 | 09160-35006-000 | WASHER(35X46X0.9) | WASHER(35X46X0.9) |
| 9 | 09103-10189-000 | BOLT(10X23) - Bolt, starter one way clutch | BOLT(10X23) - Bolt, starter one way clutch |
| 12 | 27431-73B20-000 | OIL SEAL,DIFF SIDE - Seal, defferential side oil | OIL SEAL,DIFF SIDE - Seal, defferential side oil |
| 12 | 27431-73H30-000 | SEAL,OIL | SEAL,OIL |
| 14 | 26121-60B00-000 | GEAR,SPDOM DRIVE | GEAR,SPDOM DRIVE |
| 14 | 26121-73B00-000 | GEAR,SPDOM DRIVE | GEAR,SPDOM DRIVE |
| 15 | 26131-60B02-000 | GEAR,SPDOM DRIVEN | GEAR,SPDOM DRIVEN |
| 15 | 26131-73B02-000 | GEAR,SPDOM DRIVEN | GEAR,SPDOM DRIVEN |
| 16 | 29431-74C00-000 | CASE,SPDOM DRIVEN GEAR | CASE,SPDOM DRIVEN GEAR |
| 17 | 09205-03036-000 | スプリングピン,3X16 | スプリングピン,3X16 |
| 17 | 09205-03012-000 | PIN,SPRING(3X16) - Pin, gear | PIN,SPRING(3X16) - Pin, gear |
| 18 | 09280-16012-000 | O RING(D:3.6,ID:15.4) | O RING(D:3.6,ID:15.4) |
| 19 | 09282-08001-000 | SEAL,OIL(8X16X5) | SEAL,OIL(8X16X5) |
| 20 | 26191-61D01-000 | クリップ,スピードメータケース | クリップ,スピードメータケース |
| 20 | 26191-61D0V-000 | CLIP,SPEEDOMETER CASE | CLIP,SPEEDOMETER CASE |
| 21 | 01550-06163-000 | Bolt | Bolt |
| 21 | 01550-0616B-000 | Bolt | Bolt |
| 21 | 01550-0616A-000 | Bolt | Bolt |
| # | OEM | CN31S | CP31S |
|---|---|---|---|
| 31 | 01550-06163-000 | Bolt | Bolt |
| 31 | 01550-0616A-000 | Bolt | Bolt |
| 31 | 01550-0616B-000 | Bolt | Bolt |
| 9 | 09103-10189-000 | BOLT(10X23) - Bolt, starter one way clutch | BOLT(10X23) - Bolt, starter one way clutch |
| 6 | 09160-35002-000 | WASHER(35X46X1) | WASHER(35X46X1) |
| 6 | 09160-35003-000 | WASHER(35X46X1.1) | WASHER(35X46X1.1) |
| 6 | 09160-35006-000 | WASHER(35X46X0.9) | WASHER(35X46X0.9) |
| 5 | 09164-15006-000 | WASHER | WASHER |
| 17 | 09205-03012-000 | PIN,SPRING(3X16) - Pin, gear | PIN,SPRING(3X16) - Pin, gear |
| 17 | 09205-03036-000 | スプリングピン,3X16 | スプリングピン,3X16 |
| 4 | 09205-05007-000 | PIN,SPRING(5X36) | PIN,SPRING(5X36) |
| 18 | 09280-16012-000 | O RING(D:3.6,ID:15.4) | O RING(D:3.6,ID:15.4) |
| 19 | 09282-08001-000 | SEAL,OIL(8X16X5) | SEAL,OIL(8X16X5) |
| 14 | 26121-60B00-000 | GEAR,SPDOM DRIVE | GEAR,SPDOM DRIVE |
| 14 | 26121-73B00-000 | GEAR,SPDOM DRIVE | GEAR,SPDOM DRIVE |
| 15 | 26131-60B02-000 | GEAR,SPDOM DRIVEN | GEAR,SPDOM DRIVEN |
| 15 | 26131-73B02-000 | GEAR,SPDOM DRIVEN | GEAR,SPDOM DRIVEN |
| 20 | 26191-61D01-000 | クリップ,スピードメータケース | クリップ,スピードメータケース |
| 20 | 26191-61D0V-000 | CLIP,SPEEDOMETER CASE | CLIP,SPEEDOMETER CASE |
| 1 | 27331-76A20-000 | PINION,DIFFERENTIAL | PINION,DIFFERENTIAL |
| 1 | 27331-76A21-000 | Pinion,differential | Pinion,differential |
| 1 | 27331-83020-000 | PINION,DIFFERENTIAL | PINION,DIFFERENTIAL |
| 2 | 27341-64B00-000 | GEAR DIFFOLD | GEAR DIFFOLD |
| 2 | 27341-76A21-000 | GEAR,DIFF | GEAR,DIFF |
| 2 | 27341-76A22-000 | Gear,diff | Gear,diff |
| 3 | 27351-64B20-000 | SHAFT,DIFF SIDE PINION | SHAFT,DIFF SIDE PINION |
| 12 | 27431-73B20-000 | OIL SEAL,DIFF SIDE - Seal, defferential side oil | OIL SEAL,DIFF SIDE - Seal, defferential side oil |
| 12 | 27431-73H30-000 | SEAL,OIL | SEAL,OIL |
| 16 | 29431-74C00-000 | CASE,SPDOM DRIVEN GEAR | CASE,SPDOM DRIVEN GEAR |
