Search › Compare › CM22V × CP31S
CM22V
Suzuki ALTO-A-STAR-CELERIO — 59 of 3,064 shared
CP31S
Suzuki CERVO-MODE — 59 of 2,581 shared

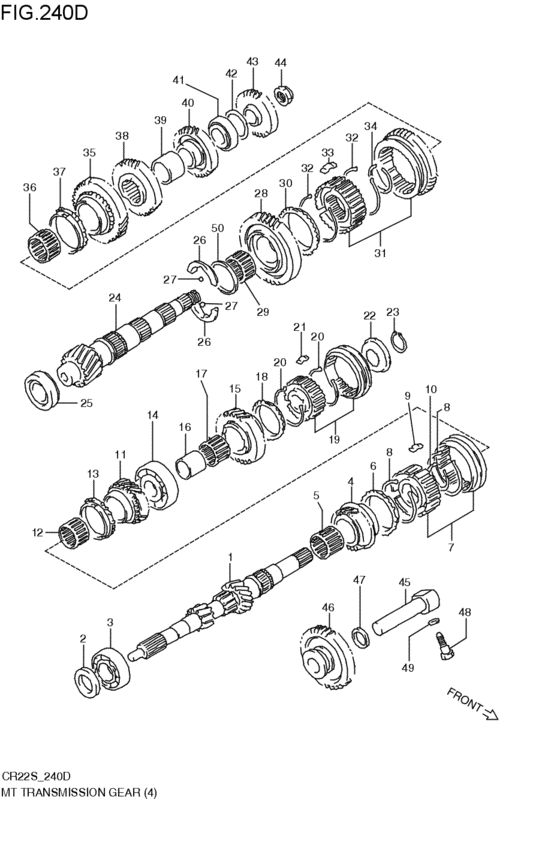

mt - transmission gear (5MT:4WD:CARB; 1991-08-01~1994-11-01) 59 / 74
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 2 | 24151-73B01-000 | SEAL,INPUT SHAFT OIL | SEAL,INPUT SHAFT OIL |
| 3 | 09262-20098-000 | ベアリング,20X47X14 | ベアリング,20X47X14 |
| 3 | 09262-20099-000 | BEARING(20X47X14) | BEARING(20X47X14) |
| 5 | 09263-25053-000 | BEARING(25X30X23.8) | BEARING(25X30X23.8) |
| 6 | 24432-60B20-000 | RING,HIGH SPEED SYNC | RING,HIGH SPEED SYNC |
| 7 | 24410-63B20-000 | UB ASSY HIGH SPEED SYNC | UB ASSY HIGH SPEED SYNC |
| 7 | 24410-72J41-000 | HUB ASSY,HIGH SPEED SYNC | HUB ASSY,HIGH SPEED SYNC |
| 8 | 24442-60B00-000 | SPRING,HIGH SPEED SYNC | SPRING,HIGH SPEED SYNC |
| 9 | 24472-60B00-000 | KEY,SYNCHRONIZER - Key, low speed sync | KEY,SYNCHRONIZER - Key, low speed sync |
| 10 | 24452-60B00-000 | CIRCLIP,HIGH SPEED SYNC HUB | CIRCLIP,HIGH SPEED SYNC HUB |
| 14 | 09262-20100-000 | ベアリング,20X62X16 | ベアリング,20X62X16 |
| 14 | 24126-83E00-000 | BEARING,INPUT SHAFT,L | BEARING,INPUT SHAFT,L |
| 16 | 24119-73B51-000 | SPACER,INPUT SHAFT 5TH GEAR | SPACER,INPUT SHAFT 5TH GEAR |
| 18 | 24432-84041-000 | RING,5TH SPEED SYNC | RING,5TH SPEED SYNC |
| 19 | 24420-60B51-000 | HUB ASSY 5TH SPEED SYN | HUB ASSY 5TH SPEED SYN |
| 19 | 24420-72J20-000 | HUB ASSY,5TH SPEED SYNC | HUB ASSY,5TH SPEED SYNC |
| 20 | 24443-60B50-000 | SPRING,5TH SPEED SYNC | SPRING,5TH SPEED SYNC |
| 21 | 24473-60B00-000 | KEY | KEY |
| 21 | 24473-72J00-000 | KEY,5TH SPEED SYNC | KEY,5TH SPEED SYNC |
| 22 | 24415-60B50-000 | Plate,5th sync hub | Plate,5th sync hub |
| 22 | 24415-60B51-000 | PLATE,5TH SYNC HUB | PLATE,5TH SYNC HUB |
| 23 | 09380-19004-000 | RING,SNAP | RING,SNAP |
| 24 | 24131-74B51-000 | シャフト,トランスミッションカウンタ | シャフト,トランスミッションカウンタ |
| 24 | 24131-74B52-000 | シャフト,トランスミッションカウンタ | シャフト,トランスミッションカウンタ |
| 25 | 09265-25036-000 | BEARING(25X47X17) | BEARING(25X47X17) |
| 26 | 24315-74B00-000 | Cリング,カウンタシャフト | Cリング,カウンタシャフト |
| 27 | 06111-04004-000 | BALL | BALL |
| 29 | 09263-30034-000 | ベアリング,30X35X20.3 | ベアリング,30X35X20.3 |
| 30 | 24431-60B00-000 | RING,1ST GEAR SYNC | RING,1ST GEAR SYNC |
| 32 | 24441-60B00-000 | SPRING,LOW SPEED SYNC | SPRING,LOW SPEED SYNC |
| 33 | 24471-60B00-000 | KEY,LOW SPEED SYNCHRONIZER | KEY,LOW SPEED SYNCHRONIZER |
| 34 | 24451-60B00-000 | CIRCLIP | CIRCLIP |
| 36 | 09263-30030-000 | BEARING(30X35X24.8) | BEARING(30X35X24.8) |
| 37 | 24431-63B20-000 | RING,2ND GEAR SYNC | RING,2ND GEAR SYNC |
| 39 | 24336-60B00-000 | SPACER,3RD&4TH GEAR | SPACER,3RD&4TH GEAR |
| 41 | 09265-20005-000 | BEARING(20X42X15) | BEARING(20X42X15) |
| 42 | 09160-33003-000 | WASHER(33.5X41.8X1) - Washer (t:1.00) | WASHER(33.5X41.8X1) - Washer (t:1.00) |
| 42 | 09160-33004-000 | WASHER(33.5X41.8X1.05) - Washer (t:1.05) | WASHER(33.5X41.8X1.05) - Washer (t:1.05) |
| 42 | 09160-33005-000 | WASHER(33.5X41.8X1.1) - Washer (t:1.10) | WASHER(33.5X41.8X1.1) - Washer (t:1.10) |
| 42 | 09160-33006-000 | WASHER(33.5X41.8X1.15) - Washer (t:1.15) | WASHER(33.5X41.8X1.15) - Washer (t:1.15) |
| 42 | 09170-33421-040 | SHIM(33.5X41.8X0.4) | SHIM(33.5X41.8X0.4) |
| 42 | 09170-33421-045 | SHIM(33.5X41.8X0.45) | SHIM(33.5X41.8X0.45) |
| 42 | 09170-33421-050 | SHIM(33.5X41.8X0.5) | SHIM(33.5X41.8X0.5) |
| 42 | 09181-33001-000 | SHIM(33.5X41.8X0.55) - Washer (t:1.5) | SHIM(33.5X41.8X0.55) - Washer (t:1.5) |
| 42 | 09181-33002-000 | SHIM(33.5X41.8X0.6) - Shim (t:0.6) | SHIM(33.5X41.8X0.6) - Shim (t:0.6) |
| 42 | 09181-33003-000 | SHIM(33.5X41.8X0.65) - Waserh (t:0.65) | SHIM(33.5X41.8X0.65) - Waserh (t:0.65) |
| 42 | 09181-33004-000 | SHIM(33.5X41.8X0.7) - Shim (t:0.7) | SHIM(33.5X41.8X0.7) - Shim (t:0.7) |
| 42 | 09181-33005-000 | SHIM(33.5X41.8X0.75) - Washer (t:0.75) | SHIM(33.5X41.8X0.75) - Washer (t:0.75) |
| 42 | 09181-33006-000 | SHIM(33.5X41.8X0.8) - Shim (t:0.8) | SHIM(33.5X41.8X0.8) - Shim (t:0.8) |
| 42 | 09181-33007-000 | SHIM(33.5X41.8X0.85) - Washer (t:0.85) | SHIM(33.5X41.8X0.85) - Washer (t:0.85) |
| 42 | 09181-33008-000 | SHIM(33.5X41.8X0.9) - Shim (t:0.9) | SHIM(33.5X41.8X0.9) - Shim (t:0.9) |
| 42 | 09181-33009-000 | SHIM(33.5X41.8X0.95) - Washer (t:0.95) | SHIM(33.5X41.8X0.95) - Washer (t:0.95) |
| 44 | 09159-16004-000 | NUT | NUT |
| 45 | 24550-63D00-000 | SHAFT,T/M REVERSE GEAR | SHAFT,T/M REVERSE GEAR |
| 47 | 09161-16010-000 | WASHER(16X24X3) | WASHER(16X24X3) |
| 48 | 24565-60B00-000 | BOLT,REVERSE SHAFT | BOLT,REVERSE SHAFT |
| 49 | 09168-09001-000 | Gasket,9.2x17x1.6 | Gasket,9.2x17x1.6 |
| 49 | 09168-08030-000 | GASKET(8.2X17X1) | GASKET(8.2X17X1) |
| 50 | 24316-74B00-000 | ワッシャ | ワッシャ |
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 27 | 06111-04004-000 | BALL | BALL |
| 44 | 09159-16004-000 | NUT | NUT |
| 42 | 09160-33003-000 | WASHER(33.5X41.8X1) - Washer (t:1.00) | WASHER(33.5X41.8X1) - Washer (t:1.00) |
| 42 | 09160-33004-000 | WASHER(33.5X41.8X1.05) - Washer (t:1.05) | WASHER(33.5X41.8X1.05) - Washer (t:1.05) |
| 42 | 09160-33005-000 | WASHER(33.5X41.8X1.1) - Washer (t:1.10) | WASHER(33.5X41.8X1.1) - Washer (t:1.10) |
| 42 | 09160-33006-000 | WASHER(33.5X41.8X1.15) - Washer (t:1.15) | WASHER(33.5X41.8X1.15) - Washer (t:1.15) |
| 47 | 09161-16010-000 | WASHER(16X24X3) | WASHER(16X24X3) |
| 49 | 09168-08030-000 | GASKET(8.2X17X1) | GASKET(8.2X17X1) |
| 49 | 09168-09001-000 | Gasket,9.2x17x1.6 | Gasket,9.2x17x1.6 |
| 42 | 09170-33421-040 | SHIM(33.5X41.8X0.4) | SHIM(33.5X41.8X0.4) |
| 42 | 09170-33421-045 | SHIM(33.5X41.8X0.45) | SHIM(33.5X41.8X0.45) |
| 42 | 09170-33421-050 | SHIM(33.5X41.8X0.5) | SHIM(33.5X41.8X0.5) |
| 42 | 09181-33001-000 | SHIM(33.5X41.8X0.55) - Washer (t:1.5) | SHIM(33.5X41.8X0.55) - Washer (t:1.5) |
| 42 | 09181-33002-000 | SHIM(33.5X41.8X0.6) - Shim (t:0.6) | SHIM(33.5X41.8X0.6) - Shim (t:0.6) |
| 42 | 09181-33003-000 | SHIM(33.5X41.8X0.65) - Waserh (t:0.65) | SHIM(33.5X41.8X0.65) - Waserh (t:0.65) |
| 42 | 09181-33004-000 | SHIM(33.5X41.8X0.7) - Shim (t:0.7) | SHIM(33.5X41.8X0.7) - Shim (t:0.7) |
| 42 | 09181-33005-000 | SHIM(33.5X41.8X0.75) - Washer (t:0.75) | SHIM(33.5X41.8X0.75) - Washer (t:0.75) |
| 42 | 09181-33006-000 | SHIM(33.5X41.8X0.8) - Shim (t:0.8) | SHIM(33.5X41.8X0.8) - Shim (t:0.8) |
| 42 | 09181-33007-000 | SHIM(33.5X41.8X0.85) - Washer (t:0.85) | SHIM(33.5X41.8X0.85) - Washer (t:0.85) |
| 42 | 09181-33008-000 | SHIM(33.5X41.8X0.9) - Shim (t:0.9) | SHIM(33.5X41.8X0.9) - Shim (t:0.9) |
| 42 | 09181-33009-000 | SHIM(33.5X41.8X0.95) - Washer (t:0.95) | SHIM(33.5X41.8X0.95) - Washer (t:0.95) |
| 3 | 09262-20098-000 | ベアリング,20X47X14 | ベアリング,20X47X14 |
| 3 | 09262-20099-000 | BEARING(20X47X14) | BEARING(20X47X14) |
| 14 | 09262-20100-000 | ベアリング,20X62X16 | ベアリング,20X62X16 |
| 5 | 09263-25053-000 | BEARING(25X30X23.8) | BEARING(25X30X23.8) |
| 36 | 09263-30030-000 | BEARING(30X35X24.8) | BEARING(30X35X24.8) |
| 29 | 09263-30034-000 | ベアリング,30X35X20.3 | ベアリング,30X35X20.3 |
| 41 | 09265-20005-000 | BEARING(20X42X15) | BEARING(20X42X15) |
| 25 | 09265-25036-000 | BEARING(25X47X17) | BEARING(25X47X17) |
| 23 | 09380-19004-000 | RING,SNAP | RING,SNAP |
| 16 | 24119-73B51-000 | SPACER,INPUT SHAFT 5TH GEAR | SPACER,INPUT SHAFT 5TH GEAR |
| 14 | 24126-83E00-000 | BEARING,INPUT SHAFT,L | BEARING,INPUT SHAFT,L |
| 24 | 24131-74B51-000 | シャフト,トランスミッションカウンタ | シャフト,トランスミッションカウンタ |
| 24 | 24131-74B52-000 | シャフト,トランスミッションカウンタ | シャフト,トランスミッションカウンタ |
| 2 | 24151-73B01-000 | SEAL,INPUT SHAFT OIL | SEAL,INPUT SHAFT OIL |
| 26 | 24315-74B00-000 | Cリング,カウンタシャフト | Cリング,カウンタシャフト |
| 50 | 24316-74B00-000 | ワッシャ | ワッシャ |
| 39 | 24336-60B00-000 | SPACER,3RD&4TH GEAR | SPACER,3RD&4TH GEAR |
| 7 | 24410-63B20-000 | UB ASSY HIGH SPEED SYNC | UB ASSY HIGH SPEED SYNC |
| 7 | 24410-72J41-000 | HUB ASSY,HIGH SPEED SYNC | HUB ASSY,HIGH SPEED SYNC |
| 22 | 24415-60B50-000 | Plate,5th sync hub | Plate,5th sync hub |
| 22 | 24415-60B51-000 | PLATE,5TH SYNC HUB | PLATE,5TH SYNC HUB |
| 19 | 24420-60B51-000 | HUB ASSY 5TH SPEED SYN | HUB ASSY 5TH SPEED SYN |
| 19 | 24420-72J20-000 | HUB ASSY,5TH SPEED SYNC | HUB ASSY,5TH SPEED SYNC |
| 30 | 24431-60B00-000 | RING,1ST GEAR SYNC | RING,1ST GEAR SYNC |
| 37 | 24431-63B20-000 | RING,2ND GEAR SYNC | RING,2ND GEAR SYNC |
| 6 | 24432-60B20-000 | RING,HIGH SPEED SYNC | RING,HIGH SPEED SYNC |
| 18 | 24432-84041-000 | RING,5TH SPEED SYNC | RING,5TH SPEED SYNC |
| 32 | 24441-60B00-000 | SPRING,LOW SPEED SYNC | SPRING,LOW SPEED SYNC |
| 8 | 24442-60B00-000 | SPRING,HIGH SPEED SYNC | SPRING,HIGH SPEED SYNC |
| 20 | 24443-60B50-000 | SPRING,5TH SPEED SYNC | SPRING,5TH SPEED SYNC |
| 34 | 24451-60B00-000 | CIRCLIP | CIRCLIP |
| 10 | 24452-60B00-000 | CIRCLIP,HIGH SPEED SYNC HUB | CIRCLIP,HIGH SPEED SYNC HUB |
| 33 | 24471-60B00-000 | KEY,LOW SPEED SYNCHRONIZER | KEY,LOW SPEED SYNCHRONIZER |
| 9 | 24472-60B00-000 | KEY,SYNCHRONIZER - Key, low speed sync | KEY,SYNCHRONIZER - Key, low speed sync |
| 21 | 24473-60B00-000 | KEY | KEY |
| 21 | 24473-72J00-000 | KEY,5TH SPEED SYNC | KEY,5TH SPEED SYNC |
| 45 | 24550-63D00-000 | SHAFT,T/M REVERSE GEAR | SHAFT,T/M REVERSE GEAR |
| 48 | 24565-60B00-000 | BOLT,REVERSE SHAFT | BOLT,REVERSE SHAFT |
