Search › Compare › CM22V × CP31S
CM22V
Suzuki ALTO-A-STAR-CELERIO — 41 of 3,064 shared
CP31S
Suzuki CERVO-MODE — 41 of 2,581 shared

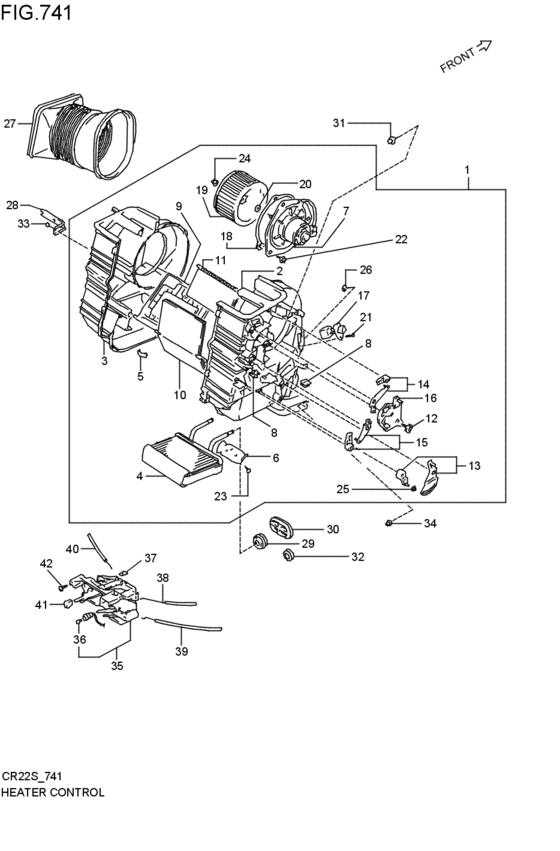

heater control (1991-08-01~1994-11-01) 41 / 58
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 3 | 74112-60D00-000 | CASE,HTR,L | CASE,HTR,L |
| 4 | 74120-70B00-000 | UNIT,RADIATOR S/ASSY | UNIT,RADIATOR S/ASSY |
| 5 | 74133-82000-000 | CLAMP,CASE | CLAMP,CASE |
| 6 | 74141-70B00-000 | Clamp,pipe | Clamp,pipe |
| 7 | 74150-70B00-000 | MOTOR,FAN | MOTOR,FAN |
| 8 | 74151-50F00-000 | CABLE | CABLE |
| 9 | 74171-70B00-000 | DOOR,AIR MIXTURE | DOOR,AIR MIXTURE |
| 10 | 74172-70B02-000 | DOOR ASSY,HEAT | DOOR ASSY,HEAT |
| 11 | 74173-70B02-000 | ドアアッシ,ベント | ドアアッシ,ベント |
| 11 | 74173-50F00-000 | DOOR ASSY,VENT | DOOR ASSY,VENT |
| 12 | 74183-82005-000 | SCREW,LINK | SCREW,LINK |
| 13 | 74190-72B00-000 | レバーアッシ,テンパレチャ | レバーアッシ,テンパレチャ |
| 13 | 74190-72B01-000 | LEVER ASSY,TEMP | LEVER ASSY,TEMP |
| 17 | 74140-60D00-000 | RESISTER,BLOWER | RESISTER,BLOWER |
| 18 | 88153-79000-000 | PACKING,MOTOR | PACKING,MOTOR |
| 19 | 88190-79000-000 | FAN,BLOWER | FAN,BLOWER |
| 20 | 74131-82000-000 | ワッシャ,ファン | ワッシャ,ファン |
| 20 | 17112-82000-000 | WASHER,FAN | WASHER,FAN |
| 21 | 03211-04123-000 | Screw | Screw |
| 21 | 03211-0412A-000 | SCREW | SCREW |
| 22 | 03211-05163-000 | Screw - Tapping screw | Screw - Tapping screw |
| 22 | 03211-0516A-000 | SCREW | SCREW |
| 23 | 03511-05123-000 | SCREW 5X12 | SCREW 5X12 |
| 23 | 03511-0512A-000 | SCREW | SCREW |
| 24 | 08316-10053-000 | Nut | Nut |
| 24 | 08316-1005A-000 | NUT | NUT |
| 25 | 74146-70B00-000 | BUSH,AIR MIX LEVER | BUSH,AIR MIX LEVER |
| 26 | 74189-70B00-000 | NUT,SPEED | NUT,SPEED |
| 27 | 74611-70B01-000 | ダクト,エア | ダクト,エア |
| 27 | 74611-70B02-000 | DUCT,AIR | DUCT,AIR |
| 29 | 74812-60B00-000 | GROMMET,HTR | GROMMET,HTR |
| 30 | 74812-70B01-000 | GROMMET,A/C HOLE | GROMMET,A/C HOLE |
| 32 | 09250-25007-000 | CAP(OD:25.0) | CAP(OD:25.0) |
| 33 | 03541-05103-000 | Screw5 x 10 | Screw5 x 10 |
| 33 | 03541-0510B-000 | SCREW | SCREW |
| 33 | 03541-0510A-000 | SCREW - Screw, rr cover | SCREW - Screw, rr cover |
| 34 | 08361-25063-000 | Nut | Nut |
| 34 | 08361-2506A-000 | NUT | NUT |
| 37 | 74441-70B00-000 | HOLDER,HEATER CABLE | HOLDER,HEATER CABLE |
| 42 | 03541-05163-000 | Screw | Screw |
| 42 | 03541-0516A-000 | SCREW | SCREW |
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 21 | 03211-04123-000 | Screw | Screw |
| 21 | 03211-0412A-000 | SCREW | SCREW |
| 22 | 03211-05163-000 | Screw - Tapping screw | Screw - Tapping screw |
| 22 | 03211-0516A-000 | SCREW | SCREW |
| 23 | 03511-05123-000 | SCREW 5X12 | SCREW 5X12 |
| 23 | 03511-0512A-000 | SCREW | SCREW |
| 18 | 03541-05103-000 | Screw5 x 10 | Screw5 x 10 |
| 18 | 03541-0510A-000 | SCREW - Screw, rr cover | SCREW - Screw, rr cover |
| 18 | 03541-0510B-000 | SCREW | SCREW |
| 42 | 03541-05163-000 | Screw | Screw |
| 42 | 03541-0516A-000 | SCREW | SCREW |
| 22 | 08316-10053-000 | Nut | Nut |
| 22 | 08316-1005A-000 | NUT | NUT |
| 6 | 08361-25063-000 | Nut | Nut |
| 6 | 08361-2506A-000 | NUT | NUT |
| 32 | 09250-25007-000 | CAP(OD:25.0) | CAP(OD:25.0) |
| 20 | 17112-82000-000 | WASHER,FAN | WASHER,FAN |
| 3 | 74112-60D00-000 | CASE,HTR,L | CASE,HTR,L |
| 4 | 74120-70B00-000 | UNIT,RADIATOR S/ASSY | UNIT,RADIATOR S/ASSY |
| 20 | 74131-82000-000 | ワッシャ,ファン | ワッシャ,ファン |
| 16 | 74133-82000-000 | CLAMP,CASE | CLAMP,CASE |
| 17 | 74140-60D00-000 | RESISTER,BLOWER | RESISTER,BLOWER |
| 6 | 74141-70B00-000 | Clamp,pipe | Clamp,pipe |
| 25 | 74146-70B00-000 | BUSH,AIR MIX LEVER | BUSH,AIR MIX LEVER |
| 7 | 74150-70B00-000 | MOTOR,FAN | MOTOR,FAN |
| 8 | 74151-50F00-000 | CABLE | CABLE |
| 9 | 74171-70B00-000 | DOOR,AIR MIXTURE | DOOR,AIR MIXTURE |
| 10 | 74172-70B02-000 | DOOR ASSY,HEAT | DOOR ASSY,HEAT |
| 11 | 74173-50F00-000 | DOOR ASSY,VENT | DOOR ASSY,VENT |
| 11 | 74173-70B02-000 | ドアアッシ,ベント | ドアアッシ,ベント |
| 12 | 74183-82005-000 | SCREW,LINK | SCREW,LINK |
| 26 | 74189-70B00-000 | NUT,SPEED | NUT,SPEED |
| 13 | 74190-72B00-000 | レバーアッシ,テンパレチャ | レバーアッシ,テンパレチャ |
| 13 | 74190-72B01-000 | LEVER ASSY,TEMP | LEVER ASSY,TEMP |
| 37 | 74441-70B00-000 | HOLDER,HEATER CABLE | HOLDER,HEATER CABLE |
| 27 | 74611-70B01-000 | ダクト,エア | ダクト,エア |
| 27 | 74611-70B02-000 | DUCT,AIR | DUCT,AIR |
| 29 | 74812-60B00-000 | GROMMET,HTR | GROMMET,HTR |
| 30 | 74812-70B01-000 | GROMMET,A/C HOLE | GROMMET,A/C HOLE |
| 18 | 88153-79000-000 | PACKING,MOTOR | PACKING,MOTOR |
| 19 | 88190-79000-000 | FAN,BLOWER | FAN,BLOWER |
