Search › Compare › CM22V × CP31S
CM22V
Suzuki ALTO-A-STAR-CELERIO — 12 of 3,064 shared
CP31S
Suzuki CERVO-MODE — 12 of 2,581 shared

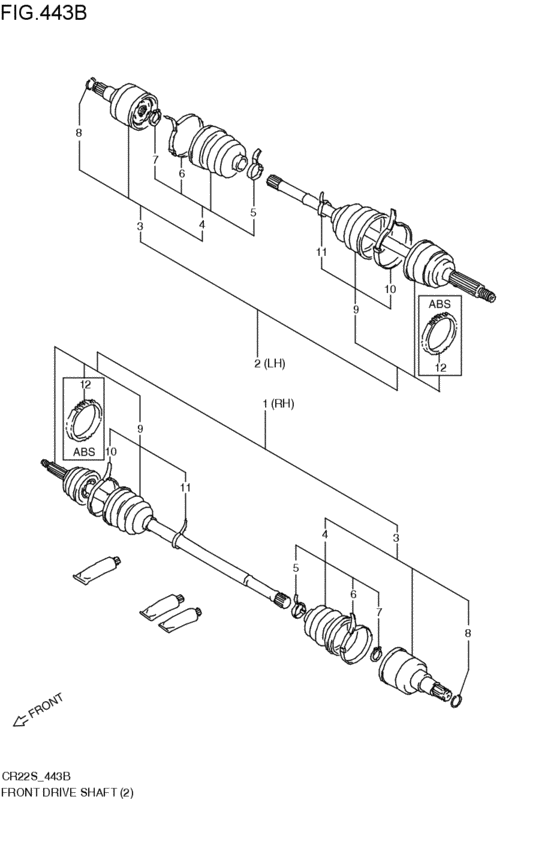

front-drive shaft (5MT:TURBO; 1991-08-01~1994-11-01) 12 / 14
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 1 | 44101-60DE0-000 | Shaft assy,front drive,r | Shaft assy,front drive,r |
| 2 | 44102-60DE0-000 | Shaft assy,front drive,l | Shaft assy,front drive,l |
| 3 | 44117-70B50-000 | Joint assy,diff side | Joint assy,diff side |
| 4 | 44119-69D01-000 | BOOT SET,DIFF SIDE | BOOT SET,DIFF SIDE |
| 4 | 44119-69D02-000 | BOOT SET,DIFF SIDE | BOOT SET,DIFF SIDE |
| 5 | 44124-86011-000 | BAND,BOOT | BAND,BOOT |
| 6 | 44121-86010-000 | BAND,BOOT | BAND,BOOT |
| 7 | 44111-78010-000 | RING,SNAP | RING,SNAP |
| 8 | 09381-24001-000 | RING,SNAP - Ring (od:24,d:1.6) | RING,SNAP - Ring (od:24,d:1.6) |
| 9 | 44118-70B50-000 | BOOT SET,WHEEL SIDE | BOOT SET,WHEEL SIDE |
| 9 | 44118-70B51-000 | BOOT SET,WHEEL SIDE | BOOT SET,WHEEL SIDE |
| 10 | 44122-86010-000 | BAND,BOOT - Clamp, differential side outer boot | BAND,BOOT - Clamp, differential side outer boot |
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 8 | 09381-24001-000 | RING,SNAP - Ring (od:24,d:1.6) | RING,SNAP - Ring (od:24,d:1.6) |
| 1 | 44101-60DE0-000 | Shaft assy,front drive,r | Shaft assy,front drive,r |
| 2 | 44102-60DE0-000 | Shaft assy,front drive,l | Shaft assy,front drive,l |
| 7 | 44111-78010-000 | RING,SNAP | RING,SNAP |
| 3 | 44117-70B50-000 | Joint assy,diff side | Joint assy,diff side |
| 9 | 44118-70B50-000 | BOOT SET,WHEEL SIDE | BOOT SET,WHEEL SIDE |
| 9 | 44118-70B51-000 | BOOT SET,WHEEL SIDE | BOOT SET,WHEEL SIDE |
| 4 | 44119-69D01-000 | BOOT SET,DIFF SIDE | BOOT SET,DIFF SIDE |
| 4 | 44119-69D02-000 | BOOT SET,DIFF SIDE | BOOT SET,DIFF SIDE |
| 6 | 44121-86010-000 | BAND,BOOT | BAND,BOOT |
| 10 | 44122-86010-000 | BAND,BOOT - Clamp, differential side outer boot | BAND,BOOT - Clamp, differential side outer boot |
| 5 | 44124-86011-000 | BAND,BOOT | BAND,BOOT |
