Search › Compare › CM22V × CP31S
CM22V
Suzuki ALTO-A-STAR-CELERIO — 15 of 3,064 shared
CP31S
Suzuki CERVO-MODE — 15 of 2,581 shared

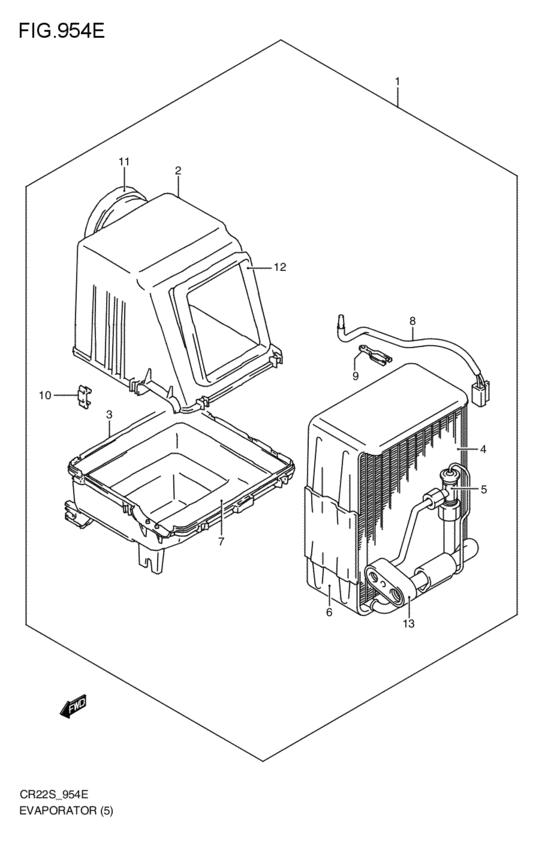

evaporator (エアコンオプション; V:(RS-R,GC,GU),S:(RS-R,RS-X); 1991-08-01~1994-11-01) 15 / 19
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 1 | 95400-70G21-000 | COOLING UNIT | COOLING UNIT |
| 2 | 95421-70B02-000 | CASE,EVAP,UPPER | CASE,EVAP,UPPER |
| 3 | 95422-70B02-000 | CASE,EVAP,LOWER | CASE,EVAP,LOWER |
| 4 | 95410-70G10-000 | CORE,EVAP | CORE,EVAP |
| 5 | 95431-72B00-000 | Valve,expansion | Valve,expansion |
| 5 | 95431-72B20-000 | VALVE,EXPANSION | VALVE,EXPANSION |
| 6 | 95463-70B00-000 | PACKING,CORE UPPER | PACKING,CORE UPPER |
| 7 | 95465-70B00-000 | パッキング,コア,ロア | パッキング,コア,ロア |
| 7 | 95465-70B01-000 | PACKING,CORE LOWER | PACKING,CORE LOWER |
| 8 | 95541-60B50-000 | THERMISTOR,EVAP | THERMISTOR,EVAP |
| 9 | 95452-70B21-000 | CLAMP,THERMISTER | CLAMP,THERMISTER |
| 10 | 74316-85500-000 | CLAMP - Clamp, case | CLAMP - Clamp, case |
| 11 | 95461-70B01-000 | PACKING,HEATER - Packing, unit outlet | PACKING,HEATER - Packing, unit outlet |
| 12 | 95462-70B01-000 | PACKING,AIR DAMPER | PACKING,AIR DAMPER |
| 13 | 95423-60F00-000 | CLAMP,EVAP PIPE | CLAMP,EVAP PIPE |
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 10 | 74316-85500-000 | CLAMP - Clamp, case | CLAMP - Clamp, case |
| 32 | 95400-70G21-000 | COOLING UNIT | COOLING UNIT |
| 4 | 95410-70G10-000 | CORE,EVAP | CORE,EVAP |
| 2 | 95421-70B02-000 | CASE,EVAP,UPPER | CASE,EVAP,UPPER |
| 3 | 95422-70B02-000 | CASE,EVAP,LOWER | CASE,EVAP,LOWER |
| 13 | 95423-60F00-000 | CLAMP,EVAP PIPE | CLAMP,EVAP PIPE |
| 5 | 95431-72B00-000 | Valve,expansion | Valve,expansion |
| 5 | 95431-72B20-000 | VALVE,EXPANSION | VALVE,EXPANSION |
| 9 | 95452-70B21-000 | CLAMP,THERMISTER | CLAMP,THERMISTER |
| 11 | 95461-70B01-000 | PACKING,HEATER - Packing, unit outlet | PACKING,HEATER - Packing, unit outlet |
| 12 | 95462-70B01-000 | PACKING,AIR DAMPER | PACKING,AIR DAMPER |
| 6 | 95463-70B00-000 | PACKING,CORE UPPER | PACKING,CORE UPPER |
| 7 | 95465-70B00-000 | パッキング,コア,ロア | パッキング,コア,ロア |
| 7 | 95465-70B01-000 | PACKING,CORE LOWER | PACKING,CORE LOWER |
| 8 | 95541-60B50-000 | THERMISTOR,EVAP | THERMISTOR,EVAP |
