Search › Compare › CM22V × CP31S
CM22V
Suzuki ALTO-A-STAR-CELERIO — 44 of 3,064 shared
CP31S
Suzuki CERVO-MODE — 44 of 2,581 shared

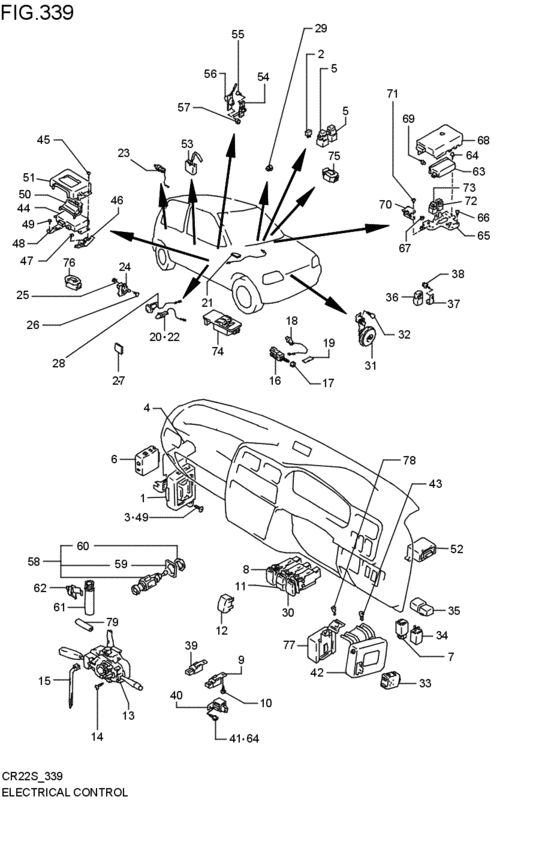

electrical control (ボデ- / インストルメントパネル; 1991-08-01~1994-11-01) 44 / 65
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 2 | 33926-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33927-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33928-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33929-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33930-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33931-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33932-80710-000 | RESISTER,CO ADJUST NO.7 | RESISTER,CO ADJUST NO.7 |
| 2 | 33933-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 3 | 03141-06123-000 | Screw 6x12 | Screw 6x12 |
| 3 | 03141-0612A-000 | SCREW | SCREW |
| 5 | 38860-72G00-000 | RELAY ASSY - Relay, air con | RELAY ASSY - Relay, air con |
| 8 | 37270-50E01-000 | SWITCH ASSY,FR FOG | SWITCH ASSY,FR FOG |
| 9 | 95572-63C00-000 | RELAY ASSY | RELAY ASSY |
| 10 | 03241-06123-000 | Screw | Screw |
| 10 | 03241-0612A-000 | SCREW | SCREW |
| 11 | 37370-50E01-000 | SWITCH ASSY,RR WIPER&WASHER | SWITCH ASSY,RR WIPER&WASHER |
| 14 | 02112-05123-000 | Screw 5x12 | Screw 5x12 |
| 14 | 02112-0512A-000 | SCREW | SCREW |
| 15 | 09407-18403-000 | Clamp, switch wire | Clamp, switch wire |
| 15 | 09407-18402-000 | CLAMP(L:165) - Clamp (l:165) | CLAMP(L:165) - Clamp (l:165) |
| 16 | 37740-60D01-000 | SWITCH ASSY,STOP LAMP | SWITCH ASSY,STOP LAMP |
| 17 | 09140-10043-000 | NUT - Nut, tie rod rh thread | NUT - Nut, tie rod rh thread |
| 18 | 37940-50A00-000 | SWITCH ASSY,PARKING BRAKE | SWITCH ASSY,PARKING BRAKE |
| 19 | 71891-84300-000 | カバー | カバー |
| 19 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire | COVER,HARNESS - Cover, roof wire |
| 20 | 37670-60A02-000 | SWITCH ASSY,DOOR | SWITCH ASSY,DOOR |
| 29 | 09250-14008-000 | CAP(OD:17.3) | CAP(OD:17.3) |
| 30 | 37860-50E01-000 | SWITCH ASSY,RR DEFOGGER | SWITCH ASSY,RR DEFOGGER |
| 32 | 01570-08123-000 | Bolt | Bolt |
| 32 | 01570-0812A-000 | Bolt | Bolt |
| 34 | 38610-76G00-000 | RELAY,TURN SIGNAL&4WAY - Relay, turnsignal & 4 way | RELAY,TURN SIGNAL&4WAY - Relay, turnsignal & 4 way |
| 37 | 38851-60D10-000 | BRACKET,RDTR FAN RELAY | BRACKET,RDTR FAN RELAY |
| 38 | 01550-06103-000 | Bolt, front | Bolt, front |
| 38 | 01550-0610B-000 | Bolt | Bolt |
| 38 | 01550-0610A-000 | Bolt | Bolt |
| 60 | 09160-23007-000 | WASHER(23X34X1) | WASHER(23X34X1) |
| 61 | 76470-84B00-000 | シグナルアッシ,フレヤ(KARRIT) | シグナルアッシ,フレヤ(KARRIT) |
| 62 | 39715-70B10-000 | HOLDER,SIGNAL FLARE | HOLDER,SIGNAL FLARE |
| 67 | 08316-10063-000 | Nut | Nut |
| 67 | 08316-1006B-000 | NUT | NUT |
| 69 | 09409-07308-5PK | CLIP(BLACK) | CLIP(BLACK) |
| 71 | 02122-06163-000 | Screw | Screw |
| 71 | 02122-0616B-000 | SCREW - Screw, intake pipe | SCREW - Screw, intake pipe |
| 71 | 02122-0616A-000 | SCREW | SCREW |
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 11 | 01550-06103-000 | Bolt, front | Bolt, front |
| 11 | 01550-0610A-000 | Bolt | Bolt |
| 11 | 01550-0610B-000 | Bolt | Bolt |
| 27 | 01570-08123-000 | Bolt | Bolt |
| 27 | 01570-0812A-000 | Bolt | Bolt |
| 9 | 02112-05123-000 | Screw 5x12 | Screw 5x12 |
| 9 | 02112-0512A-000 | SCREW | SCREW |
| 4 | 02122-06163-000 | Screw | Screw |
| 4 | 02122-0616A-000 | SCREW | SCREW |
| 4 | 02122-0616B-000 | SCREW - Screw, intake pipe | SCREW - Screw, intake pipe |
| 3 | 03141-06123-000 | Screw 6x12 | Screw 6x12 |
| 3 | 03141-0612A-000 | SCREW | SCREW |
| 10 | 03241-06123-000 | Screw | Screw |
| 10 | 03241-0612A-000 | SCREW | SCREW |
| 67 | 08316-10063-000 | Nut | Nut |
| 67 | 08316-1006B-000 | NUT | NUT |
| 17 | 09140-10043-000 | NUT - Nut, tie rod rh thread | NUT - Nut, tie rod rh thread |
| 60 | 09160-23007-000 | WASHER(23X34X1) | WASHER(23X34X1) |
| 29 | 09250-14008-000 | CAP(OD:17.3) | CAP(OD:17.3) |
| 15 | 09407-18402-000 | CLAMP(L:165) - Clamp (l:165) | CLAMP(L:165) - Clamp (l:165) |
| 15 | 09407-18403-000 | Clamp, switch wire | Clamp, switch wire |
| 69 | 09409-07308-5PK | CLIP(BLACK) | CLIP(BLACK) |
| 2 | 33926-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33927-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33928-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33929-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33930-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33931-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 2 | 33932-80710-000 | RESISTER,CO ADJUST NO.7 | RESISTER,CO ADJUST NO.7 |
| 2 | 33933-80710-000 | RESISTOR,CO ADJUST | RESISTOR,CO ADJUST |
| 36 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire | COVER,HARNESS - Cover, roof wire |
| 8 | 37270-50E01-000 | SWITCH ASSY,FR FOG | SWITCH ASSY,FR FOG |
| 11 | 37370-50E01-000 | SWITCH ASSY,RR WIPER&WASHER | SWITCH ASSY,RR WIPER&WASHER |
| 20 | 37670-60A02-000 | SWITCH ASSY,DOOR | SWITCH ASSY,DOOR |
| 16 | 37740-60D01-000 | SWITCH ASSY,STOP LAMP | SWITCH ASSY,STOP LAMP |
| 30 | 37860-50E01-000 | SWITCH ASSY,RR DEFOGGER | SWITCH ASSY,RR DEFOGGER |
| 18 | 37940-50A00-000 | SWITCH ASSY,PARKING BRAKE | SWITCH ASSY,PARKING BRAKE |
| 34 | 38610-76G00-000 | RELAY,TURN SIGNAL&4WAY - Relay, turnsignal & 4 way | RELAY,TURN SIGNAL&4WAY - Relay, turnsignal & 4 way |
| 37 | 38851-60D10-000 | BRACKET,RDTR FAN RELAY | BRACKET,RDTR FAN RELAY |
| 5 | 38860-72G00-000 | RELAY ASSY - Relay, air con | RELAY ASSY - Relay, air con |
| 62 | 39715-70B10-000 | HOLDER,SIGNAL FLARE | HOLDER,SIGNAL FLARE |
| 36 | 71891-84300-000 | カバー | カバー |
| 61 | 76470-84B00-000 | シグナルアッシ,フレヤ(KARRIT) | シグナルアッシ,フレヤ(KARRIT) |
| 9 | 95572-63C00-000 | RELAY ASSY | RELAY ASSY |
