Search › Compare › CM22V × CP31S
CM22V
Suzuki ALTO-A-STAR-CELERIO — 49 of 3,064 shared
CP31S
Suzuki CERVO-MODE — 49 of 2,581 shared

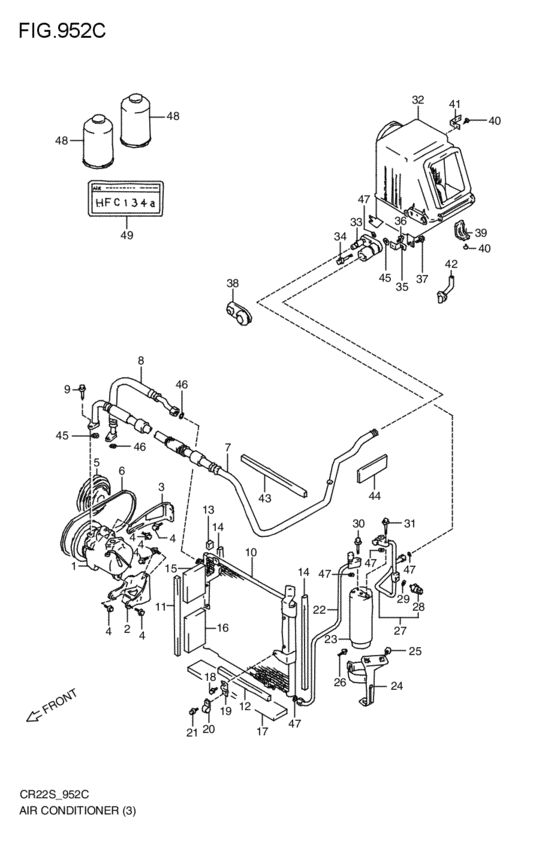

air-conditioner (エアコンオプション; V:(RS-R,GC,GU),S:(RS-R,RS-X); 1991-08-01~1994-11-01) 49 / 75
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 3 | 01550-0820B-000 | Bolt | Bolt |
| 3 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 3 | 01550-08203-000 | Bolt | Bolt |
| 9 | 01550-06253-000 | Bolt (6x25) | Bolt (6x25) |
| 9 | 01550-0625B-000 | Bolt - Bolt, head cover | Bolt - Bolt, head cover |
| 9 | 01550-0625A-000 | Bolt | Bolt |
| 11 | 95761-84040-000 | パッキング,コンデンサ | パッキング,コンデンサ |
| 11 | 95813-81A00-000 | PACKING,RADIATOR | PACKING,RADIATOR |
| 13 | 95812-65F00-000 | PACKING,CONDENSER | PACKING,CONDENSER |
| 14 | 95818-60F00-000 | パッキング,コンデンサ | パッキング,コンデンサ |
| 14 | 95462-80F00-000 | PACKING,AIR DAMPER | PACKING,AIR DAMPER |
| 18 | 01550-06163-000 | Bolt | Bolt |
| 18 | 01550-0616B-000 | Bolt | Bolt |
| 18 | 01550-0616A-000 | Bolt | Bolt |
| 19 | 95781-60D00-000 | STAY,SUCT PIPE CLAMP | STAY,SUCT PIPE CLAMP |
| 20 | 95771-50E00-000 | CLAMP,SUCTION PIPE | CLAMP,SUCTION PIPE |
| 21 | 01550-06123-000 | Bolt | Bolt |
| 21 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 21 | 01550-0612A-000 | Bolt | Bolt |
| 22 | 95731-65F00-000 | PIPE,CONDENSER OUTLET | PIPE,CONDENSER OUTLET |
| 23 | 95330-72B00-000 | RECEIVER DRYER | RECEIVER DRYER |
| 25 | 01550-06103-000 | Bolt, front | Bolt, front |
| 25 | 01550-0610B-000 | Bolt | Bolt |
| 25 | 01550-0610A-000 | Bolt | Bolt |
| 26 | 01550-06203-000 | Bolt | Bolt |
| 26 | 01550-0620B-000 | Bolt - Bolt, inspection cap | Bolt - Bolt, inspection cap |
| 27 | 95732-65F00-000 | Pipe,rcvr out | Pipe,rcvr out |
| 27 | 95732-65F01-000 | PIPE,RECEIVER OUTLET | PIPE,RECEIVER OUTLET |
| 28 | 95526-50G10-000 | Switch, dual pressure | Switch, dual pressure |
| 28 | 95526-50G30-000 | SWITCH,DUAL PRESSURE | SWITCH,DUAL PRESSURE |
| 31 | 01550-06303-000 | Bolt (6x30) - Bolt, head cover l:30 | Bolt (6x30) - Bolt, head cover l:30 |
| 31 | 01550-0630A-000 | Bolt | Bolt |
| 32 | 95400-70G21-000 | COOLING UNIT | COOLING UNIT |
| 35 | 95491-70B00-000 | BRACKET,COOLING UNIT | BRACKET,COOLING UNIT |
| 39 | 95493-70B00-000 | STAY,UNIT&HTR 2 | STAY,UNIT&HTR 2 |
| 40 | 03541-05103-000 | Screw5 x 10 | Screw5 x 10 |
| 40 | 03541-0510B-000 | SCREW | SCREW |
| 40 | 03541-0510A-000 | SCREW - Screw, rr cover | SCREW - Screw, rr cover |
| 41 | 95492-70B00-000 | STAY,UNIT&HEATER NO.1 | STAY,UNIT&HEATER NO.1 |
| 42 | 09401-13417-000 | CLIP | CLIP |
| 42 | 95481-60D10-000 | HOSE,DRAIN | HOSE,DRAIN |
| 42 | 09401-13413-000 | Clip - Clip, air hose no.1 | Clip - Clip, air hose no.1 |
| 43 | 95811-70B00-000 | PACKING,HOOD | PACKING,HOOD |
| 44 | 95821-70B00-000 | INSULATOR,BATTERY | INSULATOR,BATTERY |
| 45 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
| 46 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | O-RING,D:2.4 ID:10.8 |
| 47 | 95891-50G00-000 | O-RING,D:1.8 ID:6.7 | O-RING,D:1.8 ID:6.7 |
| 48 | 95794-50G00-000 | ドラム,レフリジェラント,200 | ドラム,レフリジェラント,200 |
| 49 | 95955-72B00-000 | LABEL,REFRIGERANT | LABEL,REFRIGERANT |
| # | OEM | CM22V | CP31S |
|---|---|---|---|
| 11 | 01550-06103-000 | Bolt, front | Bolt, front |
| 11 | 01550-0610A-000 | Bolt | Bolt |
| 11 | 01550-0610B-000 | Bolt | Bolt |
| 21 | 01550-06123-000 | Bolt | Bolt |
| 21 | 01550-0612A-000 | Bolt | Bolt |
| 21 | 01550-0612B-000 | Bolt - Bolt, clamp | Bolt - Bolt, clamp |
| 36 | 01550-06163-000 | Bolt | Bolt |
| 36 | 01550-0616A-000 | Bolt | Bolt |
| 36 | 01550-0616B-000 | Bolt | Bolt |
| 32 | 01550-06203-000 | Bolt | Bolt |
| 32 | 01550-0620B-000 | Bolt - Bolt, inspection cap | Bolt - Bolt, inspection cap |
| 33 | 01550-06253-000 | Bolt (6x25) | Bolt (6x25) |
| 33 | 01550-0625A-000 | Bolt | Bolt |
| 33 | 01550-0625B-000 | Bolt - Bolt, head cover | Bolt - Bolt, head cover |
| 11 | 01550-06303-000 | Bolt (6x30) - Bolt, head cover l:30 | Bolt (6x30) - Bolt, head cover l:30 |
| 11 | 01550-0630A-000 | Bolt | Bolt |
| 3 | 01550-08203-000 | Bolt | Bolt |
| 3 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 3 | 01550-0820B-000 | Bolt | Bolt |
| 18 | 03541-05103-000 | Screw5 x 10 | Screw5 x 10 |
| 18 | 03541-0510A-000 | SCREW - Screw, rr cover | SCREW - Screw, rr cover |
| 18 | 03541-0510B-000 | SCREW | SCREW |
| 42 | 09401-13413-000 | Clip - Clip, air hose no.1 | Clip - Clip, air hose no.1 |
| 42 | 09401-13417-000 | CLIP | CLIP |
| 23 | 95330-72B00-000 | RECEIVER DRYER | RECEIVER DRYER |
| 32 | 95400-70G21-000 | COOLING UNIT | COOLING UNIT |
| 14 | 95462-80F00-000 | PACKING,AIR DAMPER | PACKING,AIR DAMPER |
| 42 | 95481-60D10-000 | HOSE,DRAIN | HOSE,DRAIN |
| 35 | 95491-70B00-000 | BRACKET,COOLING UNIT | BRACKET,COOLING UNIT |
| 41 | 95492-70B00-000 | STAY,UNIT&HEATER NO.1 | STAY,UNIT&HEATER NO.1 |
| 39 | 95493-70B00-000 | STAY,UNIT&HTR 2 | STAY,UNIT&HTR 2 |
| 28 | 95526-50G10-000 | Switch, dual pressure | Switch, dual pressure |
| 28 | 95526-50G30-000 | SWITCH,DUAL PRESSURE | SWITCH,DUAL PRESSURE |
| 22 | 95731-65F00-000 | PIPE,CONDENSER OUTLET | PIPE,CONDENSER OUTLET |
| 27 | 95732-65F00-000 | Pipe,rcvr out | Pipe,rcvr out |
| 27 | 95732-65F01-000 | PIPE,RECEIVER OUTLET | PIPE,RECEIVER OUTLET |
| 11 | 95761-84040-000 | パッキング,コンデンサ | パッキング,コンデンサ |
| 20 | 95771-50E00-000 | CLAMP,SUCTION PIPE | CLAMP,SUCTION PIPE |
| 19 | 95781-60D00-000 | STAY,SUCT PIPE CLAMP | STAY,SUCT PIPE CLAMP |
| 48 | 95794-50G00-000 | ドラム,レフリジェラント,200 | ドラム,レフリジェラント,200 |
| 43 | 95811-70B00-000 | PACKING,HOOD | PACKING,HOOD |
| 13 | 95812-65F00-000 | PACKING,CONDENSER | PACKING,CONDENSER |
| 11 | 95813-81A00-000 | PACKING,RADIATOR | PACKING,RADIATOR |
| 14 | 95818-60F00-000 | パッキング,コンデンサ | パッキング,コンデンサ |
| 44 | 95821-70B00-000 | INSULATOR,BATTERY | INSULATOR,BATTERY |
| 47 | 95891-50G00-000 | O-RING,D:1.8 ID:6.7 | O-RING,D:1.8 ID:6.7 |
| 46 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | O-RING,D:2.4 ID:10.8 |
| 45 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
| 49 | 95955-72B00-000 | LABEL,REFRIGERANT | LABEL,REFRIGERANT |
