Search › Compare › CM21V × CP21S
CM21V
Suzuki ALTO-A-STAR-CELERIO — 9 of 2,719 shared
CP21S
Suzuki ALTO-A-STAR-CELERIO — 9 of 2,837 shared

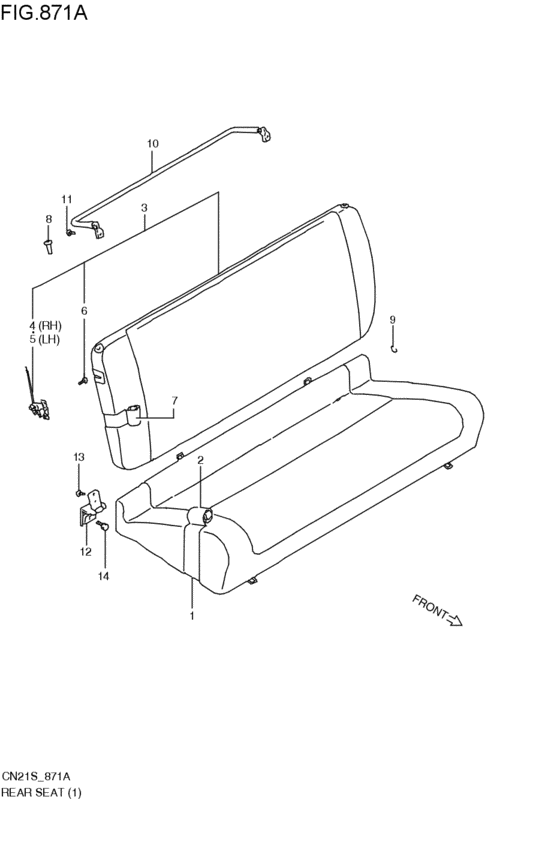

rear seat (V; 1990-01-01~1991-08-01) 9 / 19
| # | OEM | CM21V | CP21S |
|---|---|---|---|
| 6 | 02142-06106-000 | Screw - Vis | Screw - Vis |
| 6 | 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft | SCREW - Stopper, cl rlse cam shaft |
| 6 | 02142-0610A-000 | SCREW | SCREW |
| 8 | 87846-82000-6GL | Knob,rear seat back look | Knob,rear seat back look |
| 8 | 87846-82000-5ES | KNOB, SEAT BACK LOCK (BLACK) | KNOB, SEAT BACK LOCK (BLACK) |
| 9 | 09387-19001-000 | RING | RING |
| 11 | 02142-06104-000 | Screw | Screw |
| 13 | 09125-06036-000 | SCREW(6X15) | SCREW(6X15) |
| 14 | 01570-0816A-000 | Bolt | Bolt |
| # | OEM | CM21V | CP21S |
|---|---|---|---|
| 2 | 01570-0816A-000 | Bolt | Bolt |
| 11 | 02142-06104-000 | Screw | Screw |
| 7 | 02142-06106-000 | Screw - Vis | Screw - Vis |
| 17 | 02142-0610A-000 | SCREW | SCREW |
| 17 | 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft | SCREW - Stopper, cl rlse cam shaft |
| 13 | 09125-06036-000 | SCREW(6X15) | SCREW(6X15) |
| 22 | 09387-19001-000 | RING | RING |
| 8 | 87846-82000-5ES | KNOB, SEAT BACK LOCK (BLACK) | KNOB, SEAT BACK LOCK (BLACK) |
| 8 | 87846-82000-6GL | Knob,rear seat back look | Knob,rear seat back look |
