Search › Compare › CM21V × CP21S
CM21V
Suzuki ALTO-A-STAR-CELERIO — 22 of 2,719 shared
CP21S
Suzuki ALTO-A-STAR-CELERIO — 22 of 2,837 shared

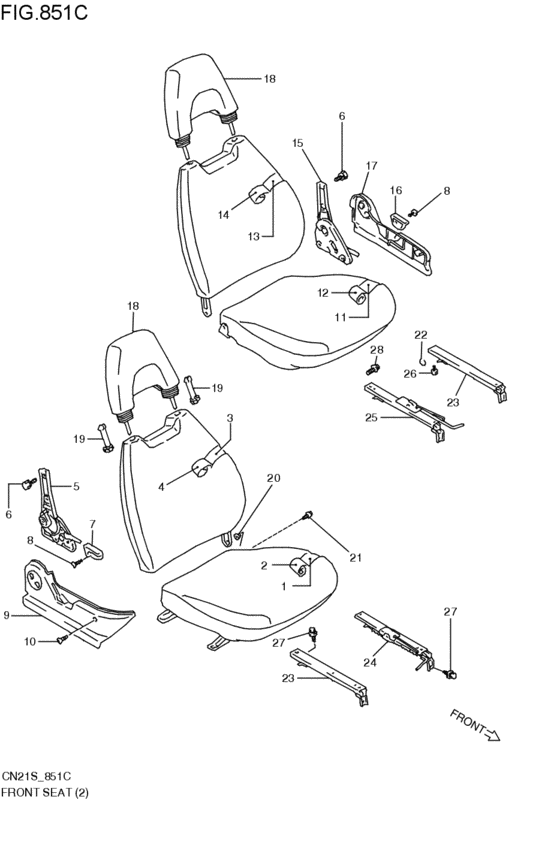

front seat (V:(CL,SA,SB,AE,AF,AG); 1990-01-01~1991-08-01) 22 / 39
| # | OEM | CM21V | CP21S |
|---|---|---|---|
| 1 | 85105-70B00-000 | Cushion sub assy,fr seat,r | Cushion sub assy,fr seat,r |
| 5 | 85211-70B00-5ES | KNOB,RECL,R | KNOB,RECL,R |
| 5 | 85221-70B00-5ES | COVER,RECL,R | COVER,RECL,R |
| 6 | 01137-08168-000 | Bolt | Bolt |
| 6 | 01570-08167-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 8 | 03241-04085-000 | Screw - Vis | Screw - Vis |
| 8 | 03241-0408A-000 | SCREW | SCREW |
| 10 | 03241-05085-000 | New Genuine Part | New Genuine Part |
| 10 | 03241-0508A-000 | SCREW | SCREW |
| 11 | 85106-70B00-000 | Cushion sub assy,fr seat,l | Cushion sub assy,fr seat,l |
| 15 | 85711-70B00-5ES | KNOB,RECLINING,L | KNOB,RECLINING,L |
| 15 | 85721-70B00-5ES | COVER,RECLINING,L | COVER,RECLINING,L |
| 19 | 85341-84020-000 | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 20 | 85319-82000-000 | BUSH,FR SEAT BACK FIXING | BUSH,FR SEAT BACK FIXING |
| 21 | 09136-06004-000 | SCREW(6X12) | SCREW(6X12) |
| 22 | 09387-19001-000 | RING | RING |
| 23 | 86630-70B00-000 | ADJUSTER,FR SEAT OUTSIDE | ADJUSTER,FR SEAT OUTSIDE |
| 26 | 01137-08125-000 | ボルト | ボルト |
| 26 | 01570-0812A-000 | Bolt | Bolt |
| 27 | 01187-08205-000 | Bolt | Bolt |
| 27 | 01580-0820A-000 | Bolt | Bolt |
| 28 | 09103-12040-000 | BOLT(12X22) | BOLT(12X22) |
| # | OEM | CM21V | CP21S |
|---|---|---|---|
| 26 | 01137-08125-000 | ボルト | ボルト |
| 6 | 01137-08168-000 | Bolt | Bolt |
| 27 | 01187-08205-000 | Bolt | Bolt |
| 35 | 01570-0812A-000 | Bolt | Bolt |
| 6 | 01570-08167-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 27 | 01580-0820A-000 | Bolt | Bolt |
| 8 | 03241-04085-000 | Screw - Vis | Screw - Vis |
| 8 | 03241-0408A-000 | SCREW | SCREW |
| 10 | 03241-05085-000 | New Genuine Part | New Genuine Part |
| 4 | 03241-0508A-000 | SCREW | SCREW |
| 28 | 09103-12040-000 | BOLT(12X22) | BOLT(12X22) |
| 21 | 09136-06004-000 | SCREW(6X12) | SCREW(6X12) |
| 22 | 09387-19001-000 | RING | RING |
| 1 | 85105-70B00-000 | Cushion sub assy,fr seat,r | Cushion sub assy,fr seat,r |
| 11 | 85106-70B00-000 | Cushion sub assy,fr seat,l | Cushion sub assy,fr seat,l |
| 5 | 85211-70B00-5ES | KNOB,RECL,R | KNOB,RECL,R |
| 5 | 85221-70B00-5ES | COVER,RECL,R | COVER,RECL,R |
| 20 | 85319-82000-000 | BUSH,FR SEAT BACK FIXING | BUSH,FR SEAT BACK FIXING |
| 19 | 85341-84020-000 | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 15 | 85711-70B00-5ES | KNOB,RECLINING,L | KNOB,RECLINING,L |
| 15 | 85721-70B00-5ES | COVER,RECLINING,L | COVER,RECLINING,L |
| 23 | 86630-70B00-000 | ADJUSTER,FR SEAT OUTSIDE | ADJUSTER,FR SEAT OUTSIDE |
