Search › Compare › CE90 × CV11
CE90
Toyota COROLLA — 38 of 6,661 shared
CV11
Toyota CAMRY-VISTA-AURION — 38 of 5,643 shared

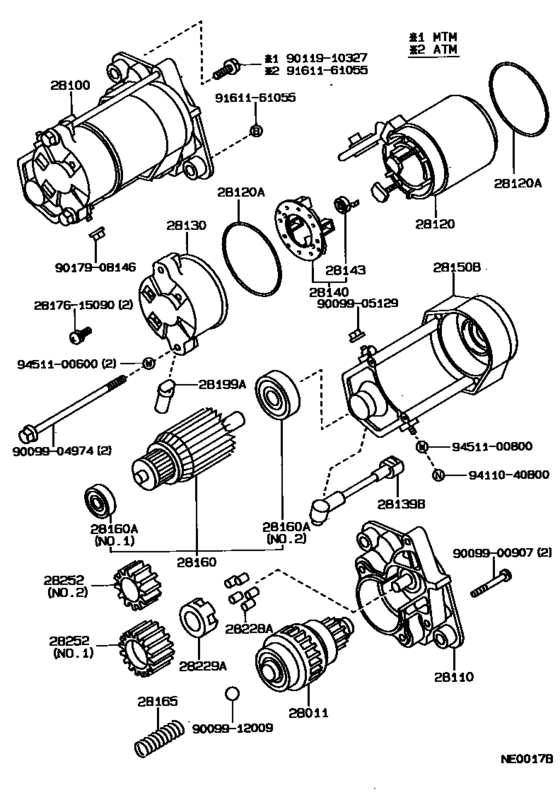

Starter ([05.1987 - ] 12V 1.4KW (8705- )1C,2C) 38 / 53
| # | OEM | CE90 | CV11 |
|---|---|---|---|
| 28011 | 28011-64010 | Clutch Sub-Assy, Starter | Clutch Sub-Assy, Starter |
| 28011 | 28011-67030 | Clutch Sub-Assy, Starter | Clutch Sub-Assy, Starter |
| 28100 | 28100-64040 | Starter Assy | Starter Assy |
| 28100 | 28100-64070 | Starter Assy | Starter Assy |
| 28110 | 28110-64070 | Housing Assy, Starter Drive | Housing Assy, Starter Drive |
| 28120 | 28120-15090 | Yoke Assy, Starter | Yoke Assy, Starter |
| 28120 | 90099-14064 | Rubber(For Starter Yoke) | Rubber(For Starter Yoke) |
| 28130 | 28130-15090 | Frame Assy, Starter Commutator End | Frame Assy, Starter Commutator End |
| 28139 | 28139-64010 | Wire, Lead, No.1(For Starter) | Wire, Lead, No.1(For Starter) |
| 28140 | 28140-15090 | Holder Assy, Starter Brush | Holder Assy, Starter Brush |
| 28143 | 90099-17112 | Spring, Starter Brush | Spring, Starter Brush |
| 28143 | 90099-17115 | Spring, Starter Brush | Spring, Starter Brush |
| 28150 | 28150-64070 | Switch Assy, Magnet Starter | Switch Assy, Magnet Starter |
| 28160 | 28160-15090 | Armature Assy, Starter | Armature Assy, Starter |
| 28160 | 28160-15091 | Armature Assy, Starter | Armature Assy, Starter |
| 28160 | 28253-54070 | Bearing, Starter Armature | Bearing, Starter Armature |
| 28160 | 90099-10143 | Bearing, Starter Armature | Bearing, Starter Armature |
| 28160 | 90099-10144 | Bearing, Starter Armature | Bearing, Starter Armature |
| 28165 | 28165-26040 | Spring, Starter Magnet Switch Return | Spring, Starter Magnet Switch Return |
| 28199 | 28199-15090 | Cover, Starter End Frame | Cover, Starter End Frame |
| 28228 | 28228-26040 | Roller, Starter Idle Gear Clutch | Roller, Starter Idle Gear Clutch |
| 28229 | 28229-26040 | Retainer, Starter Idle Gear | Retainer, Starter Idle Gear |
| 28252 | 28251-15090 | Pinion, Starter Drive | Pinion, Starter Drive |
| 28252 | 28251-54070 | Plate, Lead, Switch Connecting | Plate, Lead, Switch Connecting |
| 28252 | 28254-54070 | Pinion, Starter Drive | Pinion, Starter Drive |
| 2817615090 | 28176-15090 | Screw, Starter | Screw, Starter |
| 2817615090 | 28176-87701 | Screw, Starter | Screw, Starter |
| 9009900907 | 90099-00907 | New Genuine Part | New Genuine Part |
| 9009904974 | 90099-04974 | New Genuine Part | New Genuine Part |
| 9009905129 | 90099-05129 | Nut (For Front Wiper Arm Setting) | Nut (For Front Wiper Arm Setting) |
| 9009912009 | 90099-12009 | Ball, Starter Clutch | Ball, Starter Clutch |
| 9017908146 | 90179-08146 | Nut | Nut |
| 9017908146 | 90179-08204 | Nut | Nut |
| 9161161055 | 91611-61055 | Bolt(For Clutch Release Cylinder Setting) | Bolt(For Clutch Release Cylinder Setting) |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) | Nut, No.1 (For Center Support Bearing) |
| 9451100600 | 94511-00600 | Washer, Lock, No.2 | Washer, Lock, No.2 |
| 9451100800 | 94511-00800 | WASHERSPRING | WASHERSPRING |
| # | OEM | CE90 | CV11 |
|---|---|---|---|
| 28011 | 28011-64010 | Clutch Sub-Assy, Starter | Clutch Sub-Assy, Starter |
| 28011 | 28011-67030 | Clutch Sub-Assy, Starter | Clutch Sub-Assy, Starter |
| 28100 | 28100-64040 | Starter Assy | Starter Assy |
| 28100 | 28100-64070 | Starter Assy | Starter Assy |
| 28110 | 28110-64070 | Housing Assy, Starter Drive | Housing Assy, Starter Drive |
| 28120 | 28120-15090 | Yoke Assy, Starter | Yoke Assy, Starter |
| 28130 | 28130-15090 | Frame Assy, Starter Commutator End | Frame Assy, Starter Commutator End |
| 28139 | 28139-64010 | Wire, Lead, No.1(For Starter) | Wire, Lead, No.1(For Starter) |
| 28140 | 28140-15090 | Holder Assy, Starter Brush | Holder Assy, Starter Brush |
| 28150 | 28150-64070 | Switch Assy, Magnet Starter | Switch Assy, Magnet Starter |
| 28160 | 28160-15090 | Armature Assy, Starter | Armature Assy, Starter |
| 28160 | 28160-15091 | Armature Assy, Starter | Armature Assy, Starter |
| 28165 | 28165-26040 | Spring, Starter Magnet Switch Return | Spring, Starter Magnet Switch Return |
| 2817615090 | 28176-15090 | Screw, Starter | Screw, Starter |
| 2817615090 | 28176-87701 | Screw, Starter | Screw, Starter |
| 28199 | 28199-15090 | Cover, Starter End Frame | Cover, Starter End Frame |
| 28228 | 28228-26040 | Roller, Starter Idle Gear Clutch | Roller, Starter Idle Gear Clutch |
| 28229 | 28229-26040 | Retainer, Starter Idle Gear | Retainer, Starter Idle Gear |
| 28252 | 28251-15090 | Pinion, Starter Drive | Pinion, Starter Drive |
| 28252 | 28251-54070 | Plate, Lead, Switch Connecting | Plate, Lead, Switch Connecting |
| 28160 | 28253-54070 | Bearing, Starter Armature | Bearing, Starter Armature |
| 28252 | 28254-54070 | Pinion, Starter Drive | Pinion, Starter Drive |
| 9009900907 | 90099-00907 | New Genuine Part | New Genuine Part |
| 9009904974 | 90099-04974 | New Genuine Part | New Genuine Part |
| 9009905129 | 90099-05129 | Nut (For Front Wiper Arm Setting) | Nut (For Front Wiper Arm Setting) |
| 28160 | 90099-10143 | Bearing, Starter Armature | Bearing, Starter Armature |
| 28160 | 90099-10144 | Bearing, Starter Armature | Bearing, Starter Armature |
| 9009912009 | 90099-12009 | Ball, Starter Clutch | Ball, Starter Clutch |
| 28120 | 90099-14064 | Rubber(For Starter Yoke) | Rubber(For Starter Yoke) |
| 28143 | 90099-17112 | Spring, Starter Brush | Spring, Starter Brush |
| 28143 | 90099-17115 | Spring, Starter Brush | Spring, Starter Brush |
| 9017908146 | 90179-08146 | Nut | Nut |
| 9017908146 | 90179-08204 | Nut | Nut |
| 9161161055 | 91611-61055 | Bolt(For Clutch Release Cylinder Setting) | Bolt(For Clutch Release Cylinder Setting) |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) | Nut, No.1 (For Center Support Bearing) |
| 9451100600 | 94511-00600 | Washer, Lock, No.2 | Washer, Lock, No.2 |
| 9451100800 | 94511-00800 | WASHERSPRING | WASHERSPRING |
