AZG412
Suzuki KEI-SWIFT — 55 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 55 of 3,076 shared

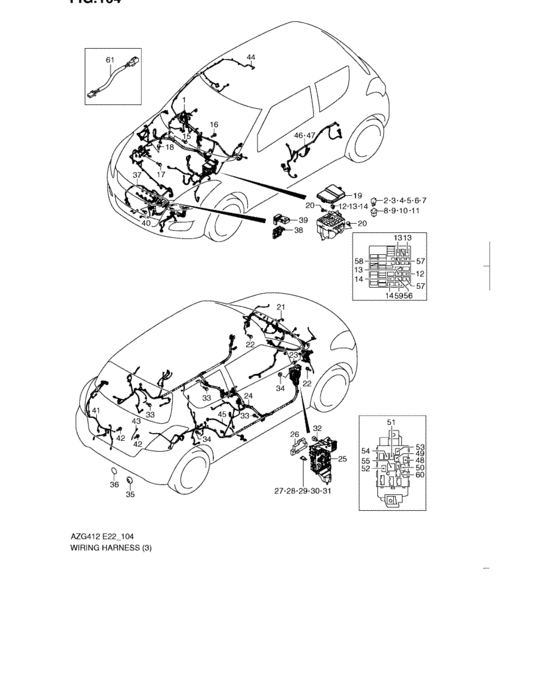

Wiring harness (K12B:RHD:3DR) 55 / 55
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 36610-68L20-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-68L30-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-68L80-000 | Harness assy, main | Harness assy, main |
| 2 | 09481-07504-000 | FUSE(7.5A) | FUSE(7.5A) |
| 3 | 09481-10504-000 | FUSE(10A) | FUSE(10A) |
| 4 | 09481-15504-000 | FUSE(15A) | FUSE(15A) |
| 5 | 09481-20504-000 | FUSE(20A) | FUSE(20A) |
| 6 | 09481-25504-000 | FUSE(25A) | FUSE(25A) |
| 7 | 09481-30504-000 | FUSE(30A) | FUSE(30A) |
| 8 | 09481-30403-000 | FUSE(30A) | FUSE(30A) |
| 9 | 09481-40403-000 | FUSE(40A) | FUSE(40A) |
| 10 | 09481-50403-000 | FUSE(50A) | FUSE(50A) |
| 11 | 09481-60403-000 | FUSE(60A) | FUSE(60A) |
| 12 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| 15 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 18 | 01550-0612A-000 | Bolt | Bolt |
| 19 | 36717-68L00-000 | Cover,relay box | Cover,relay box |
| 19 | 36717-68L02-000 | COVER,RELAY BOX | COVER,RELAY BOX |
| 20 | 02162-0616A-000 | SCREW | SCREW |
| 20 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 21 | 36620-68L20-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 21 | 36620-68LC0-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 21 | 36620-68LD0-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 23 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 24 | 36630-69L11-000 | Harness assy, floor | Harness assy, floor |
| 24 | 36630-69LA1-000 | Harness assy, floor | Harness assy, floor |
| 24 | 36630-69LB1-000 | Harness assy, floor | Harness assy, floor |
| 25 | 36710-68L01-000 | Box assy,junction | Box assy,junction |
| 25 | 36710-68L03-000 | BOX ASSY,JUNCTION | BOX ASSY,JUNCTION |
| 25 | 36710-68L11-000 | Box assy,junction | Box assy,junction |
| 25 | 36710-68L13-000 | BOX ASSY,JUNCTION | BOX ASSY,JUNCTION |
| 26 | 36717-68LP1-000 | Cover,fuse | Cover,fuse |
| 26 | 36717-68LP3-000 | FUSE COVER | FUSE COVER |
| 34 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 35 | 72999-67H00-000 | CAP,OD:40 | CAP,OD:40 |
| 36 | 84761-50X50-000 | SEAL,140X190 - Seal, rr defogger wire hole | SEAL,140X190 - Seal, rr defogger wire hole |
| 37 | 36650-68L20-000 | Harness assy, engine | Harness assy, engine |
| 38 | 36739-86J00-000 | FUSE,BATTERY | FUSE,BATTERY |
| 39 | 36694-84A00-000 | Cover,btry terminal | Cover,btry terminal |
| 39 | 36694-68K00-000 | COVER,BTRY TERMINAL | COVER,BTRY TERMINAL |
| 41 | 36680-68L10-000 | Harness assy, back door | Harness assy, back door |
| 41 | 36680-68L20-000 | Harness assy, back door | Harness assy, back door |
| 43 | 36891-80G00-000 | WIRE,RR DF GND | WIRE,RR DF GND |
| 44 | 36820-68L00-000 | Wire, roof | Wire, roof |
| 44 | 36820-68L20-000 | Wire, roof | Wire, roof |
| 44 | 36820-68L30-000 | Wire, roof | Wire, roof |
| 44 | 36820-68L40-000 | Wire, roof | Wire, roof |
| 44 | 36820-68L50-000 | Wire, roof | Wire, roof |
| 45 | 36840-68L00-000 | Wire, fuel | Wire, fuel |
| 46 | 36756-69L10-000 | Wire, driver door | Wire, driver door |
| 46 | 36756-69L30-000 | Wire, driver door | Wire, driver door |
| 47 | 36757-69L10-000 | Wire, sub door | Wire, sub door |
| 47 | 36757-69L30-000 | Wire, sub door | Wire, sub door |
| 55 | 38860-57L00-000 | RELAY ASSY,IGN 2 | RELAY ASSY,IGN 2 |
| 61 | 36691-68L00-000 | WIRE,A/B | WIRE,A/B |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 21 | 01550-0612A-000 | Bolt | Bolt |
| 9 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 24 | 02162-0616A-000 | SCREW | SCREW |
| 24 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 27 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 7 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 2 | 09481-07504-000 | FUSE(7.5A) | FUSE(7.5A) |
| 3 | 09481-10504-000 | FUSE(10A) | FUSE(10A) |
| 4 | 09481-15504-000 | FUSE(15A) | FUSE(15A) |
| 5 | 09481-20504-000 | FUSE(20A) | FUSE(20A) |
| 6 | 09481-25504-000 | FUSE(25A) | FUSE(25A) |
| 8 | 09481-30403-000 | FUSE(30A) | FUSE(30A) |
| 7 | 09481-30504-000 | FUSE(30A) | FUSE(30A) |
| 9 | 09481-40403-000 | FUSE(40A) | FUSE(40A) |
| 10 | 09481-50403-000 | FUSE(50A) | FUSE(50A) |
| 11 | 09481-60403-000 | FUSE(60A) | FUSE(60A) |
| 1 | 36610-68L20-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-68L30-000 | Harness assy, main | Harness assy, main |
| 1 | 36610-68L80-000 | Harness assy, main | Harness assy, main |
| 22 | 36620-68L20-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 22 | 36620-68LC0-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 22 | 36620-68LD0-000 | Harness assy, instrument panel | Harness assy, instrument panel |
| 24 | 36630-69L11-000 | Harness assy, floor | Harness assy, floor |
| 24 | 36630-69LA1-000 | Harness assy, floor | Harness assy, floor |
| 24 | 36630-69LB1-000 | Harness assy, floor | Harness assy, floor |
| 37 | 36650-68L20-000 | Harness assy, engine | Harness assy, engine |
| 46 | 36680-68L10-000 | Harness assy, back door | Harness assy, back door |
| 46 | 36680-68L20-000 | Harness assy, back door | Harness assy, back door |
| 68 | 36691-68L00-000 | WIRE,A/B | WIRE,A/B |
| 16 | 36694-68K00-000 | COVER,BTRY TERMINAL | COVER,BTRY TERMINAL |
| 16 | 36694-84A00-000 | Cover,btry terminal | Cover,btry terminal |
| 26 | 36710-68L01-000 | Box assy,junction | Box assy,junction |
| 26 | 36710-68L03-000 | BOX ASSY,JUNCTION | BOX ASSY,JUNCTION |
| 26 | 36710-68L11-000 | Box assy,junction | Box assy,junction |
| 26 | 36710-68L13-000 | BOX ASSY,JUNCTION | BOX ASSY,JUNCTION |
| 20 | 36717-68L00-000 | Cover,relay box | Cover,relay box |
| 20 | 36717-68L02-000 | COVER,RELAY BOX | COVER,RELAY BOX |
| 32 | 36717-68LP1-000 | Cover,fuse | Cover,fuse |
| 32 | 36717-68LP3-000 | FUSE COVER | FUSE COVER |
| 15 | 36739-86J00-000 | FUSE,BATTERY | FUSE,BATTERY |
| 51 | 36756-69L10-000 | Wire, driver door | Wire, driver door |
| 51 | 36756-69L30-000 | Wire, driver door | Wire, driver door |
| 52 | 36757-69L10-000 | Wire, sub door | Wire, sub door |
| 52 | 36757-69L30-000 | Wire, sub door | Wire, sub door |
| 49 | 36820-68L00-000 | Wire, roof | Wire, roof |
| 49 | 36820-68L20-000 | Wire, roof | Wire, roof |
| 49 | 36820-68L30-000 | Wire, roof | Wire, roof |
| 49 | 36820-68L40-000 | Wire, roof | Wire, roof |
| 49 | 36820-68L50-000 | Wire, roof | Wire, roof |
| 45 | 36840-68L00-000 | Wire, fuel | Wire, fuel |
| 53 | 36891-80G00-000 | WIRE,RR DF GND | WIRE,RR DF GND |
| 65 | 38860-57L00-000 | RELAY ASSY,IGN 2 | RELAY ASSY,IGN 2 |
| 12 | 38860-76F01-000 | RELAY ASSY - Relay, starting motor | RELAY ASSY - Relay, starting motor |
| 41 | 72999-67H00-000 | CAP,OD:40 | CAP,OD:40 |
| 25 | 84761-50X50-000 | SEAL,140X190 - Seal, rr defogger wire hole | SEAL,140X190 - Seal, rr defogger wire hole |
