Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 19 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 19 of 3,076 shared

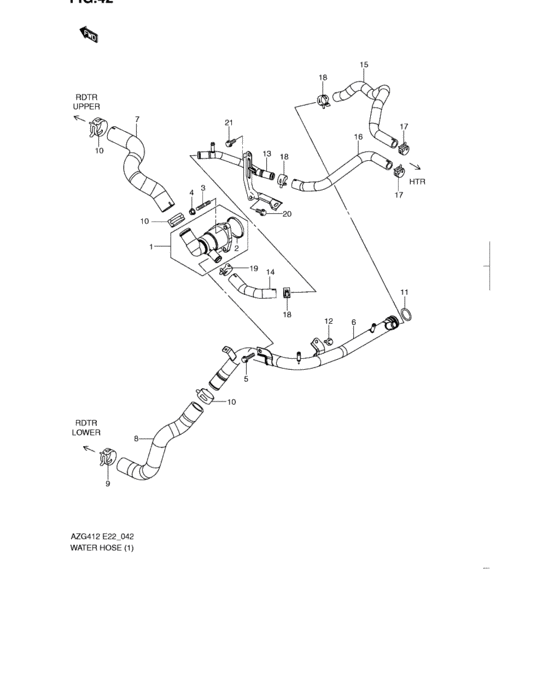

Water hose (K12B) 19 / 19
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 17670-73K01-000 | THERMOSTAT,WATER | THERMOSTAT,WATER |
| 2 | 17675-73K00-000 | GASKET,WATER THERMOSTAT | GASKET,WATER THERMOSTAT |
| 3 | 01421-0825A-000 | BOLT,STUD | BOLT,STUD |
| 4 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 5 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| 6 | 17830-71L00-000 | PIPE,WATER INLET | PIPE,WATER INLET |
| 7 | 17852-69L00-000 | Hose, radiator inlet | Hose, radiator inlet |
| 8 | 17854-69L00-000 | Hose, radiator outlet | Hose, radiator outlet |
| 9 | 09401-30405-000 | CLIP | CLIP |
| 10 | 09401-33403-000 | CLIP | CLIP |
| 11 | 09280-28008-000 | O RING(D:3.5,ID:27.7) | O RING(D:3.5,ID:27.7) |
| 12 | 01550-0612A-000 | Bolt | Bolt |
| 13 | 17840-71L00-000 | PIPE,HEATER INLET | PIPE,HEATER INLET |
| 14 | 17871-69L00-000 | HOSE,HTR INLET NO.1 | HOSE,HTR INLET NO.1 |
| 15 | 17872-69L00-000 | Hose, htr outlet | Hose, htr outlet |
| 16 | 17873-69L00-000 | Hose, her inlet no.2 | Hose, her inlet no.2 |
| 17 | 09401-21405-000 | CLIP | CLIP |
| 19 | 09401-23405-000 | CLIP | CLIP |
| 21 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 3 | 01421-0825A-000 | BOLT,STUD | BOLT,STUD |
| 21 | 01550-0612A-000 | Bolt | Bolt |
| 7 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 15 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| 27 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 9 | 09280-28008-000 | O RING(D:3.5,ID:27.7) | O RING(D:3.5,ID:27.7) |
| 26 | 09401-21405-000 | CLIP | CLIP |
| 35 | 09401-23405-000 | CLIP | CLIP |
| 28 | 09401-30405-000 | CLIP | CLIP |
| 10 | 09401-33403-000 | CLIP | CLIP |
| 1 | 17670-73K01-000 | THERMOSTAT,WATER | THERMOSTAT,WATER |
| 8 | 17675-73K00-000 | GASKET,WATER THERMOSTAT | GASKET,WATER THERMOSTAT |
| 6 | 17830-71L00-000 | PIPE,WATER INLET | PIPE,WATER INLET |
| 13 | 17840-71L00-000 | PIPE,HEATER INLET | PIPE,HEATER INLET |
| 7 | 17852-69L00-000 | Hose, radiator inlet | Hose, radiator inlet |
| 8 | 17854-69L00-000 | Hose, radiator outlet | Hose, radiator outlet |
| 14 | 17871-69L00-000 | HOSE,HTR INLET NO.1 | HOSE,HTR INLET NO.1 |
| 15 | 17872-69L00-000 | Hose, htr outlet | Hose, htr outlet |
| 16 | 17873-69L00-000 | Hose, her inlet no.2 | Hose, her inlet no.2 |
