Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 15 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 15 of 3,076 shared

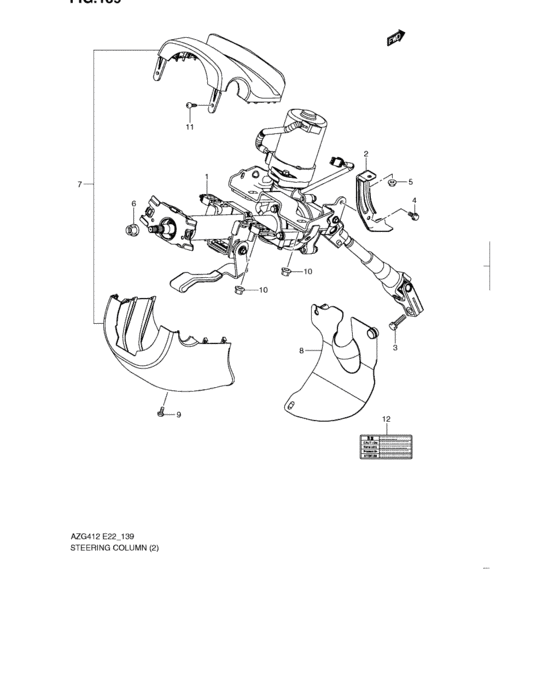

Steering column (LHD:GLX) 15 / 15
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 48200-68L70-000 | Column assy, colps steering | Column assy, colps steering |
| 1 | 48200-68L90-000 | Column assy, colps steering | Column assy, colps steering |
| 2 | 48250-68L50-000 | REINFORCEMENT,STRG COLUMN | REINFORCEMENT,STRG COLUMN |
| 2 | 48250-68L51-000 | REINFORCEMENT,STRG COLUMN | REINFORCEMENT,STRG COLUMN |
| 3 | 09117-08106-000 | BOLT(8X30) | BOLT(8X30) |
| 4 | 01550-0612A-000 | Bolt | Bolt |
| 5 | 08316-1006A-000 | NUT | NUT |
| 6 | 08316-1012A-000 | NUT | NUT |
| 7 | 48400-68L10-S1S | Cover assy, steering column - Gray | Cover assy, steering column - Gray |
| 8 | 48481-68L50-000 | COVER,STRG JOINT | COVER,STRG JOINT |
| 9 | 09136-05030-000 | SCREW(5X12) | SCREW(5X12) |
| 10 | 09159-08135-000 | NUT | NUT |
| 11 | 03211-0512B-000 | SCREW | SCREW |
| 12 | 79172-80G01-000 | Label,steering joint | Label,steering joint |
| 12 | 79172-80G02-000 | LABEL,STRG JOINT | LABEL,STRG JOINT |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 21 | 01550-0612A-000 | Bolt | Bolt |
| 11 | 03211-0512B-000 | SCREW | SCREW |
| 4 | 08316-1006A-000 | NUT | NUT |
| 6 | 08316-1012A-000 | NUT | NUT |
| 3 | 09117-08106-000 | BOLT(8X30) | BOLT(8X30) |
| 9 | 09136-05030-000 | SCREW(5X12) | SCREW(5X12) |
| 10 | 09159-08135-000 | NUT | NUT |
| 1 | 48200-68L70-000 | Column assy, colps steering | Column assy, colps steering |
| 1 | 48200-68L90-000 | Column assy, colps steering | Column assy, colps steering |
| 2 | 48250-68L50-000 | REINFORCEMENT,STRG COLUMN | REINFORCEMENT,STRG COLUMN |
| 2 | 48250-68L51-000 | REINFORCEMENT,STRG COLUMN | REINFORCEMENT,STRG COLUMN |
| 7 | 48400-68L10-S1S | Cover assy, steering column - Gray | Cover assy, steering column - Gray |
| 8 | 48481-68L50-000 | COVER,STRG JOINT | COVER,STRG JOINT |
| 12 | 79172-80G01-000 | Label,steering joint | Label,steering joint |
| 12 | 79172-80G02-000 | LABEL,STRG JOINT | LABEL,STRG JOINT |
