Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 21 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 21 of 3,076 shared

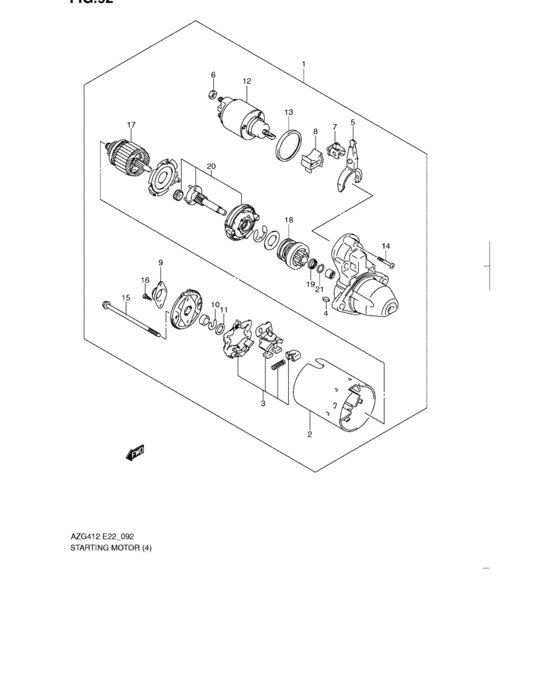

Starting motor (D13A) 21 / 21
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 31100-M86J2-000 | Motor assy, starting | Motor assy, starting |
| 2 | 31110-M86J0-000 | Yoke assy | Yoke assy |
| 3 | 31131-M86J0-000 | Brush assy | Brush assy |
| 4 | 31156-M79G1-000 | Plug, drain | Plug, drain |
| 5 | 31191-M86J0-000 | Fork lever | Fork lever |
| 6 | 31196-M86J0-000 | Nut | Nut |
| 7 | 31198-M86J0-000 | Bearing pedestal | Bearing pedestal |
| 8 | 31199-M86J0-100 | Seal | Seal |
| 9 | 31212-M86J0-000 | Closure cap | Closure cap |
| 10 | 31213-M86J0-000 | Retaining washer | Retaining washer |
| 11 | 31214-M86J0-000 | Shim | Shim |
| 12 | 31220-M86J2-000 | Switch assy | Switch assy |
| 13 | 31221-M86J0-100 | Seal | Seal |
| 14 | 31262-M86J0-000 | Screw | Screw |
| 15 | 31281-M86J0-000 | Screw | Screw |
| 16 | 31293-M86J0-000 | Screw | Screw |
| 17 | 31310-M86J0-000 | Armature | Armature |
| 18 | 31320-M86J0-000 | Clutch, over running | Clutch, over running |
| 19 | 31332-M86J0-000 | Retainer | Retainer |
| 20 | 31344-M86J0-000 | Shaft assy, gear | Shaft assy, gear |
| 21 | 31353-M86J0-000 | Stop ring | Stop ring |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 31100-M86J2-000 | Motor assy, starting | Motor assy, starting |
| 2 | 31110-M86J0-000 | Yoke assy | Yoke assy |
| 3 | 31131-M86J0-000 | Brush assy | Brush assy |
| 4 | 31156-M79G1-000 | Plug, drain | Plug, drain |
| 5 | 31191-M86J0-000 | Fork lever | Fork lever |
| 6 | 31196-M86J0-000 | Nut | Nut |
| 7 | 31198-M86J0-000 | Bearing pedestal | Bearing pedestal |
| 8 | 31199-M86J0-100 | Seal | Seal |
| 9 | 31212-M86J0-000 | Closure cap | Closure cap |
| 10 | 31213-M86J0-000 | Retaining washer | Retaining washer |
| 11 | 31214-M86J0-000 | Shim | Shim |
| 12 | 31220-M86J2-000 | Switch assy | Switch assy |
| 13 | 31221-M86J0-100 | Seal | Seal |
| 14 | 31262-M86J0-000 | Screw | Screw |
| 15 | 31281-M86J0-000 | Screw | Screw |
| 16 | 31293-M86J0-000 | Screw | Screw |
| 17 | 31310-M86J0-000 | Armature | Armature |
| 18 | 31320-M86J0-000 | Clutch, over running | Clutch, over running |
| 19 | 31332-M86J0-000 | Retainer | Retainer |
| 20 | 31344-M86J0-000 | Shaft assy, gear | Shaft assy, gear |
| 21 | 31353-M86J0-000 | Stop ring | Stop ring |
