Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 22 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 22 of 3,076 shared

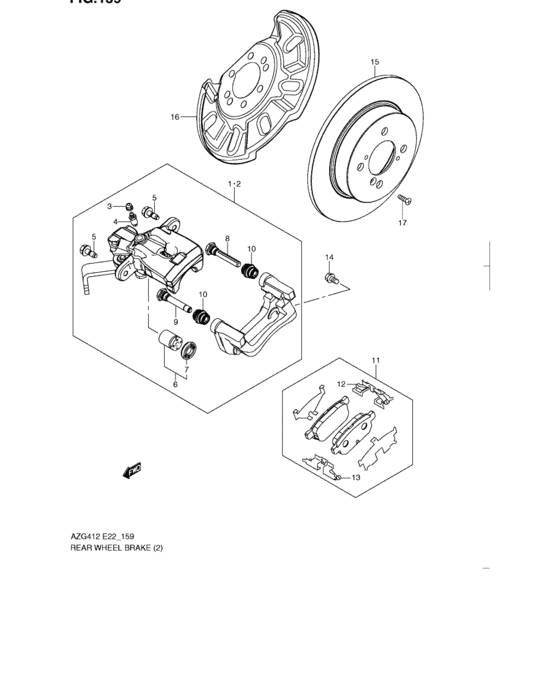

Rear wheel brake (W/REAR DISC BRAKE) 22 / 22
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 55401-68L00-999 | Caliper assy,rear brake,r | Caliper assy,rear brake,r |
| 1 | 55401-68L01-999 | CALIPER ASSY,RR,R | CALIPER ASSY,RR,R |
| 2 | 55402-68L00-999 | Caliper assy,rear brake,l | Caliper assy,rear brake,l |
| 2 | 55402-68L01-999 | CALIPER ASSY,RR,L | CALIPER ASSY,RR,L |
| 3 | 55151-78451-000 | PLUG,BLEEDER | PLUG,BLEEDER |
| 4 | 55156-66310-000 | CAP,BLEEDER PLUG - Cap, bleeder plug | CAP,BLEEDER PLUG - Cap, bleeder plug |
| 5 | 55206-78452-000 | BOLT,PIN | BOLT,PIN |
| 6 | 55890-68L00-000 | PISTON / SEAL SET | PISTON / SEAL SET |
| 6 | 55890-68L01-000 | PISTON / SEAL SET | PISTON / SEAL SET |
| 7 | 55880-68L00-000 | SEAL SET | SEAL SET |
| 7 | 55880-68L01-000 | SEAL SET | SEAL SET |
| 8 | 55191-68L00-000 | PIN,D:9.9 | PIN,D:9.9 |
| 9 | 55192-68L00-000 | PIN,D:9.7 | PIN,D:9.7 |
| 10 | 55201-68L00-000 | BOOT | BOOT |
| 11 | 55800-68L00-000 | Pad set | Pad set |
| 11 | 55800-68L21-000 | Pad set | Pad set |
| 12 | 55521-68L00-000 | Spring, return rh | Spring, return rh |
| 13 | 55522-68L00-000 | Spring, return lh | Spring, return lh |
| 14 | 09103-10373-000 | BOLT(10X25) | BOLT(10X25) |
| 15 | 55611-68L00-000 | Disc, rear brake | Disc, rear brake |
| 16 | 55621-68L00-000 | COVER,RR BK DISC DUST | COVER,RR BK DISC DUST |
| 17 | 02122-0612A-000 | SCREW | SCREW |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 17 | 02122-0612A-000 | SCREW | SCREW |
| 14 | 09103-10373-000 | BOLT(10X25) | BOLT(10X25) |
| 2 | 55151-78451-000 | PLUG,BLEEDER | PLUG,BLEEDER |
| 3 | 55156-66310-000 | CAP,BLEEDER PLUG - Cap, bleeder plug | CAP,BLEEDER PLUG - Cap, bleeder plug |
| 9 | 55191-68L00-000 | PIN,D:9.9 | PIN,D:9.9 |
| 10 | 55192-68L00-000 | PIN,D:9.7 | PIN,D:9.7 |
| 11 | 55201-68L00-000 | BOOT | BOOT |
| 4 | 55206-78452-000 | BOLT,PIN | BOLT,PIN |
| 1 | 55401-68L00-999 | Caliper assy,rear brake,r | Caliper assy,rear brake,r |
| 1 | 55401-68L01-999 | CALIPER ASSY,RR,R | CALIPER ASSY,RR,R |
| 2 | 55402-68L00-999 | Caliper assy,rear brake,l | Caliper assy,rear brake,l |
| 2 | 55402-68L01-999 | CALIPER ASSY,RR,L | CALIPER ASSY,RR,L |
| 12 | 55521-68L00-000 | Spring, return rh | Spring, return rh |
| 13 | 55522-68L00-000 | Spring, return lh | Spring, return lh |
| 15 | 55611-68L00-000 | Disc, rear brake | Disc, rear brake |
| 16 | 55621-68L00-000 | COVER,RR BK DISC DUST | COVER,RR BK DISC DUST |
| 11 | 55800-68L00-000 | Pad set | Pad set |
| 11 | 55800-68L21-000 | Pad set | Pad set |
| 7 | 55880-68L00-000 | SEAL SET | SEAL SET |
| 7 | 55880-68L01-000 | SEAL SET | SEAL SET |
| 6 | 55890-68L00-000 | PISTON / SEAL SET | PISTON / SEAL SET |
| 6 | 55890-68L01-000 | PISTON / SEAL SET | PISTON / SEAL SET |
