Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 19 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 19 of 3,076 shared

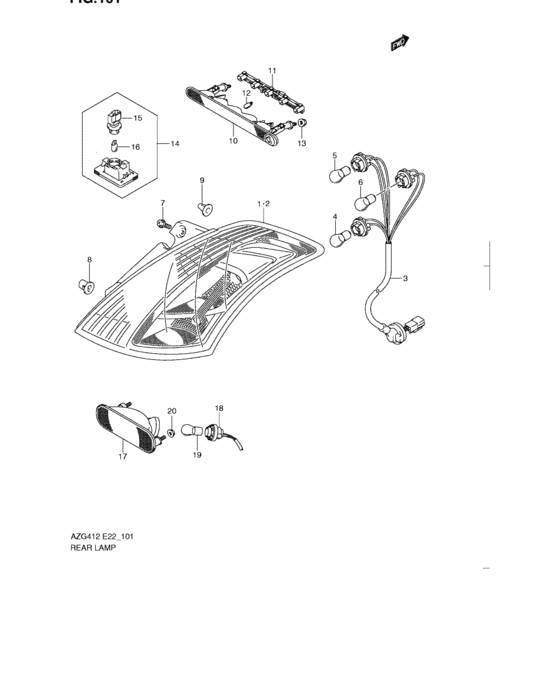

Rear lamp (REAR LAMP) 19 / 19
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 35650-68L00-000 | Lamp unit, rr comb rh | Lamp unit, rr comb rh |
| 2 | 35670-68L00-000 | Lamp unit, rr comb lh | Lamp unit, rr comb lh |
| 3 | 35658-68L00-000 | Socket & cord assy | Socket & cord assy |
| 4 | 09471-12045-000 | BULB(12V21W) | BULB(12V21W) |
| 5 | 09471-12046-000 | BULB(12V21/5W) | BULB(12V21/5W) |
| 5 | 09471-12128-000 | BULB(12V21/5W,BF141-49642A) | BULB(12V21/5W,BF141-49642A) |
| 6 | 09471-12186-000 | BULB(12V21W,AMBER) | BULB(12V21W,AMBER) |
| 7 | 02162-0616E-000 | SCREW | SCREW |
| 8 | 35153-54G00-000 | GROMMET,RR COMB LAMP | GROMMET,RR COMB LAMP |
| 9 | 35153-63G00-000 | GROMMET,RR COMB LAMP | GROMMET,RR COMB LAMP |
| 10 | 35820-63J00-000 | LAMP UNIT,HIGH MT STOP | LAMP UNIT,HIGH MT STOP |
| 11 | 35817-63J00-000 | BULB COVER | BULB COVER |
| 12 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | BULB(12V5W) - Bulb (12v5w) |
| 13 | 09159-06100-000 | NUT | NUT |
| 14 | 35910-68L01-000 | Lamp assy,license | Lamp assy,license |
| 15 | 35918-68L00-000 | SOCKET | SOCKET |
| 17 | 36574-62J00-000 | LAMP UNIT,RR FOG | LAMP UNIT,RR FOG |
| 18 | 36578-68L00-000 | SOCKET&CORD ASSY | SOCKET&CORD ASSY |
| 20 | 08316-1006A-000 | NUT | NUT |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 9 | 02162-0616E-000 | SCREW | SCREW |
| 4 | 08316-1006A-000 | NUT | NUT |
| 13 | 09159-06100-000 | NUT | NUT |
| 4 | 09471-12045-000 | BULB(12V21W) | BULB(12V21W) |
| 5 | 09471-12046-000 | BULB(12V21/5W) | BULB(12V21/5W) |
| 5 | 09471-12128-000 | BULB(12V21/5W,BF141-49642A) | BULB(12V21/5W,BF141-49642A) |
| 7 | 09471-12186-000 | BULB(12V21W,AMBER) | BULB(12V21W,AMBER) |
| 8 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | BULB(12V5W) - Bulb (12v5w) |
| 8 | 35153-54G00-000 | GROMMET,RR COMB LAMP | GROMMET,RR COMB LAMP |
| 9 | 35153-63G00-000 | GROMMET,RR COMB LAMP | GROMMET,RR COMB LAMP |
| 1 | 35650-68L00-000 | Lamp unit, rr comb rh | Lamp unit, rr comb rh |
| 3 | 35658-68L00-000 | Socket & cord assy | Socket & cord assy |
| 2 | 35670-68L00-000 | Lamp unit, rr comb lh | Lamp unit, rr comb lh |
| 11 | 35817-63J00-000 | BULB COVER | BULB COVER |
| 10 | 35820-63J00-000 | LAMP UNIT,HIGH MT STOP | LAMP UNIT,HIGH MT STOP |
| 14 | 35910-68L01-000 | Lamp assy,license | Lamp assy,license |
| 15 | 35918-68L00-000 | SOCKET | SOCKET |
| 17 | 36574-62J00-000 | LAMP UNIT,RR FOG | LAMP UNIT,RR FOG |
| 18 | 36578-68L00-000 | SOCKET&CORD ASSY | SOCKET&CORD ASSY |
