Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 33 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 33 of 3,076 shared

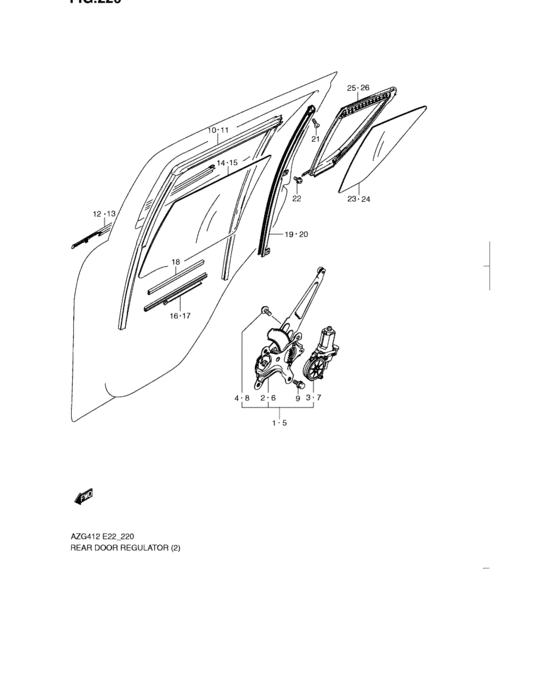

Rear door regulator (5DR:W/POWER WINDOW) 33 / 33
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 83501-63JA0-000 | Regulator assy,rear window,r | Regulator assy,rear window,r |
| 1 | 83501-63JA1-000 | REGULATOR ASSY,RR WINDOW,R | REGULATOR ASSY,RR WINDOW,R |
| 2 | 83510-63JA0-000 | REGULATOR,RR WINDOW,R | REGULATOR,RR WINDOW,R |
| 3 | 83530-63J00-000 | Motor assy,window rgltr | Motor assy,window rgltr |
| 3 | 83530-63J01-000 | MOTOR ASSY,WINDOW RGLTR | MOTOR ASSY,WINDOW RGLTR |
| 4 | 09139-05063-000 | SCREW(5X11) | SCREW(5X11) |
| 5 | 83502-63JA0-000 | Regulator assy,rear window,l | Regulator assy,rear window,l |
| 5 | 83502-63JA1-000 | REGULATOR ASSY,RR WINDOW,L | REGULATOR ASSY,RR WINDOW,L |
| 6 | 83540-63JA0-000 | REGULATOR,RR WINDOW,L | REGULATOR,RR WINDOW,L |
| 7 | 83560-63J00-000 | Motor assy,window rgltr | Motor assy,window rgltr |
| 7 | 83560-63J01-000 | MOTOR ASSY,WINDOW RGLTR | MOTOR ASSY,WINDOW RGLTR |
| 9 | 01580-0610A-000 | Bolt | Bolt |
| 10 | 83671-68L00-000 | Run, glass rh | Run, glass rh |
| 11 | 83675-68L00-000 | Run, glass lh | Run, glass lh |
| 12 | 83831-68L00-000 | Weatherstrip, door out rh | Weatherstrip, door out rh |
| 13 | 83841-68L00-000 | Weatherstrip, door out lh | Weatherstrip, door out lh |
| 14 | 84541-68L00-000 | Glass, door window rh - Green | Glass, door window rh - Green |
| 14 | 84541-68L10-000 | Glass, door window rh - Dark gray | Glass, door window rh - Dark gray |
| 15 | 84546-68L00-000 | Glass, door window lh - Green | Glass, door window lh - Green |
| 15 | 84546-68L10-000 | Glass, door window lh - Dark gray | Glass, door window lh - Dark gray |
| 16 | 83630-72J00-000 | CHANNEL,RR GLASS BOTTOM,R | CHANNEL,RR GLASS BOTTOM,R |
| 17 | 83640-72J00-000 | CHANNEL,RR GLASS BOTTOM,L | CHANNEL,RR GLASS BOTTOM,L |
| 18 | 83691-63J00-000 | RUBBER,RR GLASS BOTTOM CHANNEL | RUBBER,RR GLASS BOTTOM CHANNEL |
| 19 | 81770-71L00-000 | SASH,RR DOOR CENTER,R | SASH,RR DOOR CENTER,R |
| 20 | 81780-71L00-000 | SASH,RR DOOR CENTER,L | SASH,RR DOOR CENTER,L |
| 21 | 02122-0512A-000 | SCREW | SCREW |
| 22 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 23 | 84551-68L00-000 | Glass, rr dr partition rh - Green | Glass, rr dr partition rh - Green |
| 23 | 84551-68L10-000 | Glass, rr dr partition rh - Dark gray | Glass, rr dr partition rh - Dark gray |
| 24 | 84556-68L00-000 | Glass, rr dr partition lh - Green | Glass, rr dr partition lh - Green |
| 24 | 84556-68L10-000 | Glass, rr dr partition lh - Dark gray | Glass, rr dr partition lh - Dark gray |
| 25 | 84665-68L00-000 | Weatherstrip, dr partition rh | Weatherstrip, dr partition rh |
| 26 | 84675-68L00-000 | Weatherstrip, dr partition lh | Weatherstrip, dr partition lh |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 6 | 01580-0610A-000 | Bolt | Bolt |
| 18 | 02122-0512A-000 | SCREW | SCREW |
| 9 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 4 | 09139-05063-000 | SCREW(5X11) | SCREW(5X11) |
| 16 | 81770-71L00-000 | SASH,RR DOOR CENTER,R | SASH,RR DOOR CENTER,R |
| 17 | 81780-71L00-000 | SASH,RR DOOR CENTER,L | SASH,RR DOOR CENTER,L |
| 1 | 83501-63JA0-000 | Regulator assy,rear window,r | Regulator assy,rear window,r |
| 1 | 83501-63JA1-000 | REGULATOR ASSY,RR WINDOW,R | REGULATOR ASSY,RR WINDOW,R |
| 5 | 83502-63JA0-000 | Regulator assy,rear window,l | Regulator assy,rear window,l |
| 5 | 83502-63JA1-000 | REGULATOR ASSY,RR WINDOW,L | REGULATOR ASSY,RR WINDOW,L |
| 2 | 83510-63JA0-000 | REGULATOR,RR WINDOW,R | REGULATOR,RR WINDOW,R |
| 3 | 83530-63J00-000 | Motor assy,window rgltr | Motor assy,window rgltr |
| 3 | 83530-63J01-000 | MOTOR ASSY,WINDOW RGLTR | MOTOR ASSY,WINDOW RGLTR |
| 6 | 83540-63JA0-000 | REGULATOR,RR WINDOW,L | REGULATOR,RR WINDOW,L |
| 7 | 83560-63J00-000 | Motor assy,window rgltr | Motor assy,window rgltr |
| 7 | 83560-63J01-000 | MOTOR ASSY,WINDOW RGLTR | MOTOR ASSY,WINDOW RGLTR |
| 13 | 83630-72J00-000 | CHANNEL,RR GLASS BOTTOM,R | CHANNEL,RR GLASS BOTTOM,R |
| 14 | 83640-72J00-000 | CHANNEL,RR GLASS BOTTOM,L | CHANNEL,RR GLASS BOTTOM,L |
| 7 | 83671-68L00-000 | Run, glass rh | Run, glass rh |
| 8 | 83675-68L00-000 | Run, glass lh | Run, glass lh |
| 15 | 83691-63J00-000 | RUBBER,RR GLASS BOTTOM CHANNEL | RUBBER,RR GLASS BOTTOM CHANNEL |
| 9 | 83831-68L00-000 | Weatherstrip, door out rh | Weatherstrip, door out rh |
| 10 | 83841-68L00-000 | Weatherstrip, door out lh | Weatherstrip, door out lh |
| 11 | 84541-68L00-000 | Glass, door window rh - Green | Glass, door window rh - Green |
| 11 | 84541-68L10-000 | Glass, door window rh - Dark gray | Glass, door window rh - Dark gray |
| 12 | 84546-68L00-000 | Glass, door window lh - Green | Glass, door window lh - Green |
| 12 | 84546-68L10-000 | Glass, door window lh - Dark gray | Glass, door window lh - Dark gray |
| 20 | 84551-68L00-000 | Glass, rr dr partition rh - Green | Glass, rr dr partition rh - Green |
| 20 | 84551-68L10-000 | Glass, rr dr partition rh - Dark gray | Glass, rr dr partition rh - Dark gray |
| 21 | 84556-68L00-000 | Glass, rr dr partition lh - Green | Glass, rr dr partition lh - Green |
| 21 | 84556-68L10-000 | Glass, rr dr partition lh - Dark gray | Glass, rr dr partition lh - Dark gray |
| 22 | 84665-68L00-000 | Weatherstrip, dr partition rh | Weatherstrip, dr partition rh |
| 23 | 84675-68L00-000 | Weatherstrip, dr partition lh | Weatherstrip, dr partition lh |
