Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 12 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 12 of 3,076 shared

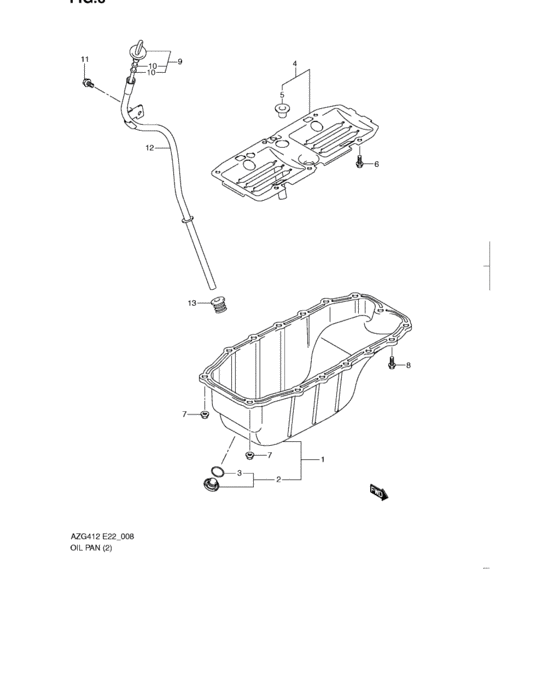

Oil pan (D13A) 12 / 12
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 11510-M86J0-000 | Pan, oil | Pan, oil |
| 2 | 16590-N86J0-000 | Plug assy, oil drain | Plug assy, oil drain |
| 3 | 16592-N86J0-000 | Gasket, oil drain | Gasket, oil drain |
| 4 | 11512-M86J0-000 | Plate, oil pan baffle | Plate, oil pan baffle |
| 5 | 11514-M86J0-000 | Gasket, pipe baffle plate | Gasket, pipe baffle plate |
| 6 | 11515-N86J0-000 | Bolt, baffle plate - 6x18 | Bolt, baffle plate - 6x18 |
| 7 | 16118-N86J0-000 | Nut - M6 | Nut - M6 |
| 8 | 16595-N86J0-000 | Bolt, level gauge guide - 6x14 | Bolt, level gauge guide - 6x14 |
| 9 | 16910-M86J0-000 | Gauge, oil level | Gauge, oil level |
| 10 | 16912-M86J0-000 | O ring | O ring |
| 12 | 16930-M86J0-000 | Guide, oil level gauge | Guide, oil level gauge |
| 13 | 16935-M86J0-000 | Gasket, oil level gauge guide | Gasket, oil level gauge guide |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 11510-M86J0-000 | Pan, oil | Pan, oil |
| 4 | 11512-M86J0-000 | Plate, oil pan baffle | Plate, oil pan baffle |
| 5 | 11514-M86J0-000 | Gasket, pipe baffle plate | Gasket, pipe baffle plate |
| 6 | 11515-N86J0-000 | Bolt, baffle plate - 6x18 | Bolt, baffle plate - 6x18 |
| 7 | 16118-N86J0-000 | Nut - M6 | Nut - M6 |
| 2 | 16590-N86J0-000 | Plug assy, oil drain | Plug assy, oil drain |
| 3 | 16592-N86J0-000 | Gasket, oil drain | Gasket, oil drain |
| 8 | 16595-N86J0-000 | Bolt, level gauge guide - 6x14 | Bolt, level gauge guide - 6x14 |
| 9 | 16910-M86J0-000 | Gauge, oil level | Gauge, oil level |
| 10 | 16912-M86J0-000 | O ring | O ring |
| 12 | 16930-M86J0-000 | Guide, oil level gauge | Guide, oil level gauge |
| 13 | 16935-M86J0-000 | Gasket, oil level gauge guide | Gasket, oil level gauge guide |
