AZG412
Suzuki KEI-SWIFT — 15 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 15 of 3,076 shared

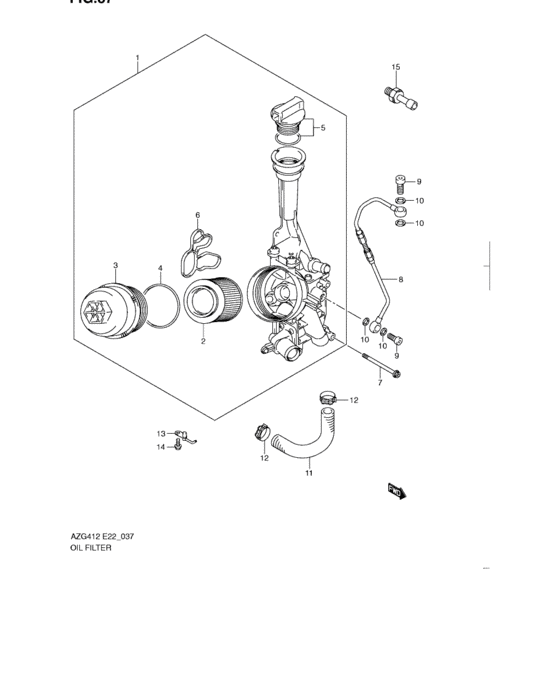

Oil filter (D13A) 15 / 15
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 16500-N68L1-000 | Case assy, oil filter & cooler | Case assy, oil filter & cooler |
| 2 | 16510-68L10-000 | Element, oil filter | Element, oil filter |
| 3 | 16540-68L10-000 | Cap, oil filter | Cap, oil filter |
| 4 | 16545-86J00-000 | O-ring, oil filter cap | O-ring, oil filter cap |
| 5 | 16920-68L10-000 | Cap assy, oil filler | Cap assy, oil filler |
| 6 | 16539-86J00-000 | Gasket, oil filter housing | Gasket, oil filter housing |
| 7 | 16538-N86J0-000 | Bolt - 6x77 | Bolt - 6x77 |
| 8 | 13930-N68L1-000 | Pipe, tc oil intake | Pipe, tc oil intake |
| 9 | 13933-N86J0-100 | Bolt, union tc oil tc side | Bolt, union tc oil tc side |
| 10 | 13934-N86J0-000 | Gasket, tc oil intk tc side | Gasket, tc oil intk tc side |
| 11 | 13946-68L10-000 | Hose, tc oil drain | Hose, tc oil drain |
| 12 | 13947-68L00-000 | Clip | Clip |
| 13 | 16710-M86J0-000 | Jet, piston cooling | Jet, piston cooling |
| 14 | 16719-N86J0-000 | Bolt - 6x16 | Bolt - 6x16 |
| 15 | 37820-N86J0-000 | Switch assy, oil pressure | Switch assy, oil pressure |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 8 | 13930-N68L1-000 | Pipe, tc oil intake | Pipe, tc oil intake |
| 9 | 13933-N86J0-100 | Bolt, union tc oil tc side | Bolt, union tc oil tc side |
| 10 | 13934-N86J0-000 | Gasket, tc oil intk tc side | Gasket, tc oil intk tc side |
| 11 | 13946-68L10-000 | Hose, tc oil drain | Hose, tc oil drain |
| 12 | 13947-68L00-000 | Clip | Clip |
| 1 | 16500-N68L1-000 | Case assy, oil filter & cooler | Case assy, oil filter & cooler |
| 2 | 16510-68L10-000 | Element, oil filter | Element, oil filter |
| 7 | 16538-N86J0-000 | Bolt - 6x77 | Bolt - 6x77 |
| 6 | 16539-86J00-000 | Gasket, oil filter housing | Gasket, oil filter housing |
| 3 | 16540-68L10-000 | Cap, oil filter | Cap, oil filter |
| 4 | 16545-86J00-000 | O-ring, oil filter cap | O-ring, oil filter cap |
| 13 | 16710-M86J0-000 | Jet, piston cooling | Jet, piston cooling |
| 14 | 16719-N86J0-000 | Bolt - 6x16 | Bolt - 6x16 |
| 5 | 16920-68L10-000 | Cap assy, oil filler | Cap assy, oil filler |
| 26 | 37820-N86J0-000 | Switch assy, oil pressure | Switch assy, oil pressure |
