Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 47 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 47 of 3,076 shared

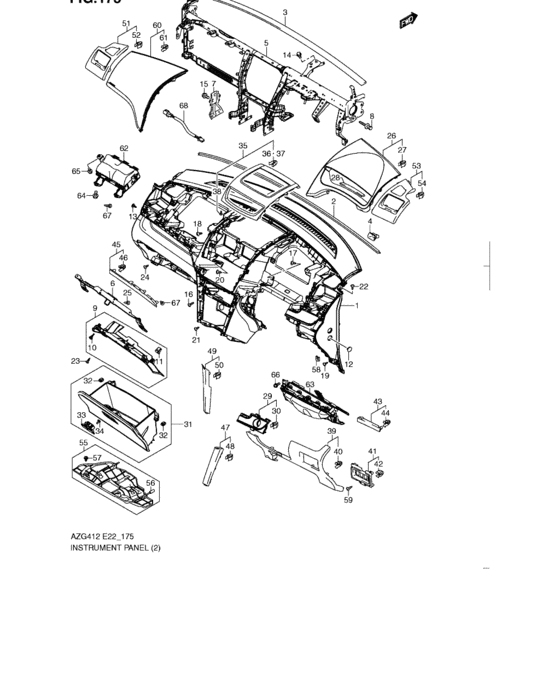

Instrument panel (RHD) 47 / 47
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 73111-68L00-S1S | Panel, instrument main - Charcoal gray | Panel, instrument main - Charcoal gray |
| 2 | 73115-79J00-000 | Silencer, top | Silencer, top |
| 3 | 73118-83E10-000 | SEAL,I/P | SEAL,I/P |
| 4 | 73123-51K00-000 | SOCKET,I/P PIN | SOCKET,I/P PIN |
| 5 | 73200-68L00-000 | Member, steering support | Member, steering support |
| 6 | 73250-68L00-000 | REINFORCEMENT,GLOVE BOX UPR | REINFORCEMENT,GLOVE BOX UPR |
| 7 | 73261-79J00-000 | Brace, lower | Brace, lower |
| 8 | 73291-50G03-000 | Bolt,strg support member side | Bolt,strg support member side |
| 8 | 73291-50G20-000 | BOLT,STRG SPRT MBR SIDE | BOLT,STRG SPRT MBR SIDE |
| 9 | 73840-68L00-000 | Cover, glove box upper | Cover, glove box upper |
| 10 | 73461-54G00-000 | CUSHION,GLOVE BOX LID | CUSHION,GLOVE BOX LID |
| 11 | 09409-08342-000 | CLIP | CLIP |
| 12 | 73891-83E00-S1S | CAP,INSTPN SIDE - Gray | CAP,INSTPN SIDE - Gray |
| 13 | 09409-06322-5PK | CLIP(BLACK) - Clip (black) | CLIP(BLACK) - Clip (black) |
| 14 | 01551-0816C-000 | Bolt | Bolt |
| 16 | 03541-0516A-000 | SCREW | SCREW |
| 17 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 26 | 73311-68L00-S1S | Panel, instrument clust - Charcoal gray | Panel, instrument clust - Charcoal gray |
| 28 | 73314-62J00-000 | SEAL,I/P CLUSTER | SEAL,I/P CLUSTER |
| 29 | 73831-68L00-S1S | Cover, drvr outside - Charcoal gray | Cover, drvr outside - Charcoal gray |
| 29 | 73831-68L10-S1S | Cover, drvr outside - Charcoal gray | Cover, drvr outside - Charcoal gray |
| 31 | 73410-68L00-S1S | Box, glove - Charcoal gray | Box, glove - Charcoal gray |
| 32 | 73413-65D00-000 | CUSHION,GLOVE BOX | CUSHION,GLOVE BOX |
| 33 | 73430-86G00-S1S | LOCK,GLOVE BOX - Gray | LOCK,GLOVE BOX - Gray |
| 34 | 02142-0412A-000 | SCREW | SCREW |
| 35 | 73800-68LA0-GJL | Box assy, i/p center up - Black/silver | Box assy, i/p center up - Black/silver |
| 38 | 03541-0412A-000 | SCREW - Screw, speedometer | SCREW - Screw, speedometer |
| 39 | 73811-68L00-S1S | Cover, steering column hole - Charcoal gray | Cover, steering column hole - Charcoal gray |
| 41 | 73835-68L00-S1S | Bezel, i/p switch - Charcoal gray | Bezel, i/p switch - Charcoal gray |
| 43 | 73851-68L00-ZML | Ornament, i/p drvr outside - Black/silver | Ornament, i/p drvr outside - Black/silver |
| 45 | 73852-68L00-ZML | Ornament, i/p asst outside - Black/silver | Ornament, i/p asst outside - Black/silver |
| 47 | 73853-68L00-S1S | Cover, i/p ctr drvr side - Charcoal gray | Cover, i/p ctr drvr side - Charcoal gray |
| 49 | 73854-68L00-S1S | Cover, i/p ctr asst side | Cover, i/p ctr asst side |
| 51 | 73871-68L10-S1S | Garnish, i/p side rh - Charcoal gray | Garnish, i/p side rh - Charcoal gray |
| 53 | 73872-68L10-S1S | Garnish, i/p side lh - Charcoal gray | Garnish, i/p side lh - Charcoal gray |
| 55 | 73890-68L10-000 | Cover, i/p under asst | Cover, i/p under asst |
| 56 | 73132-57L00-000 | CAP,I/P PIN | CAP,I/P PIN |
| 57 | 09409-10312-000 | CLIP | CLIP |
| 58 | 09148-05045-000 | NUT | NUT |
| 59 | 03241-0516A-000 | SCREW | SCREW |
| 60 | 73910-68L00-S1S | Door assy, passenger air bag - Charcoal gray | Door assy, passenger air bag - Charcoal gray |
| 62 | 73920-68L00-000 | Housing assy, passenger,air bag | Housing assy, passenger,air bag |
| 63 | 73950-68L00-S1S | Module assy, drvr knee air bag - Charcoal gray | Module assy, drvr knee air bag - Charcoal gray |
| 65 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 66 | 02162-0616A-000 | SCREW | SCREW |
| 66 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 68 | 36691-68L00-000 | WIRE,A/B | WIRE,A/B |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 29 | 01551-0816C-000 | Bolt | Bolt |
| 34 | 02142-0412A-000 | SCREW | SCREW |
| 9 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 24 | 02162-0616A-000 | SCREW | SCREW |
| 24 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 17 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 59 | 03241-0516A-000 | SCREW | SCREW |
| 38 | 03541-0412A-000 | SCREW - Screw, speedometer | SCREW - Screw, speedometer |
| 18 | 03541-0516A-000 | SCREW | SCREW |
| 58 | 09148-05045-000 | NUT | NUT |
| 14 | 09409-06322-5PK | CLIP(BLACK) - Clip (black) | CLIP(BLACK) - Clip (black) |
| 16 | 09409-08342-000 | CLIP | CLIP |
| 13 | 09409-10312-000 | CLIP | CLIP |
| 68 | 36691-68L00-000 | WIRE,A/B | WIRE,A/B |
| 1 | 73111-68L00-S1S | Panel, instrument main - Charcoal gray | Panel, instrument main - Charcoal gray |
| 2 | 73115-79J00-000 | Silencer, top | Silencer, top |
| 3 | 73118-83E10-000 | SEAL,I/P | SEAL,I/P |
| 4 | 73123-51K00-000 | SOCKET,I/P PIN | SOCKET,I/P PIN |
| 56 | 73132-57L00-000 | CAP,I/P PIN | CAP,I/P PIN |
| 5 | 73200-68L00-000 | Member, steering support | Member, steering support |
| 6 | 73250-68L00-000 | REINFORCEMENT,GLOVE BOX UPR | REINFORCEMENT,GLOVE BOX UPR |
| 7 | 73261-79J00-000 | Brace, lower | Brace, lower |
| 8 | 73291-50G03-000 | Bolt,strg support member side | Bolt,strg support member side |
| 8 | 73291-50G20-000 | BOLT,STRG SPRT MBR SIDE | BOLT,STRG SPRT MBR SIDE |
| 26 | 73311-68L00-S1S | Panel, instrument clust - Charcoal gray | Panel, instrument clust - Charcoal gray |
| 28 | 73314-62J00-000 | SEAL,I/P CLUSTER | SEAL,I/P CLUSTER |
| 31 | 73410-68L00-S1S | Box, glove - Charcoal gray | Box, glove - Charcoal gray |
| 32 | 73413-65D00-000 | CUSHION,GLOVE BOX | CUSHION,GLOVE BOX |
| 33 | 73430-86G00-S1S | LOCK,GLOVE BOX - Gray | LOCK,GLOVE BOX - Gray |
| 10 | 73461-54G00-000 | CUSHION,GLOVE BOX LID | CUSHION,GLOVE BOX LID |
| 35 | 73800-68LA0-GJL | Box assy, i/p center up - Black/silver | Box assy, i/p center up - Black/silver |
| 39 | 73811-68L00-S1S | Cover, steering column hole - Charcoal gray | Cover, steering column hole - Charcoal gray |
| 29 | 73831-68L00-S1S | Cover, drvr outside - Charcoal gray | Cover, drvr outside - Charcoal gray |
| 29 | 73831-68L10-S1S | Cover, drvr outside - Charcoal gray | Cover, drvr outside - Charcoal gray |
| 41 | 73835-68L00-S1S | Bezel, i/p switch - Charcoal gray | Bezel, i/p switch - Charcoal gray |
| 9 | 73840-68L00-000 | Cover, glove box upper | Cover, glove box upper |
| 43 | 73851-68L00-ZML | Ornament, i/p drvr outside - Black/silver | Ornament, i/p drvr outside - Black/silver |
| 45 | 73852-68L00-ZML | Ornament, i/p asst outside - Black/silver | Ornament, i/p asst outside - Black/silver |
| 47 | 73853-68L00-S1S | Cover, i/p ctr drvr side - Charcoal gray | Cover, i/p ctr drvr side - Charcoal gray |
| 49 | 73854-68L00-S1S | Cover, i/p ctr asst side | Cover, i/p ctr asst side |
| 51 | 73871-68L10-S1S | Garnish, i/p side rh - Charcoal gray | Garnish, i/p side rh - Charcoal gray |
| 53 | 73872-68L10-S1S | Garnish, i/p side lh - Charcoal gray | Garnish, i/p side lh - Charcoal gray |
| 55 | 73890-68L10-000 | Cover, i/p under asst | Cover, i/p under asst |
| 12 | 73891-83E00-S1S | CAP,INSTPN SIDE - Gray | CAP,INSTPN SIDE - Gray |
| 60 | 73910-68L00-S1S | Door assy, passenger air bag - Charcoal gray | Door assy, passenger air bag - Charcoal gray |
| 62 | 73920-68L00-000 | Housing assy, passenger,air bag | Housing assy, passenger,air bag |
| 63 | 73950-68L00-S1S | Module assy, drvr knee air bag - Charcoal gray | Module assy, drvr knee air bag - Charcoal gray |
