Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 24 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 24 of 3,076 shared

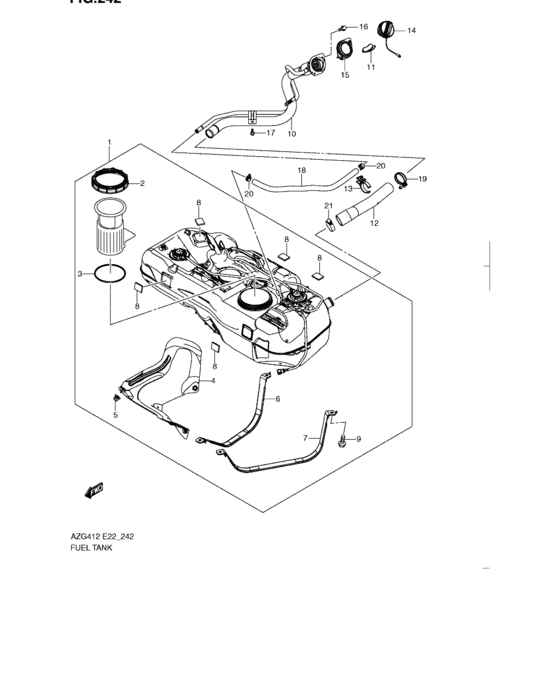

Fuel tank (FUEL TANK) 24 / 24
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 89100-68L00-000 | Tank, assy fuel | Tank, assy fuel |
| 1 | 89100-68L20-000 | Tank, assy fuel | Tank, assy fuel |
| 1 | 89100-68L10-000 | Tank, assy fuel | Tank, assy fuel |
| 2 | 89191-68L00-000 | NUT,FUEL PUMP LOCK | NUT,FUEL PUMP LOCK |
| 3 | 89192-62J00-000 | O-RING,FUEL PUMP | O-RING,FUEL PUMP |
| 4 | 89311-68L00-000 | Insulator, heat | Insulator, heat |
| 5 | 89315-62J00-000 | NUT,HEAT INSULATOR | NUT,HEAT INSULATOR |
| 6 | 89360-68L00-000 | Belt, fuel tank fixer rh | Belt, fuel tank fixer rh |
| 7 | 89370-68L00-000 | Belt, fuel tank fixer lh | Belt, fuel tank fixer lh |
| 8 | 89385-68L00-000 | Pad, fuel tank | Pad, fuel tank |
| 9 | 09118-10073-000 | BOLT(10X30) | BOLT(10X30) |
| 10 | 89201-68L00-000 | Neck assy, fuel filler | Neck assy, fuel filler |
| 10 | 89201-68L10-000 | Neck assy, fuel filler | Neck assy, fuel filler |
| 11 | 89232-57L00-000 | COVER,FUEL FILLER NECK | COVER,FUEL FILLER NECK |
| 12 | 89241-68L00-000 | HOSE,FUEL TANK FILLER | HOSE,FUEL TANK FILLER |
| 13 | 89242-68L00-000 | CLAMP,FILLER&BREATHER HOSE | CLAMP,FILLER&BREATHER HOSE |
| 14 | 89260-77K01-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 15 | 89285-58J00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 16 | 09116-05023-000 | BOLT(5X20) | BOLT(5X20) |
| 17 | 09116-06205-000 | BOLT(6X16) | BOLT(6X16) |
| 18 | 09355-13208-600 | HOSE(13X19.8X600) | HOSE(13X19.8X600) |
| 19 | 09400-45411-000 | CLAMP | CLAMP |
| 20 | 09401-18406-000 | CLIP | CLIP |
| 21 | 09402-50512-000 | CLAMP | CLAMP |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 16 | 09116-05023-000 | BOLT(5X20) | BOLT(5X20) |
| 17 | 09116-06205-000 | BOLT(6X16) | BOLT(6X16) |
| 9 | 09118-10073-000 | BOLT(10X30) | BOLT(10X30) |
| 18 | 09355-13208-600 | HOSE(13X19.8X600) | HOSE(13X19.8X600) |
| 19 | 09400-45411-000 | CLAMP | CLAMP |
| 20 | 09401-18406-000 | CLIP | CLIP |
| 21 | 09402-50512-000 | CLAMP | CLAMP |
| 1 | 89100-68L00-000 | Tank, assy fuel | Tank, assy fuel |
| 1 | 89100-68L10-000 | Tank, assy fuel | Tank, assy fuel |
| 1 | 89100-68L20-000 | Tank, assy fuel | Tank, assy fuel |
| 2 | 89191-68L00-000 | NUT,FUEL PUMP LOCK | NUT,FUEL PUMP LOCK |
| 3 | 89192-62J00-000 | O-RING,FUEL PUMP | O-RING,FUEL PUMP |
| 10 | 89201-68L00-000 | Neck assy, fuel filler | Neck assy, fuel filler |
| 10 | 89201-68L10-000 | Neck assy, fuel filler | Neck assy, fuel filler |
| 11 | 89232-57L00-000 | COVER,FUEL FILLER NECK | COVER,FUEL FILLER NECK |
| 12 | 89241-68L00-000 | HOSE,FUEL TANK FILLER | HOSE,FUEL TANK FILLER |
| 13 | 89242-68L00-000 | CLAMP,FILLER&BREATHER HOSE | CLAMP,FILLER&BREATHER HOSE |
| 14 | 89260-77K01-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 15 | 89285-58J00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 4 | 89311-68L00-000 | Insulator, heat | Insulator, heat |
| 5 | 89315-62J00-000 | NUT,HEAT INSULATOR | NUT,HEAT INSULATOR |
| 6 | 89360-68L00-000 | Belt, fuel tank fixer rh | Belt, fuel tank fixer rh |
| 7 | 89370-68L00-000 | Belt, fuel tank fixer lh | Belt, fuel tank fixer lh |
| 8 | 89385-68L00-000 | Pad, fuel tank | Pad, fuel tank |
