Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 33 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 33 of 3,076 shared

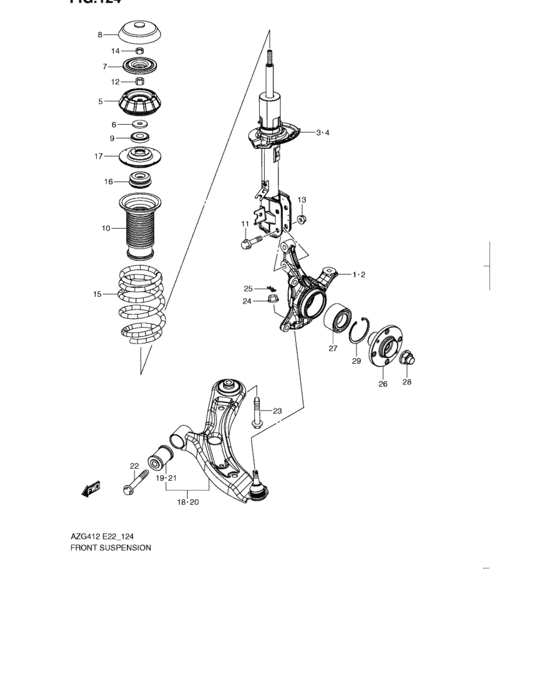

Front suspension (FRONT SUSPENSION) 33 / 33
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 45111-68L00-000 | Knuckle, steering rh | Knuckle, steering rh |
| 2 | 45151-68L00-000 | Knuckle, steering lh | Knuckle, steering lh |
| 3 | 41601-68L00-000 | Strut assy, fr suspension rh | Strut assy, fr suspension rh |
| 3 | 41601-68L50-000 | Strut assy, fr suspension rh | Strut assy, fr suspension rh |
| 4 | 41602-68L00-000 | Strut assy, fr suspension lh | Strut assy, fr suspension lh |
| 4 | 41602-68L50-000 | Strut assy, fr suspension lh | Strut assy, fr suspension lh |
| 5 | 41710-68L00-000 | SUPPORT,FRONT STRUT | SUPPORT,FRONT STRUT |
| 6 | 41711-57K00-000 | PLATE,STRUT BEARING | PLATE,STRUT BEARING |
| 7 | 41720-79J10-000 | STOPPER,FRONT STRUT REBOUND | STOPPER,FRONT STRUT REBOUND |
| 7 | 41720-79J11-000 | Stopper,front Strut Rebound | Stopper,front Strut Rebound |
| 8 | 41724-63J00-000 | CAP,STRUT ROD | CAP,STRUT ROD |
| 9 | 41742-57K00-000 | BEARING,FR STRUT | BEARING,FR STRUT |
| 10 | 41931-68L00-000 | COVER,STRUT DUST | COVER,STRUT DUST |
| 11 | 09103-12088-000 | Bolt,12x50 | Bolt,12x50 |
| 12 | 09140-12049-000 | NUT | NUT |
| 13 | 09159-12064-000 | NUT | NUT |
| 14 | 08310-0012A-000 | NUT | NUT |
| 15 | 41111-68L00-000 | Spring, front coil | Spring, front coil |
| 15 | 41111-68L50-000 | Spring, front coil | Spring, front coil |
| 16 | 42111-68L00-000 | Stopper, front bump | Stopper, front bump |
| 17 | 41230-68L00-000 | Seat, front spring upper | Seat, front spring upper |
| 18 | 45201-68L00-000 | Arm assy, front suspension rh | Arm assy, front suspension rh |
| 19 | 45530-68L00-000 | Bushing, suspension arm front | Bushing, suspension arm front |
| 20 | 45202-68L00-000 | Arm assy, front suspension lh | Arm assy, front suspension lh |
| 22 | 09135-14011-000 | BOLT(14X90) | BOLT(14X90) |
| 23 | 09135-14018-000 | BOLT(14X77) | BOLT(14X77) |
| 24 | 09159-12069-000 | NUT | NUT |
| 25 | 09385-12002-000 | PIN,SNAP | PIN,SNAP |
| 26 | 43421-86G00-000 | HUB,FR WHL | HUB,FR WHL |
| 27 | 43440-51K00-000 | Bearing, front wheel | Bearing, front wheel |
| 27 | 43440-68L10-000 | BEARING,FR WHEEL | BEARING,FR WHEEL |
| 28 | 09159-18021-000 | Nut | Nut |
| 29 | 09381-72002-000 | RING,SNAP | RING,SNAP |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 14 | 08310-0012A-000 | NUT | NUT |
| 11 | 09103-12088-000 | Bolt,12x50 | Bolt,12x50 |
| 22 | 09135-14011-000 | BOLT(14X90) | BOLT(14X90) |
| 23 | 09135-14018-000 | BOLT(14X77) | BOLT(14X77) |
| 12 | 09140-12049-000 | NUT | NUT |
| 13 | 09159-12064-000 | NUT | NUT |
| 24 | 09159-12069-000 | NUT | NUT |
| 28 | 09159-18021-000 | Nut | Nut |
| 29 | 09381-72002-000 | RING,SNAP | RING,SNAP |
| 25 | 09385-12002-000 | PIN,SNAP | PIN,SNAP |
| 15 | 41111-68L00-000 | Spring, front coil | Spring, front coil |
| 15 | 41111-68L50-000 | Spring, front coil | Spring, front coil |
| 17 | 41230-68L00-000 | Seat, front spring upper | Seat, front spring upper |
| 3 | 41601-68L00-000 | Strut assy, fr suspension rh | Strut assy, fr suspension rh |
| 3 | 41601-68L50-000 | Strut assy, fr suspension rh | Strut assy, fr suspension rh |
| 4 | 41602-68L00-000 | Strut assy, fr suspension lh | Strut assy, fr suspension lh |
| 4 | 41602-68L50-000 | Strut assy, fr suspension lh | Strut assy, fr suspension lh |
| 5 | 41710-68L00-000 | SUPPORT,FRONT STRUT | SUPPORT,FRONT STRUT |
| 6 | 41711-57K00-000 | PLATE,STRUT BEARING | PLATE,STRUT BEARING |
| 7 | 41720-79J10-000 | STOPPER,FRONT STRUT REBOUND | STOPPER,FRONT STRUT REBOUND |
| 7 | 41720-79J11-000 | Stopper,front Strut Rebound | Stopper,front Strut Rebound |
| 8 | 41724-63J00-000 | CAP,STRUT ROD | CAP,STRUT ROD |
| 9 | 41742-57K00-000 | BEARING,FR STRUT | BEARING,FR STRUT |
| 10 | 41931-68L00-000 | COVER,STRUT DUST | COVER,STRUT DUST |
| 16 | 42111-68L00-000 | Stopper, front bump | Stopper, front bump |
| 26 | 43421-86G00-000 | HUB,FR WHL | HUB,FR WHL |
| 27 | 43440-51K00-000 | Bearing, front wheel | Bearing, front wheel |
| 27 | 43440-68L10-000 | BEARING,FR WHEEL | BEARING,FR WHEEL |
| 1 | 45111-68L00-000 | Knuckle, steering rh | Knuckle, steering rh |
| 2 | 45151-68L00-000 | Knuckle, steering lh | Knuckle, steering lh |
| 18 | 45201-68L00-000 | Arm assy, front suspension rh | Arm assy, front suspension rh |
| 20 | 45202-68L00-000 | Arm assy, front suspension lh | Arm assy, front suspension lh |
| 19 | 45530-68L00-000 | Bushing, suspension arm front | Bushing, suspension arm front |
