Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 28 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 28 of 3,076 shared

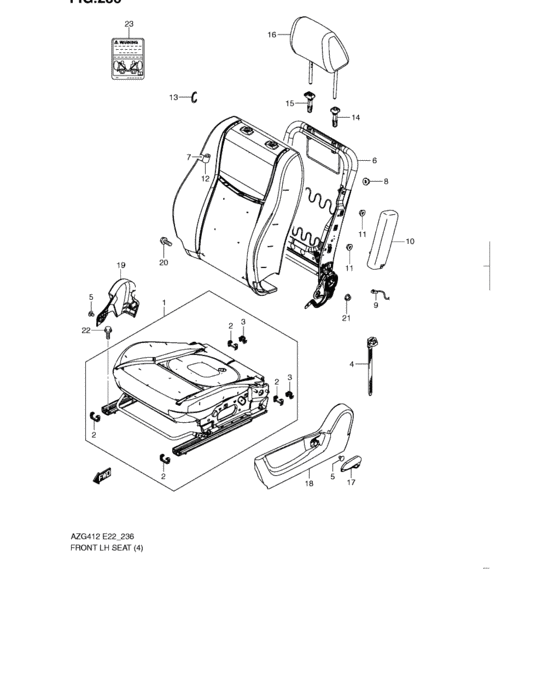

Front lh seat (RHD:5DR) 28 / 28
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 85102-68LA0-HVG | Cushion assy, front lh - Black | Cushion assy, front lh - Black |
| 2 | 86652-68L00-000 | PROTECTOR,LOWER RAIL END | PROTECTOR,LOWER RAIL END |
| 3 | 86654-68L00-000 | PROTECTOR,UPPER RAIL END | PROTECTOR,UPPER RAIL END |
| 4 | 85137-68L00-000 | Clamp | Clamp |
| 5 | 85295-51K00-000 | SCREW,RECLINING COVER | SCREW,RECLINING COVER |
| 6 | 85803-68LA0-000 | Frame assy, front back lh | Frame assy, front back lh |
| 7 | 85860-68LA0-000 | Pad, front back lh | Pad, front back lh |
| 8 | 85352-68L00-000 | Nut, side airbag bracket | Nut, side airbag bracket |
| 9 | 85355-68L00-000 | HARNESS ASSY,SIDE AIRBAG | HARNESS ASSY,SIDE AIRBAG |
| 10 | 85850-68L00-000 | Module assy, side air bag | Module assy, side air bag |
| 11 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 12 | 85880-68LC0-HVG | Trim, front back lh - Black | Trim, front back lh - Black |
| 13 | 09387-19001-000 | RING | RING |
| 14 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 14 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 14 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 15 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 15 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 15 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 16 | 86401-68L00-W6F | Headrestraint assy - Black | Headrestraint assy - Black |
| 17 | 85711-65J00-S1S | Knob,rclng,l | Knob,rclng,l |
| 17 | 85711-65JA0-S1S | KNOB,RCLNG,L | KNOB,RCLNG,L |
| 18 | 85721-68L00-S1S | Cover, fr reclining outside - Gray | Cover, fr reclining outside - Gray |
| 19 | 85741-68L00-S1S | Cover, fr reclining inside - Gray | Cover, fr reclining inside - Gray |
| 20 | 01550-1016A-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 21 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 22 | 09119-08097-000 | BOLT(8X25) | BOLT(8X25) |
| 23 | 85354-59JC1-000 | LABEL,SIDE AIRBAG | LABEL,SIDE AIRBAG |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 14 | 01550-1016A-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 27 | 08316-1008A-000 | NUT - Nut, idle gear shaft | NUT - Nut, idle gear shaft |
| 51 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 25 | 09119-08097-000 | BOLT(8X25) | BOLT(8X25) |
| 6 | 09387-19001-000 | RING | RING |
| 1 | 85102-68LA0-HVG | Cushion assy, front lh - Black | Cushion assy, front lh - Black |
| 7 | 85137-68L00-000 | Clamp | Clamp |
| 8 | 85295-51K00-000 | SCREW,RECLINING COVER | SCREW,RECLINING COVER |
| 17 | 85341-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 17 | 85341-63J11-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 17 | 85341-63J12-P4Z | Guide,headrestraint | Guide,headrestraint |
| 11 | 85352-68L00-000 | Nut, side airbag bracket | Nut, side airbag bracket |
| 26 | 85354-59JC1-000 | LABEL,SIDE AIRBAG | LABEL,SIDE AIRBAG |
| 12 | 85355-68L00-000 | HARNESS ASSY,SIDE AIRBAG | HARNESS ASSY,SIDE AIRBAG |
| 20 | 85711-65J00-S1S | Knob,rclng,l | Knob,rclng,l |
| 20 | 85711-65JA0-S1S | KNOB,RCLNG,L | KNOB,RCLNG,L |
| 21 | 85721-68L00-S1S | Cover, fr reclining outside - Gray | Cover, fr reclining outside - Gray |
| 22 | 85741-68L00-S1S | Cover, fr reclining inside - Gray | Cover, fr reclining inside - Gray |
| 9 | 85803-68LA0-000 | Frame assy, front back lh | Frame assy, front back lh |
| 18 | 85840-63J10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 18 | 85840-63J11-P4Z | GUIDE COMP,HEADRESTRAINT | GUIDE COMP,HEADRESTRAINT |
| 18 | 85840-63J12-P4Z | Guide Comp,headrestraint | Guide Comp,headrestraint |
| 13 | 85850-68L00-000 | Module assy, side air bag | Module assy, side air bag |
| 10 | 85860-68LA0-000 | Pad, front back lh | Pad, front back lh |
| 13 | 85880-68LC0-HVG | Trim, front back lh - Black | Trim, front back lh - Black |
| 19 | 86401-68L00-W6F | Headrestraint assy - Black | Headrestraint assy - Black |
| 3 | 86652-68L00-000 | PROTECTOR,LOWER RAIL END | PROTECTOR,LOWER RAIL END |
| 4 | 86654-68L00-000 | PROTECTOR,UPPER RAIL END | PROTECTOR,UPPER RAIL END |
