Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 36 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 36 of 3,076 shared

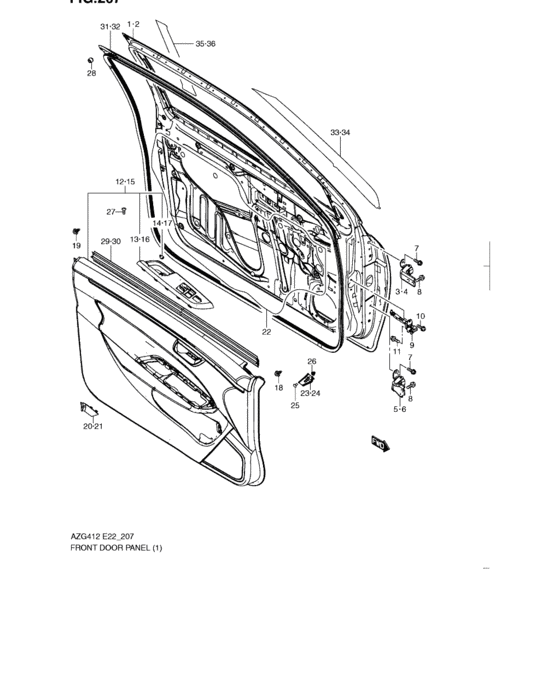

Front door panel (LHD:3DR) 36 / 36
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 68001-69L00-000 | Panel assy, front door rh | Panel assy, front door rh |
| 2 | 68002-69L00-000 | Panel assy, front door lh | Panel assy, front door lh |
| 3 | 69310-68LA0-000 | Hinge, front door upper rh | Hinge, front door upper rh |
| 4 | 69320-68LA0-000 | Hinge, front door upper lh | Hinge, front door upper lh |
| 5 | 69330-68LA0-000 | Hinge, front door lower rh | Hinge, front door lower rh |
| 6 | 69340-68LA0-000 | Hinge, front door lower lh | Hinge, front door lower lh |
| 7 | 09103-08389-000 | BOLT(8X24) | BOLT(8X24) |
| 8 | 01551-0820A-000 | Bolt | Bolt |
| 9 | 81810-62J02-000 | Stop, front door open | Stop, front door open |
| 9 | 81810-54P00-000 | STOP,FR DR OPEN | STOP,FR DR OPEN |
| 10 | 09122-86004-000 | SCREW(6X20) | SCREW(6X20) |
| 11 | 09112-08015-000 | BOLT(8X25) | BOLT(8X25) |
| 12 | 83710-69LB0-JJL | Trim, front door rh - Gray/black | Trim, front door rh - Gray/black |
| 13 | 83763-68L00-S1S | Bezel, p/w switch sub rh - Gray | Bezel, p/w switch sub rh - Gray |
| 14 | 83752-79J00-S1S | Cap, inside pull case - Gray | Cap, inside pull case - Gray |
| 15 | 83720-69LB0-JJL | Trim, front door lh - Gray/black | Trim, front door lh - Gray/black |
| 16 | 83762-69L00-S1S | Bezel, p/w switch main lh - Gray | Bezel, p/w switch main lh - Gray |
| 18 | 09409-10312-000 | CLIP | CLIP |
| 19 | 09409-06314-S1S | CLIP(GRAY) | CLIP(GRAY) |
| 20 | 83755-68L00-S1S | Cap, inside handle bezel rh - Gray | Cap, inside handle bezel rh - Gray |
| 21 | 83756-68L00-S1S | Cap, inside handle bezel lh - Gray | Cap, inside handle bezel lh - Gray |
| 22 | 83911-69L00-000 | Cover, door sealing | Cover, door sealing |
| 23 | 83751-75HA0-000 | BRACKET,DR TRIM,R | BRACKET,DR TRIM,R |
| 24 | 83756-75HA0-000 | BRACKET,DR TRIM,L | BRACKET,DR TRIM,L |
| 25 | 03241-0612A-000 | SCREW | SCREW |
| 26 | 09148-06007-000 | NUT | NUT |
| 27 | 09132-05058-000 | SCREW(5X12) | SCREW(5X12) |
| 28 | 82711-65J00-000 | CUSHION | CUSHION |
| 29 | 83851-69L00-000 | Weatherstrip, door inner rh | Weatherstrip, door inner rh |
| 30 | 83861-69L00-000 | Weatherstrip, door inner lh | Weatherstrip, door inner lh |
| 31 | 84641-69L00-000 | Weatherstrip, door opng rh | Weatherstrip, door opng rh |
| 32 | 84651-69L00-000 | Weatherstrip, door opng lh | Weatherstrip, door opng lh |
| 33 | 83921-68L00-0CE | Tape, front door outer fr rh - Black | Tape, front door outer fr rh - Black |
| 34 | 83922-68L00-0CE | Tape, front door outer fr lh - Black | Tape, front door outer fr lh - Black |
| 35 | 83923-69L00-0CE | Tape, front door outer rr rh - Black | Tape, front door outer rr rh - Black |
| 36 | 83924-69L00-0CE | Tape, front door outer rr lh - Black | Tape, front door outer rr lh - Black |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 30 | 01551-0820A-000 | Bolt | Bolt |
| 25 | 03241-0612A-000 | SCREW | SCREW |
| 7 | 09103-08389-000 | BOLT(8X24) | BOLT(8X24) |
| 11 | 09112-08015-000 | BOLT(8X25) | BOLT(8X25) |
| 10 | 09122-86004-000 | SCREW(6X20) | SCREW(6X20) |
| 17 | 09132-05058-000 | SCREW(5X12) | SCREW(5X12) |
| 22 | 09148-06007-000 | NUT | NUT |
| 19 | 09409-06314-S1S | CLIP(GRAY) | CLIP(GRAY) |
| 13 | 09409-10312-000 | CLIP | CLIP |
| 1 | 68001-69L00-000 | Panel assy, front door rh | Panel assy, front door rh |
| 2 | 68002-69L00-000 | Panel assy, front door lh | Panel assy, front door lh |
| 3 | 69310-68LA0-000 | Hinge, front door upper rh | Hinge, front door upper rh |
| 4 | 69320-68LA0-000 | Hinge, front door upper lh | Hinge, front door upper lh |
| 5 | 69330-68LA0-000 | Hinge, front door lower rh | Hinge, front door lower rh |
| 6 | 69340-68LA0-000 | Hinge, front door lower lh | Hinge, front door lower lh |
| 9 | 81810-54P00-000 | STOP,FR DR OPEN | STOP,FR DR OPEN |
| 9 | 81810-62J02-000 | Stop, front door open | Stop, front door open |
| 28 | 82711-65J00-000 | CUSHION | CUSHION |
| 12 | 83710-69LB0-JJL | Trim, front door rh - Gray/black | Trim, front door rh - Gray/black |
| 15 | 83720-69LB0-JJL | Trim, front door lh - Gray/black | Trim, front door lh - Gray/black |
| 23 | 83751-75HA0-000 | BRACKET,DR TRIM,R | BRACKET,DR TRIM,R |
| 14 | 83752-79J00-S1S | Cap, inside pull case - Gray | Cap, inside pull case - Gray |
| 20 | 83755-68L00-S1S | Cap, inside handle bezel rh - Gray | Cap, inside handle bezel rh - Gray |
| 21 | 83756-68L00-S1S | Cap, inside handle bezel lh - Gray | Cap, inside handle bezel lh - Gray |
| 24 | 83756-75HA0-000 | BRACKET,DR TRIM,L | BRACKET,DR TRIM,L |
| 16 | 83762-69L00-S1S | Bezel, p/w switch main lh - Gray | Bezel, p/w switch main lh - Gray |
| 13 | 83763-68L00-S1S | Bezel, p/w switch sub rh - Gray | Bezel, p/w switch sub rh - Gray |
| 29 | 83851-69L00-000 | Weatherstrip, door inner rh | Weatherstrip, door inner rh |
| 30 | 83861-69L00-000 | Weatherstrip, door inner lh | Weatherstrip, door inner lh |
| 22 | 83911-69L00-000 | Cover, door sealing | Cover, door sealing |
| 33 | 83921-68L00-0CE | Tape, front door outer fr rh - Black | Tape, front door outer fr rh - Black |
| 34 | 83922-68L00-0CE | Tape, front door outer fr lh - Black | Tape, front door outer fr lh - Black |
| 35 | 83923-69L00-0CE | Tape, front door outer rr rh - Black | Tape, front door outer rr rh - Black |
| 36 | 83924-69L00-0CE | Tape, front door outer rr lh - Black | Tape, front door outer rr lh - Black |
| 31 | 84641-69L00-000 | Weatherstrip, door opng rh | Weatherstrip, door opng rh |
| 32 | 84651-69L00-000 | Weatherstrip, door opng lh | Weatherstrip, door opng lh |
