Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 14 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 14 of 3,076 shared

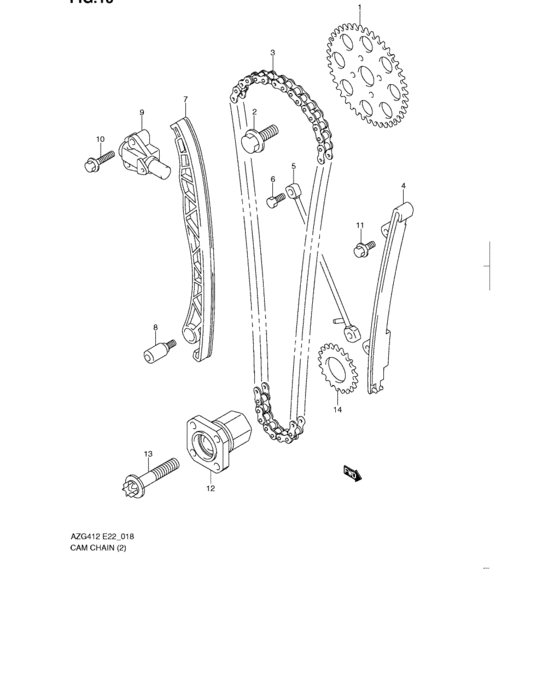

Cam chain (D13A) 14 / 14
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 12743-N86J0-000 | Sprocket, camshaft timing | Sprocket, camshaft timing |
| 2 | 12753-N86J0-000 | Bolt - 12x33 | Bolt - 12x33 |
| 3 | 12761-N86J0-100 | Chain, timing | Chain, timing |
| 4 | 12771-N86J0-000 | Guide, Timing Chain | Guide, Timing Chain |
| 5 | 12781-M86J0-000 | Pipe, chain oil jet | Pipe, chain oil jet |
| 6 | 12782-N86J0-000 | Bolt, chain oil jet pipe | Bolt, chain oil jet pipe |
| 7 | 12811-N86J0-000 | Lever, timing chain tensioner | Lever, timing chain tensioner |
| 8 | 12812-N86J0-000 | Bolt, tensioner lever | Bolt, tensioner lever |
| 9 | 12831-N86J0-000 | Adjuster assy, tensioner | Adjuster assy, tensioner |
| 10 | 12832-N86J0-000 | Bolt - 6x32 | Bolt - 6x32 |
| 11 | 13943-N86J0-000 | Bolt, eng harn brkt fr | Bolt, eng harn brkt fr |
| 12 | 16211-M86J0-000 | Flange, oil pump drive | Flange, oil pump drive |
| 13 | 16215-N86J0-000 | Bolt, oil pump flange - 14x60 | Bolt, oil pump flange - 14x60 |
| 14 | 12631-N86J0-000 | Sprocket, crank timing | Sprocket, crank timing |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 14 | 12631-N86J0-000 | Sprocket, crank timing | Sprocket, crank timing |
| 1 | 12743-N86J0-000 | Sprocket, camshaft timing | Sprocket, camshaft timing |
| 2 | 12753-N86J0-000 | Bolt - 12x33 | Bolt - 12x33 |
| 3 | 12761-N86J0-100 | Chain, timing | Chain, timing |
| 4 | 12771-N86J0-000 | Guide, Timing Chain | Guide, Timing Chain |
| 5 | 12781-M86J0-000 | Pipe, chain oil jet | Pipe, chain oil jet |
| 6 | 12782-N86J0-000 | Bolt, chain oil jet pipe | Bolt, chain oil jet pipe |
| 7 | 12811-N86J0-000 | Lever, timing chain tensioner | Lever, timing chain tensioner |
| 8 | 12812-N86J0-000 | Bolt, tensioner lever | Bolt, tensioner lever |
| 9 | 12831-N86J0-000 | Adjuster assy, tensioner | Adjuster assy, tensioner |
| 10 | 12832-N86J0-000 | Bolt - 6x32 | Bolt - 6x32 |
| 11 | 13943-N86J0-000 | Bolt, eng harn brkt fr | Bolt, eng harn brkt fr |
| 12 | 16211-M86J0-000 | Flange, oil pump drive | Flange, oil pump drive |
| 13 | 16215-N86J0-000 | Bolt, oil pump flange - 14x60 | Bolt, oil pump flange - 14x60 |
