Search › Compare › AZG412 × AZG413
AZG412
Suzuki KEI-SWIFT — 26 of 3,076 shared
AZG413
Suzuki KEI-SWIFT — 26 of 3,076 shared

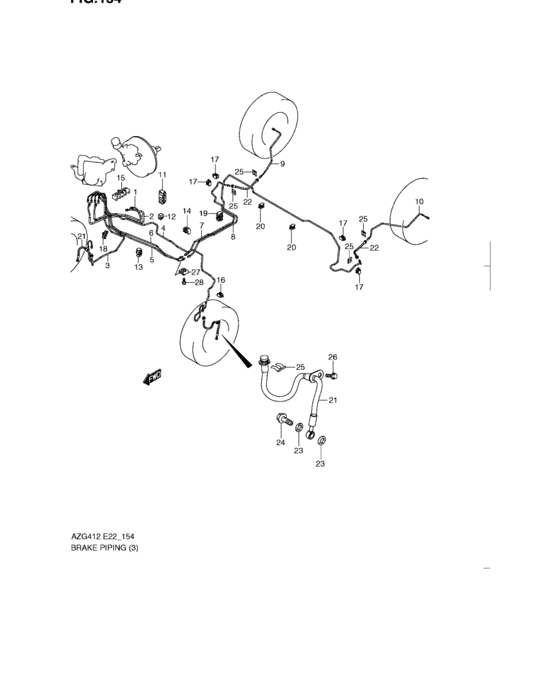

Brake piping (RHD:W/REAR DRUM BRAKE) 26 / 26
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 1 | 51410-68L50-000 | Pipe, ma pri to hu | Pipe, ma pri to hu |
| 2 | 51420-68L50-000 | Pipe, ma sec to hu | Pipe, ma sec to hu |
| 3 | 51430-68L00-000 | Pipe, hu to fr brake hose rh | Pipe, hu to fr brake hose rh |
| 4 | 51440-68L50-000 | Pipe, hu to fr brake hose lh | Pipe, hu to fr brake hose lh |
| 5 | 51450-68L00-000 | Pipe, hu to joint rh | Pipe, hu to joint rh |
| 6 | 51460-68L00-000 | Pipe, hu to joint lh | Pipe, hu to joint lh |
| 7 | 51470-68L00-000 | Pipe, joint to rr bk hose rh | Pipe, joint to rr bk hose rh |
| 8 | 51480-68L00-000 | Pipe, joint to rr bk hose lh | Pipe, joint to rr bk hose lh |
| 9 | 51510-68L00-000 | Pipe, rr bk hose to rr w/c rh | Pipe, rr bk hose to rr w/c rh |
| 10 | 51520-68L00-000 | Pipe, rr bk hose to rr w/c lh | Pipe, rr bk hose to rr w/c lh |
| 11 | 51751-65J40-000 | CLAMP,BK PIPE FR SIDE | CLAMP,BK PIPE FR SIDE |
| 12 | 51751-65J50-000 | CLAMP,BK PIPE FR SIDE | CLAMP,BK PIPE FR SIDE |
| 13 | 51751-76G00-000 | CLAMP,BK PIPE DASH | CLAMP,BK PIPE DASH |
| 15 | 51761-62J40-000 | CLAMP,BK PIPE 4 | CLAMP,BK PIPE 4 |
| 16 | 51761-62J70-000 | CLAMP,BRAKE PIPE AXLE NO.2 | CLAMP,BRAKE PIPE AXLE NO.2 |
| 18 | 51761-68L00-000 | CLAMP,BRAKE PIPE SIDE MEMBER,R | CLAMP,BRAKE PIPE SIDE MEMBER,R |
| 19 | 51761-76G00-000 | CLAMP,BK PIPE DASH LWR | CLAMP,BK PIPE DASH LWR |
| 20 | 51761-79J00-000 | CLAMP | CLAMP |
| 21 | 51550-68L00-000 | Hose, fr brake flexible | Hose, fr brake flexible |
| 22 | 51570-79J00-000 | Hose, rr brake flexible rh | Hose, rr brake flexible rh |
| 23 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 24 | 09360-10046-000 | Union bolt | Union bolt |
| 25 | 09383-13003-000 | E-RING | E-RING |
| 26 | 01551-0816C-000 | Bolt | Bolt |
| 27 | 51630-82040-000 | JOINT,4WAY BRAKE | JOINT,4WAY BRAKE |
| 28 | 02162-0625A-000 | SCREW | SCREW |
| # | OEM | AZG412 | AZG413 |
|---|---|---|---|
| 29 | 01551-0816C-000 | Bolt | Bolt |
| 31 | 02162-0625A-000 | SCREW | SCREW |
| 25 | 09161-10009-000 | WASHER(10X15X1.5) - Lock washer | WASHER(10X15X1.5) - Lock washer |
| 27 | 09360-10046-000 | Union bolt | Union bolt |
| 28 | 09383-13003-000 | E-RING | E-RING |
| 1 | 51410-68L50-000 | Pipe, ma pri to hu | Pipe, ma pri to hu |
| 2 | 51420-68L50-000 | Pipe, ma sec to hu | Pipe, ma sec to hu |
| 3 | 51430-68L00-000 | Pipe, hu to fr brake hose rh | Pipe, hu to fr brake hose rh |
| 4 | 51440-68L50-000 | Pipe, hu to fr brake hose lh | Pipe, hu to fr brake hose lh |
| 5 | 51450-68L00-000 | Pipe, hu to joint rh | Pipe, hu to joint rh |
| 6 | 51460-68L00-000 | Pipe, hu to joint lh | Pipe, hu to joint lh |
| 7 | 51470-68L00-000 | Pipe, joint to rr bk hose rh | Pipe, joint to rr bk hose rh |
| 8 | 51480-68L00-000 | Pipe, joint to rr bk hose lh | Pipe, joint to rr bk hose lh |
| 9 | 51510-68L00-000 | Pipe, rr bk hose to rr w/c rh | Pipe, rr bk hose to rr w/c rh |
| 10 | 51520-68L00-000 | Pipe, rr bk hose to rr w/c lh | Pipe, rr bk hose to rr w/c lh |
| 22 | 51550-68L00-000 | Hose, fr brake flexible | Hose, fr brake flexible |
| 23 | 51570-79J00-000 | Hose, rr brake flexible rh | Hose, rr brake flexible rh |
| 30 | 51630-82040-000 | JOINT,4WAY BRAKE | JOINT,4WAY BRAKE |
| 11 | 51751-65J40-000 | CLAMP,BK PIPE FR SIDE | CLAMP,BK PIPE FR SIDE |
| 12 | 51751-65J50-000 | CLAMP,BK PIPE FR SIDE | CLAMP,BK PIPE FR SIDE |
| 13 | 51751-76G00-000 | CLAMP,BK PIPE DASH | CLAMP,BK PIPE DASH |
| 15 | 51761-62J40-000 | CLAMP,BK PIPE 4 | CLAMP,BK PIPE 4 |
| 16 | 51761-62J70-000 | CLAMP,BRAKE PIPE AXLE NO.2 | CLAMP,BRAKE PIPE AXLE NO.2 |
| 18 | 51761-68L00-000 | CLAMP,BRAKE PIPE SIDE MEMBER,R | CLAMP,BRAKE PIPE SIDE MEMBER,R |
| 19 | 51761-76G00-000 | CLAMP,BK PIPE DASH LWR | CLAMP,BK PIPE DASH LWR |
| 20 | 51761-79J00-000 | CLAMP | CLAMP |
