Search › Compare › AT150 × CT150
AT150
Toyota CARINA — 18 of 6,033 shared
CT150
Toyota CARINA — 18 of 5,869 shared

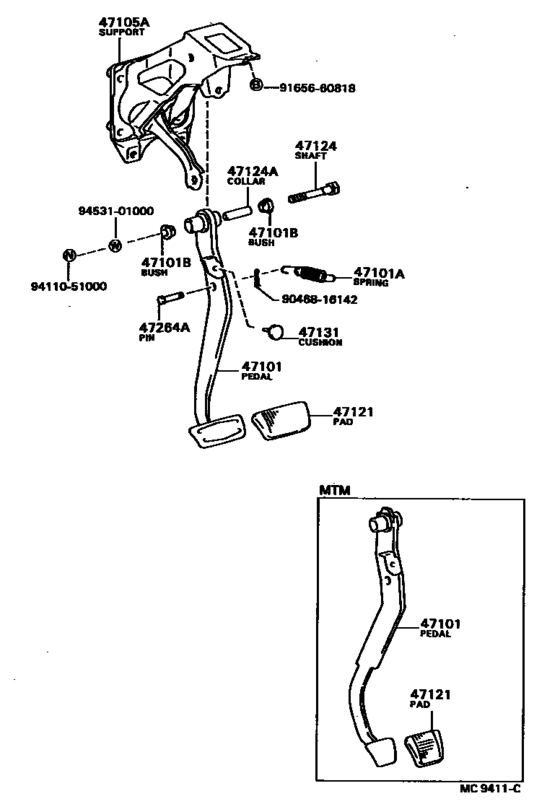

Brake Pedal & Bracket ([05.1984 - ] (8405- )) 18 / 18
| # | OEM | AT150 | CT150 |
|---|---|---|---|
| 47101 | 47101-20260 | Pedal Sub-Assy, Brake | Pedal Sub-Assy, Brake |
| 47101 | 90507-12011 | Spring(For Clutch Pedal) | Spring(For Clutch Pedal) |
| 47101 | 90386-13015 | Bush(For Clutch Pedal) | Bush(For Clutch Pedal) |
| 47101 | 90386-13192 | Bush(For Over Center Plate) | Bush(For Over Center Plate) |
| 47105 | 55106-20200 | Support Sub-Assy, Brake Pedal | Support Sub-Assy, Brake Pedal |
| 47105 | 55106-20201 | Support Sub-Assy, Brake Pedal | Support Sub-Assy, Brake Pedal |
| 47121 | 47121-30050 | Pad, Brake Pedal | Pad, Brake Pedal |
| 47124 | 90101-10015 | Shaft, Clutch Pedal | Shaft, Clutch Pedal |
| 47124 | 90387-10003 | Collar, Clutch Pedal Shaft | Collar, Clutch Pedal Shaft |
| 47131 | 90541-06008 | Cushion, No.1(For Clutch Pedal) | Cushion, No.1(For Clutch Pedal) |
| 47131 | 90541-06032 | Cushion, No.1(For Clutch Pedal) | Cushion, No.1(For Clutch Pedal) |
| 47131 | 90541-06036 | Cushion, No.1(For Clutch Pedal) | Cushion, No.1(For Clutch Pedal) |
| 47264 | 90249-08051 | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) | Clip(For Push Rod Clevis Pin) |
| 9165660818 | 91656-60818 | Clamp Or Clip, Hose(for Radiator Outlet No.1) | Clamp Or Clip, Hose(for Radiator Outlet No.1) |
| 9165660818 | 91651-B0814 | Bolt with washer | Bolt with washer |
| 9411051000 | 94110-51000 | Nut(For Steering Center Arm) | Nut(For Steering Center Arm) |
| 9453101000 | 94531-01000 | WASHER | WASHER |
| # | OEM | AT150 | CT150 |
|---|---|---|---|
| 47101 | 47101-20260 | Pedal Sub-Assy, Brake | Pedal Sub-Assy, Brake |
| 47121 | 47121-30050 | Pad, Brake Pedal | Pad, Brake Pedal |
| 47105 | 55106-20200 | Support Sub-Assy, Brake Pedal | Support Sub-Assy, Brake Pedal |
| 47105 | 55106-20201 | Support Sub-Assy, Brake Pedal | Support Sub-Assy, Brake Pedal |
| 47124 | 90101-10015 | Shaft, Clutch Pedal | Shaft, Clutch Pedal |
| 47264 | 90249-08051 | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) | Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
| 47101 | 90386-13015 | Bush(For Clutch Pedal) | Bush(For Clutch Pedal) |
| 47101 | 90386-13192 | Bush(For Over Center Plate) | Bush(For Over Center Plate) |
| 47124 | 90387-10003 | Collar, Clutch Pedal Shaft | Collar, Clutch Pedal Shaft |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) | Clip(For Push Rod Clevis Pin) |
| 47101 | 90507-12011 | Spring(For Clutch Pedal) | Spring(For Clutch Pedal) |
| 47131 | 90541-06008 | Cushion, No.1(For Clutch Pedal) | Cushion, No.1(For Clutch Pedal) |
| 47131 | 90541-06032 | Cushion, No.1(For Clutch Pedal) | Cushion, No.1(For Clutch Pedal) |
| 47131 | 90541-06036 | Cushion, No.1(For Clutch Pedal) | Cushion, No.1(For Clutch Pedal) |
| 9165660818 | 91651-B0814 | Bolt with washer | Bolt with washer |
| 9165660818 | 91656-60818 | Clamp Or Clip, Hose(for Radiator Outlet No.1) | Clamp Or Clip, Hose(for Radiator Outlet No.1) |
| 9411051000 | 94110-51000 | Nut(For Steering Center Arm) | Nut(For Steering Center Arm) |
| 9453101000 | 94531-01000 | WASHER | WASHER |
