Search › Compare › AGV10 × AGV15
AGV10
Toyota VENZA — 46 of 6,353 shared
AGV15
Toyota VENZA — 46 of 6,798 shared

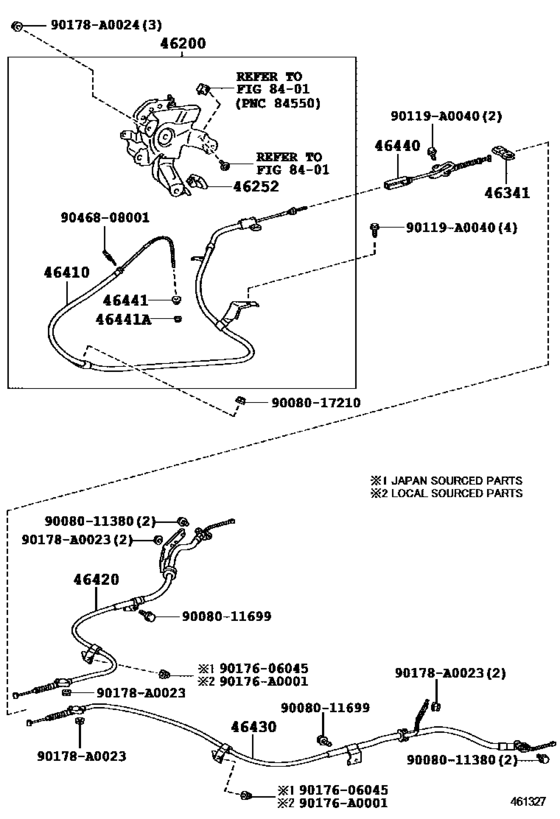

Parking Brake & Cable ([03.2013 - ] (1303- )) 46 / 46
| # | OEM | AGV10 | AGV15 |
|---|---|---|---|
| 46200 | 46200-0T011 | Pedal Assy, Parking Brake Control | Pedal Assy, Parking Brake Control |
| 46252 | 46252-0T010 | Pad, Parking Pedal | Pad, Parking Pedal |
| 46341 | 46341-48010 | Equalizer, Parking Brake | Equalizer, Parking Brake |
| 46410 | 46410-0T010 | Cable Assy, Parking Brake, No.1 | Cable Assy, Parking Brake, No.1 |
| 46420 | 46420-0T010 | Cable Assy, Parking Brake, No.2 | Cable Assy, Parking Brake, No.2 |
| 46430 | 46430-0T010 | Cable Assy, Parking Brake, No.3 | Cable Assy, Parking Brake, No.3 |
| 46440 | 46440-0T010 | Cable Assy, Parking Brake, No.4 | Cable Assy, Parking Brake, No.4 |
| 46441 | 46441-12010 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
| 46441 | 90080-17209 | Nut, Wire Adjusting, No.2 | Nut, Wire Adjusting, No.2 |
| 46503 | 46503-0T010 | Plate Sub-Assy, Parking Brake, Rh | Plate Sub-Assy, Parking Brake, Rh |
| 46504 | 46504-0T010 | Plate Sub-Assy, Parking Brake, Lh | Plate Sub-Assy, Parking Brake, Lh |
| 46540 | 46540-0T010 | Shoe Assy, Parking Brake, Rh Or Center No.1 | Shoe Assy, Parking Brake, Rh Or Center No.1 |
| 46540 | 46540-48010 | Shoe Assy, Parking Brake, Rh Or Center No.1 | Shoe Assy, Parking Brake, Rh Or Center No.1 |
| 46550 | 46550-0E010 | Shoe Assy, Parking Brake, Rh Or Center No.2 | Shoe Assy, Parking Brake, Rh Or Center No.2 |
| 46550 | 90213-07018 | Washer, Type C(For Parking Brake Shoe) | Washer, Type C(For Parking Brake Shoe) |
| 46550 | 90506-12051 | Spring, Tension, No.2(For Parking Brake Shoe Return) | Spring, Tension, No.2(For Parking Brake Shoe Return) |
| 46550 | 90905-A6001 | Spring, Tension, No.1(For Parking Brake Shoe Return) | Spring, Tension, No.1(For Parking Brake Shoe Return) |
| 46550 | 90564-09184 | Shim(For Parking Brake Shoe) | Shim(For Parking Brake Shoe) |
| 46550 | 90564-09185 | Shim(For Parking Brake Shoe) | Shim(For Parking Brake Shoe) |
| 46550 | 90564-09186 | Shim(For Parking Brake Shoe) | Shim(For Parking Brake Shoe) |
| 46590 | 46590-0E010 | Shoe Assy, Parking Brake, Lh No.2 | Shoe Assy, Parking Brake, Lh No.2 |
| 47405 | 46605-06080 | Screw Set, Shoe Adjusting, Rh(For Parking Brake) | Screw Set, Shoe Adjusting, Rh(For Parking Brake) |
| 47406 | 46606-06080 | Screw Set, Shoe Adjusting, Lh(For Parking Brake) | Screw Set, Shoe Adjusting, Lh(For Parking Brake) |
| 47447 | 90501-A0002 | Spring, Compression(For Parking Brake Shoe Hold Down) | Spring, Compression(For Parking Brake Shoe Hold Down) |
| 47447 | 47447-30020 | Pin, Shoe Hold Down Spring(For Front Brake) | Pin, Shoe Hold Down Spring(For Front Brake) |
| 47447 | 47447-50010 | Pin, Shoe Hold Down Spring(For Parking Brake) | Pin, Shoe Hold Down Spring(For Parking Brake) |
| 47447 | 90501-A0001 | Spring, Compression, No.1(For Parking Brake Shoe Hold Down) | Spring, Compression, No.1(For Parking Brake Shoe Hold Down) |
| 47449 | 47449-30030 | Cup, Brake Shoe Hold Down | Cup, Brake Shoe Hold Down |
| 47449 | 47449-40010 | Cup, Brake Shoe Hold Down | Cup, Brake Shoe Hold Down |
| 47456 | 47456-33010 | Plate, Shoe Guide(For Parking Brake) | Plate, Shoe Guide(For Parking Brake) |
| 47459 | 47459-30010 | Bolt, Parking Brake Shoe Guide Plate Set | Bolt, Parking Brake Shoe Guide Plate Set |
| 47611 | 46611-0E010 | Lever, Parking Brake Shoe, Rh | Lever, Parking Brake Shoe, Rh |
| 47612 | 46621-0E010 | Lever, Parking Brake Shoe, Lh | Lever, Parking Brake Shoe, Lh |
| 47613 | 90501-A0004 | Spring, Tension, No.2(For Parking Brake Shoe Return) | Spring, Tension, No.2(For Parking Brake Shoe Return) |
| 47613 | 47613-28010 | Strut, Parking Brake Shoe | Strut, Parking Brake Shoe |
| 47614 | 47614-28010 | Strut, Parking Brake Shoe | Strut, Parking Brake Shoe |
| 90119 | 90119-A0040 | New Genuine Part | New Genuine Part |
| 90176 | 90176-A0001 | New Genuine Part | New Genuine Part |
| 90178 | 90178-A0023 | Nut, Wire Adjusting, No.2 | Nut, Wire Adjusting, No.2 |
| 90178 | 90178-A0024 | New Genuine Part | New Genuine Part |
| 9008011380 | 90080-11380 | New Genuine Part | New Genuine Part |
| 9008011380 | 91611-G0612 | Bolt | Bolt |
| 9008011699 | 90080-11699 | Bolt, W/washer | Bolt, W/washer |
| 9008017210 | 90080-17210 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017606045 | 90176-06045 | NUT, CAP CYL HEAD COVER | NUT, CAP CYL HEAD COVER |
| 9046808001 | 90468-08001 | CLIP | CLIP |
| # | OEM | AGV10 | AGV15 |
|---|---|---|---|
| 46200 | 46200-0T011 | Pedal Assy, Parking Brake Control | Pedal Assy, Parking Brake Control |
| 46252 | 46252-0T010 | Pad, Parking Pedal | Pad, Parking Pedal |
| 46341 | 46341-48010 | Equalizer, Parking Brake | Equalizer, Parking Brake |
| 46410 | 46410-0T010 | Cable Assy, Parking Brake, No.1 | Cable Assy, Parking Brake, No.1 |
| 46420 | 46420-0T010 | Cable Assy, Parking Brake, No.2 | Cable Assy, Parking Brake, No.2 |
| 46430 | 46430-0T010 | Cable Assy, Parking Brake, No.3 | Cable Assy, Parking Brake, No.3 |
| 46440 | 46440-0T010 | Cable Assy, Parking Brake, No.4 | Cable Assy, Parking Brake, No.4 |
| 46441 | 46441-12010 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
| 46503 | 46503-0T010 | Plate Sub-Assy, Parking Brake, Rh | Plate Sub-Assy, Parking Brake, Rh |
| 46504 | 46504-0T010 | Plate Sub-Assy, Parking Brake, Lh | Plate Sub-Assy, Parking Brake, Lh |
| 46540 | 46540-0T010 | Shoe Assy, Parking Brake, Rh Or Center No.1 | Shoe Assy, Parking Brake, Rh Or Center No.1 |
| 46540 | 46540-48010 | Shoe Assy, Parking Brake, Rh Or Center No.1 | Shoe Assy, Parking Brake, Rh Or Center No.1 |
| 46550 | 46550-0E010 | Shoe Assy, Parking Brake, Rh Or Center No.2 | Shoe Assy, Parking Brake, Rh Or Center No.2 |
| 46590 | 46590-0E010 | Shoe Assy, Parking Brake, Lh No.2 | Shoe Assy, Parking Brake, Lh No.2 |
| 47405 | 46605-06080 | Screw Set, Shoe Adjusting, Rh(For Parking Brake) | Screw Set, Shoe Adjusting, Rh(For Parking Brake) |
| 47406 | 46606-06080 | Screw Set, Shoe Adjusting, Lh(For Parking Brake) | Screw Set, Shoe Adjusting, Lh(For Parking Brake) |
| 47611 | 46611-0E010 | Lever, Parking Brake Shoe, Rh | Lever, Parking Brake Shoe, Rh |
| 47612 | 46621-0E010 | Lever, Parking Brake Shoe, Lh | Lever, Parking Brake Shoe, Lh |
| 47447 | 47447-30020 | Pin, Shoe Hold Down Spring(For Front Brake) | Pin, Shoe Hold Down Spring(For Front Brake) |
| 47447 | 47447-50010 | Pin, Shoe Hold Down Spring(For Parking Brake) | Pin, Shoe Hold Down Spring(For Parking Brake) |
| 47449 | 47449-30030 | Cup, Brake Shoe Hold Down | Cup, Brake Shoe Hold Down |
| 47449 | 47449-40010 | Cup, Brake Shoe Hold Down | Cup, Brake Shoe Hold Down |
| 47456 | 47456-33010 | Plate, Shoe Guide(For Parking Brake) | Plate, Shoe Guide(For Parking Brake) |
| 47459 | 47459-30010 | Bolt, Parking Brake Shoe Guide Plate Set | Bolt, Parking Brake Shoe Guide Plate Set |
| 47613 | 47613-28010 | Strut, Parking Brake Shoe | Strut, Parking Brake Shoe |
| 47614 | 47614-28010 | Strut, Parking Brake Shoe | Strut, Parking Brake Shoe |
| 9008011380 | 90080-11380 | New Genuine Part | New Genuine Part |
| 9008011699 | 90080-11699 | Bolt, W/washer | Bolt, W/washer |
| 46441 | 90080-17209 | Nut, Wire Adjusting, No.2 | Nut, Wire Adjusting, No.2 |
| 9008017210 | 90080-17210 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 90119 | 90119-A0040 | New Genuine Part | New Genuine Part |
| 9017606045 | 90176-06045 | NUT, CAP CYL HEAD COVER | NUT, CAP CYL HEAD COVER |
| 90176 | 90176-A0001 | New Genuine Part | New Genuine Part |
| 90178 | 90178-A0023 | Nut, Wire Adjusting, No.2 | Nut, Wire Adjusting, No.2 |
| 90178 | 90178-A0024 | New Genuine Part | New Genuine Part |
| 46550 | 90213-07018 | Washer, Type C(For Parking Brake Shoe) | Washer, Type C(For Parking Brake Shoe) |
| 9046808001 | 90468-08001 | CLIP | CLIP |
| 47447 | 90501-A0001 | Spring, Compression, No.1(For Parking Brake Shoe Hold Down) | Spring, Compression, No.1(For Parking Brake Shoe Hold Down) |
| 47447 | 90501-A0002 | Spring, Compression(For Parking Brake Shoe Hold Down) | Spring, Compression(For Parking Brake Shoe Hold Down) |
| 47613 | 90501-A0004 | Spring, Tension, No.2(For Parking Brake Shoe Return) | Spring, Tension, No.2(For Parking Brake Shoe Return) |
| 46550 | 90506-12051 | Spring, Tension, No.2(For Parking Brake Shoe Return) | Spring, Tension, No.2(For Parking Brake Shoe Return) |
| 46550 | 90564-09184 | Shim(For Parking Brake Shoe) | Shim(For Parking Brake Shoe) |
| 46550 | 90564-09185 | Shim(For Parking Brake Shoe) | Shim(For Parking Brake Shoe) |
| 46550 | 90564-09186 | Shim(For Parking Brake Shoe) | Shim(For Parking Brake Shoe) |
| 46550 | 90905-A6001 | Spring, Tension, No.1(For Parking Brake Shoe Return) | Spring, Tension, No.1(For Parking Brake Shoe Return) |
| 9008011380 | 91611-G0612 | Bolt | Bolt |
