Search › Compare › AGV10 × AGV15

AGV10 × AGV15

Shared 87 / Total 7,086 · Jaccard 85.6%
AGV10 Toyota VENZA — 87 of 6,353 shared
AGV15 Toyota VENZA — 87 of 6,798 shared

← Back to categories

87 items

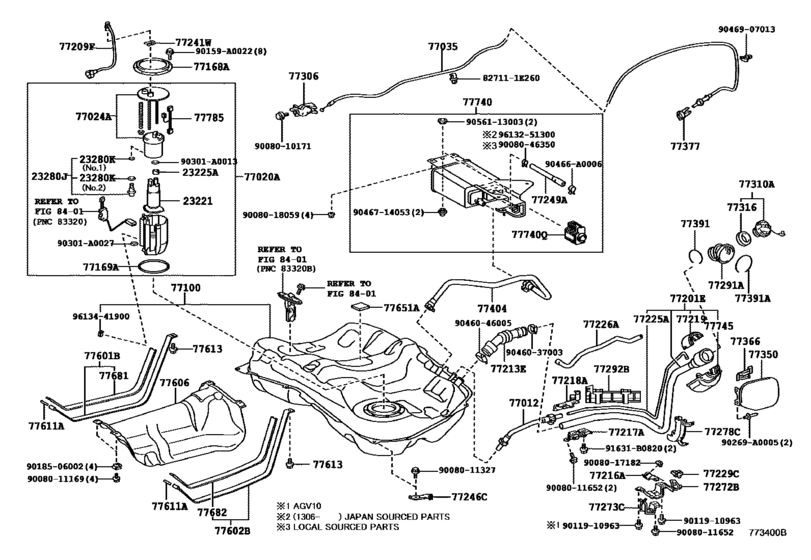

Fuel Tank & Tube ([03.2013 - ] FUEL TANK (1303- )) 87 / 87
AGV10 Fuel Tank & Tube ([03.2013 - ] FUEL TANK (1303- ))
AGV15 Fuel Tank & Tube ([03.2013 - ] FUEL TANK (1303- ))
# OEM AGV10 AGV15
23221 23220-0V011 Pump, Fuel Pump, Fuel
23225 23225-0V010 Spacer, Fuel Pump Spacer, Fuel Pump
23225 23225-21020 Spacer, Fuel Pump Spacer, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump) Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump) Ring, O(For Fuel Pump)
77012 77203-0T030 Tube Sub-Assy, Fuel Tank Breather Tube Sub-Assy, Fuel Tank Breather
77012 77203-0T031 Tube Sub-Assy, Fuel Tank Breather Tube Sub-Assy, Fuel Tank Breather
77020 77020-0T010 Tube Assy, Fuel Suction W/pump & Gage Tube Assy, Fuel Suction W/pump & Gage
77024 77024-0T010 Plate Sub-Assy, Fuel Suction Plate Sub-Assy, Fuel Suction
77035 77035-0T010 Cable Sub-Assy, Fuel Lid Lock Control Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-0T020 Tank Assy, Fuel Tank Assy, Fuel
77168 77168-52020 Plate, Fuel Tank Vent Tube Set Plate, Fuel Tank Vent Tube Set
77169 77169-52010 Gasket, Fuel Suction Tube Set Gasket, Fuel Suction Tube Set
77201 77201-0T020 Pipe Sub-Assy, Fuel Tank Filler Pipe Sub-Assy, Fuel Tank Filler
77201 77201-0T021 Pipe Sub-Assy, Fuel Tank Filler Pipe Sub-Assy, Fuel Tank Filler
77201 90119-10963 New Genuine Part New Genuine Part
77209 77209-0T010 Tube Sub-Assy, Fuel Tank Main Tube Sub-Assy, Fuel Tank Main
77213 77213-0T010 Hose, Fuel Tank To Filler Pipe Hose, Fuel Tank To Filler Pipe
77216 77216-0T010 Support, Fuel Tank Filler Pipe, No.1 Support, Fuel Tank Filler Pipe, No.1
77216 77216-0T011 Support, Fuel Tank Filler Pipe, No.1 Support, Fuel Tank Filler Pipe, No.1
77217 77217-0E020 Support, Fuel Tank Filler Pipe, No.2 Support, Fuel Tank Filler Pipe, No.2
77217 77217-0T010 Support, Fuel Tank Filler Pipe, No.2 Support, Fuel Tank Filler Pipe, No.2
77218 77218-0E020 Support, Fuel Tank Filler Pipe, No.3 Support, Fuel Tank Filler Pipe, No.3
77218 77218-0T010 Support, Fuel Tank Filler Pipe, No.3 Support, Fuel Tank Filler Pipe, No.3
77219 77219-0E010 Cover, Fuel Tank Filler Pipe Cover, Fuel Tank Filler Pipe
77225 77225-0T020 Tube, Fuel Tank Breather, No.5 Tube, Fuel Tank Breather, No.5
77226 77226-0T020 Tube, Fuel Tank Breather, No.6 Tube, Fuel Tank Breather, No.6
77229 77229-48030 Clamp, Breather Tube Clamp, Breather Tube
77241 77241-06020 Clip, Tube Joint Clip, Tube Joint
77246 77246-06010 Support, Fuel Main Tube Support, Fuel Main Tube
77246 77246-33020 Support, Fuel Main Tube Support, Fuel Main Tube
77249 77249-0T020 Hose, Fuel Emission Hose, Fuel Emission
77272 77272-0T020 Support, Breather Tube, No.1 Support, Breather Tube, No.1
77272 77272-0T021 Support, Breather Tube, No.1 Support, Breather Tube, No.1
77273 77273-0E010 Support, Breather Tube, No.2 Support, Breather Tube, No.2
77273 77273-0T010 Support, Breather Tube, No.2 Support, Breather Tube, No.2
77278 77278-48010 Protector, Fuel Tank Filler Pipe, No.2 Protector, Fuel Tank Filler Pipe, No.2
77291 77291-0T010 Shield, Fuel Tank Filler Pipe Shield, Fuel Tank Filler Pipe
77292 77292-0T010 Shield, Fuel Tank Drain Plug Shield, Fuel Tank Drain Plug
77306 77306-02021 Lever Sub-Assy, Fuel Lid Lock Open Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-52030 Cap Assy, Fuel Tank Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap Gasket, Fuel Tank Cap
77350 77350-0T010 Lid Assy, Fuel Filler Opening Lid Assy, Fuel Filler Opening
77366 77360-33030 Spring, Fuel Filler Opening Lid Hinge Spring, Fuel Filler Opening Lid Hinge
77377 77377-AA020 Retainer, Fuel Filler Opening Lid Lock Retainer, Fuel Filler Opening Lid Lock
77391 77391-02041 Ring, Fuel Inlet Box Ring, Fuel Inlet Box
77391 77391-06010 Ring, Fuel Inlet Box Ring, Fuel Inlet Box
77404 77404-0T020 Hose Sub-Assy, Fuel Tank Vent Hose Sub-Assy, Fuel Tank Vent
77601 77601-0T010 Band Sub-Assy, Fuel Tank, No.1 Rh Band Sub-Assy, Fuel Tank, No.1 Rh
77601 77601-0T012 Band Sub-Assy, Fuel Tank, No.1 Rh Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-0T010 Band Sub-Assy, Fuel Tank, No.1 Lh Band Sub-Assy, Fuel Tank, No.1 Lh
77602 77602-0T012 Band Sub-Assy, Fuel Tank, No.1 Lh Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-0T010 Protector Sub-Assy, Fuel Tank, No.1 Protector Sub-Assy, Fuel Tank, No.1
77611 90250-08019 Pin (For Fuel Tank Band) Pin (For Fuel Tank Band)
77613 90119-10971 Bolt, Fuel Tank Band Set Bolt, Fuel Tank Band Set
77613 90119-A0267 Bolt, Fuel Tank Band Set Bolt, Fuel Tank Band Set
77651 77651-20090 Cushion, Fuel Tank, No.1 Cushion, Fuel Tank, No.1
77681 77681-0T010 Seat, Fuel Tank Band, Rh Seat, Fuel Tank Band, Rh
77682 77682-0T010 Seat, Fuel Tank Band, Lh Seat, Fuel Tank Band, Lh
77740 77740-0T020 Canister Assy, Charcoal Canister Assy, Charcoal
77740 90910-AF004 Leak Detection Pump Sub-Assy, Charcoal Canister Leak Detection Pump Sub-Assy, Charcoal Canister
77740 90910-AF006 Leak Detection Pump Sub-Assy, Charcoal Canister Leak Detection Pump Sub-Assy, Charcoal Canister
77745 77745-0E010 Holder, Fuel Tank Filler Pipe Cover Holder, Fuel Tank Filler Pipe Cover
77785 77785-0R010 Harness, Fuel Pump Harness, Fuel Pump
90159 90159-A0022 SCREW WWASHER SCREW WWASHER
90269 90269-A0005 RIVET RIVET
90301 90301-A0013 Ring, O(For Fuel Pressure Regulator) Ring, O(For Fuel Pressure Regulator)
90301 90301-A0027 New Genuine Part New Genuine Part
90466 90466-A0006 New Genuine Part New Genuine Part
91631 91631-B0820 BOLT WWASHER BOLT WWASHER
9008010171 90080-10171 New Genuine Part New Genuine Part
9008011169 90080-11169 BOLT WWASHER BOLT WWASHER
9008011327 90080-11327 New Genuine Part New Genuine Part
9008011652 90080-11652 New Genuine Part New Genuine Part
9008017182 90080-17182 NUT FLANGE NUT FLANGE
9008018059 90080-18059 New Genuine Part New Genuine Part
9008046350 90080-46350 Clip(For Fuel Vapor Feed Hose) Clip(For Fuel Vapor Feed Hose)
9018506002 90185-06002 NUT CLIP NUT CLIP
9046037003 90460-37003 Clamp, Fuel Hose Clamp, Fuel Hose
9046046005 90460-46005 Clamp (For Fuel Filler Pipe) Clamp (For Fuel Filler Pipe)
9046714053 90467-14053 Clip, No.1(For Floor Under Cover) Clip, No.1(For Floor Under Cover)
9046907013 90469-07013 New Genuine Part New Genuine Part
9056113003 90561-13003 Clip, No.4(For Floor Under Cover) Clip, No.4(For Floor Under Cover)
9613251300 96132-51300 Clip(For Ventilation Hose No.2) Clip(For Ventilation Hose No.2)
9613441900 96134-41900 Clip Or Clamp(For Ventilation Hose) Clip Or Clamp(For Ventilation Hose)
9223372036854775807 82711-1E260 Clamp (For Fuel Lid Lock Control Cable) Clamp (For Fuel Lid Lock Control Cable)
