Search › Compare › ACR30 × ANH10
ACR30
Toyota ESTIMA-EMINA-LUCIDA — 21 of 6,221 shared
ANH10
Toyota ALPHARD-VELLFIRE — 21 of 6,301 shared

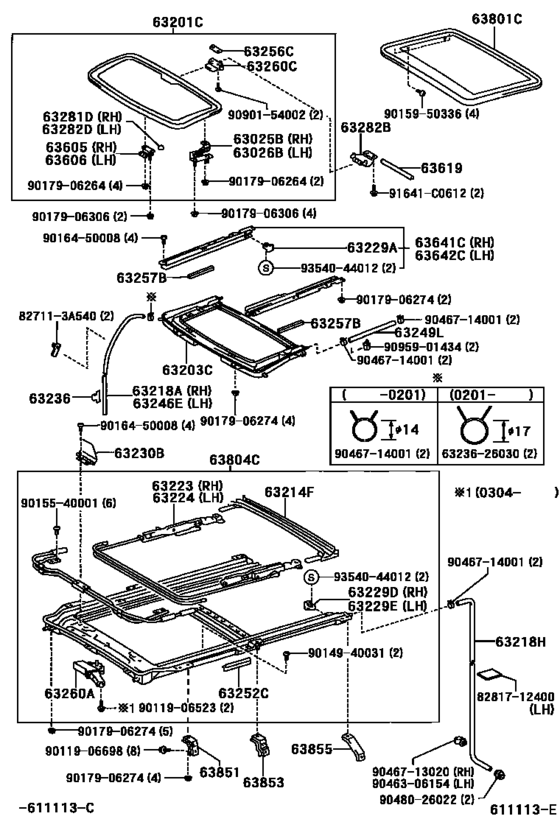

Roof Panel & Back Panel ([12.1999 - 04.2003] ﾑ-ﾝ ﾙ-ﾌ (9912-0304) ; (0304- )AERAS,AERSS,G,X) 21 / 77
| # | OEM | ACR30 | ANH10 |
|---|---|---|---|
| 63025 | 63025-28060 | Link Sub-Assy, Tilt Roof, Rh | Link Sub-Assy, Tilt Roof, Rh |
| 63026 | 63026-28060 | Link Sub-Assy, Tilt Roof, Lh | Link Sub-Assy, Tilt Roof, Lh |
| 63203 | 63203-28140 | Housing Sub-Assy, Tilt Roof | Housing Sub-Assy, Tilt Roof |
| 63249 | 63245-58010 | Hose, Sliding Roof Drain | Hose, Sliding Roof Drain |
| 63256 | 63256-44010 | Seal, Tilt Roof Glass | Seal, Tilt Roof Glass |
| 63257 | 63257-32010 | Seal, Sliding Roof | Seal, Sliding Roof |
| 63260 | 63260-26030 | Handle Assy, Removable Roof Lock | Handle Assy, Removable Roof Lock |
| 91641 | 91641-C0612 | New Genuine Part | New Genuine Part |
| 827113 | 82711-3A540 | Clamp, Sliding Roof Drain Hose | Clamp, Sliding Roof Drain Hose |
| 6323626030 | 63236-26030 | Clamp, Sliding Roof Drain Hose | Clamp, Sliding Roof Drain Hose |
| 8281712400 | 82817-12400 | Protector, Wiring Harness, No.1 | Protector, Wiring Harness, No.1 |
| 9015950336 | 90159-50336 | SCREW WWASHER | SCREW WWASHER |
| 9016450008 | 90164-50008 | SCREW | SCREW |
| 9017906264 | 90179-06264 | NUT, WWASHER | NUT, WWASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9046306154 | 90463-06154 | New Genuine Part | New Genuine Part |
| 9046713020 | 90467-13020 | Clamp Or Clip(For Radiator Reserve Tank Hose No.2) | Clamp Or Clip(For Radiator Reserve Tank Hose No.2) |
| 9046714001 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 9046714001 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 9048026022 | 90480-26022 | Grommet (For Cooler Unit) | Grommet (For Cooler Unit) |
| 9090154002 | 90901-54002 | New Genuine Part | New Genuine Part |
| # | OEM | ACR30 | ANH10 |
|---|---|---|---|
| 63025 | 63025-28060 | Link Sub-Assy, Tilt Roof, Rh | Link Sub-Assy, Tilt Roof, Rh |
| 63026 | 63026-28060 | Link Sub-Assy, Tilt Roof, Lh | Link Sub-Assy, Tilt Roof, Lh |
| 63203 | 63203-28140 | Housing Sub-Assy, Tilt Roof | Housing Sub-Assy, Tilt Roof |
| 6323626030 | 63236-26030 | Clamp, Sliding Roof Drain Hose | Clamp, Sliding Roof Drain Hose |
| 63249 | 63245-58010 | Hose, Sliding Roof Drain | Hose, Sliding Roof Drain |
| 63256 | 63256-44010 | Seal, Tilt Roof Glass | Seal, Tilt Roof Glass |
| 63257 | 63257-32010 | Seal, Sliding Roof | Seal, Sliding Roof |
| 63260 | 63260-26030 | Handle Assy, Removable Roof Lock | Handle Assy, Removable Roof Lock |
| 827113 | 82711-3A540 | Clamp, Sliding Roof Drain Hose | Clamp, Sliding Roof Drain Hose |
| 8281712400 | 82817-12400 | Protector, Wiring Harness, No.1 | Protector, Wiring Harness, No.1 |
| 9015950336 | 90159-50336 | SCREW WWASHER | SCREW WWASHER |
| 9016450008 | 90164-50008 | SCREW | SCREW |
| 9017906264 | 90179-06264 | NUT, WWASHER | NUT, WWASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9046306154 | 90463-06154 | New Genuine Part | New Genuine Part |
| 9046714001 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 9046713020 | 90467-13020 | Clamp Or Clip(For Radiator Reserve Tank Hose No.2) | Clamp Or Clip(For Radiator Reserve Tank Hose No.2) |
| 9046714001 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 88539 | 90480-26022 | Grommet (For Cooler Unit) | Grommet (For Cooler Unit) |
| 9090154002 | 90901-54002 | New Genuine Part | New Genuine Part |
| 91641 | 91641-C0612 | New Genuine Part | New Genuine Part |
