Search › Compare › ACR30 × ANH10
ACR30
Toyota ESTIMA-EMINA-LUCIDA — 22 of 6,221 shared
ANH10
Toyota ALPHARD-VELLFIRE — 22 of 6,301 shared

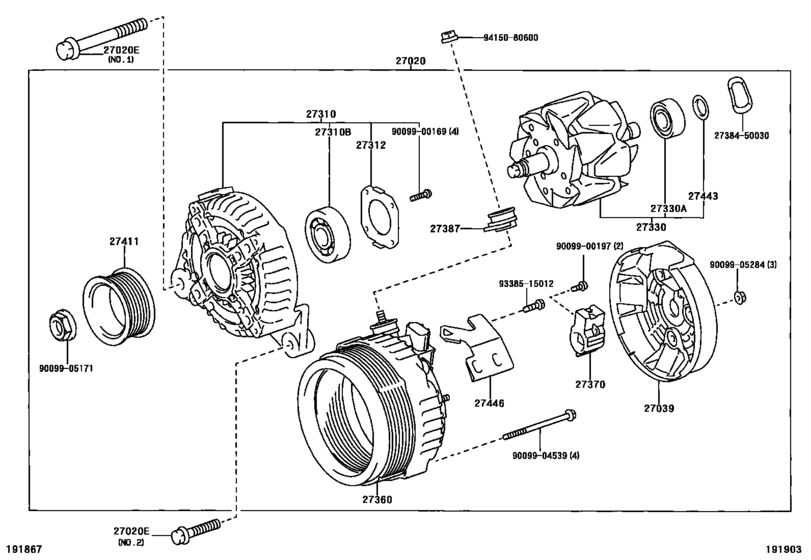

Alternator ([04.2003 - ] 12V 100A (0304- )2AZFE) 22 / 34
| # | OEM | ACR30 | ANH10 |
|---|---|---|---|
| 27020 | 91511-J0840 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91512-81085 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91551-80840 | Bolt(For Head To Camshaft Bearing Cap) | Bolt(For Head To Camshaft Bearing Cap) |
| 27020 | 91511-60840 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27039 | 27039-27060 | Cover, Alternator Rear End | Cover, Alternator Rear End |
| 27310 | 27310-28120 | Frame Assy, Drive End, Alternator | Frame Assy, Drive End, Alternator |
| 27310 | 90099-10142 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 27312 | 27312-72100 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27330 | 90099-10140 | Bearing(For Alternator Rotor) | Bearing(For Alternator Rotor) |
| 27370 | 27370-58460 | Holder Assy, Alternator Brush | Holder Assy, Alternator Brush |
| 27387 | 27387-20130 | Insulator, Terminal | Insulator, Terminal |
| 27411 | 27411-28060 | Pulley, Alternator | Pulley, Alternator |
| 27443 | 27443-63020 | Cover, Alternator Bearing | Cover, Alternator Bearing |
| 27446 | 27446-28120 | Clip, Alternator Cord | Clip, Alternator Cord |
| 2738450030 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 9009900169 | 90099-00169 | New Genuine Part | New Genuine Part |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009904539 | 90099-04539 | BOLT | BOLT |
| 9009905171 | 90099-05171 | Nut(For Alternator Pulley) | Nut(For Alternator Pulley) |
| 9009905284 | 90099-05284 | NUT | NUT |
| 9338515012 | 93385-15012 | SCREW | SCREW |
| 9415080600 | 94150-80600 | NUT FLANGE | NUT FLANGE |
| # | OEM | ACR30 | ANH10 |
|---|---|---|---|
| 27039 | 27039-27060 | Cover, Alternator Rear End | Cover, Alternator Rear End |
| 27310 | 27310-28120 | Frame Assy, Drive End, Alternator | Frame Assy, Drive End, Alternator |
| 27312 | 27312-72100 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27370 | 27370-58460 | Holder Assy, Alternator Brush | Holder Assy, Alternator Brush |
| 2738450030 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 27387 | 27387-20130 | Insulator, Terminal | Insulator, Terminal |
| 27411 | 27411-28060 | Pulley, Alternator | Pulley, Alternator |
| 27443 | 27443-63020 | Cover, Alternator Bearing | Cover, Alternator Bearing |
| 27446 | 27446-28120 | Clip, Alternator Cord | Clip, Alternator Cord |
| 9009900169 | 90099-00169 | New Genuine Part | New Genuine Part |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009904539 | 90099-04539 | BOLT | BOLT |
| 9009905171 | 90099-05171 | Nut(For Alternator Pulley) | Nut(For Alternator Pulley) |
| 9009905284 | 90099-05284 | NUT | NUT |
| 27330 | 90099-10140 | Bearing(For Alternator Rotor) | Bearing(For Alternator Rotor) |
| 27310 | 90099-10142 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 27020 | 91511-60840 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91511-J0840 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91512-81085 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91551-80840 | Bolt(For Head To Camshaft Bearing Cap) | Bolt(For Head To Camshaft Bearing Cap) |
| 9338515012 | 93385-15012 | SCREW | SCREW |
| 9415080600 | 94150-80600 | NUT FLANGE | NUT FLANGE |
