ACR30 × ACU30

Shared 14 / Total 10,960 · Jaccard 11.4%
ACR30 Toyota ESTIMA-EMINA-LUCIDA — 14 of 6,221 shared
ACU30 Toyota HARRIER — 14 of 5,987 shared

← Back to categories

14 items

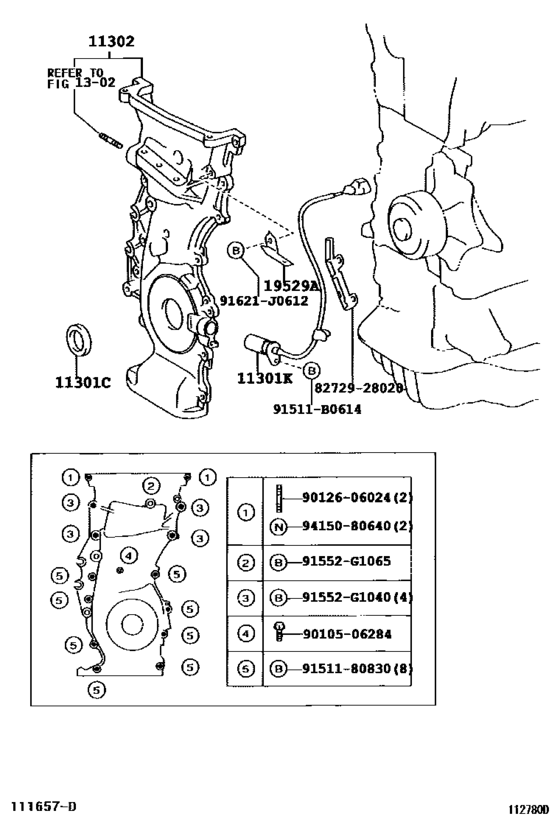

Timing Gear Cover & Rear End Plate ([02.2000 - ] (0002- )2AZFE) 14 / 17
ACR30 Timing Gear Cover & Rear End Plate ([02.2000 - ] (0002- )2AZFE)
ACU30 Timing Gear Cover & Rear End Plate ([02.2003 - ] (0302- )2AZFE)
# OEM ACR30 ACU30
11301 90311-38089 Seal, Oil(For Timing Gear Case Or Timing Chain Case) Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301 90919-05047 Sensor, Crank Position Sensor, Crank Position
11301 90311-38084 Seal, Oil(For Timing Gear Case Or Timing Chain Case) Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11302 11310-28070 Cover Sub-Assy, Timing Chain Or Belt Cover Sub-Assy, Timing Chain Or Belt
11302 11310-28071 Cover Sub-Assy, Timing Chain Or Belt Cover Sub-Assy, Timing Chain Or Belt
19529 19529-28010 Clamp Clamp
91511 91511-B0614 BOLT, FLANGE BOLT, FLANGE
91552 91552-G1040 BOLT FLANGE BOLT FLANGE
91552 91552-G1065 BOLT FLANGE BOLT FLANGE
91621 91621-J0612 BOLT W-WASHER BOLT W-WASHER
8272928020 82729-28020 New Genuine Part New Genuine Part
9010506284 90105-06284 New Genuine Part New Genuine Part
9151180830 91511-80830 Bolt(For Alternator) Bolt(For Alternator)
9415080640 94150-80640 NUT FLANGE NUT FLANGE
